Home > Transportation > Specialized Vehicle > Garbage Truck > DongFeng 4x2 Small Pickup Truck

DongFeng 4x2 Small Pickup Truck

DongFeng 4x2 Small Pickup Truck photo-1
US$ 22,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Drive Wheel:
4x2
Type:
Other, detachable container garbage truck
Payment & Shipping
Payment Methods:
Port of Shipment:
any port according to your requirement
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Drive Wheel 4x2
Type Other, detachable container garbage truck
Transmission Type Manual
Emission Standard Euro 4
Volume 6001 - 10000L
Fuel Type Diesel
Engine Capacity 3856ml
Size 6815*2080*2440mm
Gross Vehicle Weight 8275
Place of Origin Hubei, China
Brand Name dongfeng
Model Number CLW5080ZXXD4
After-sales Service Provided Engineers available to service machinery overseas

DongFeng 4x2 small pickup truck
Factory direct sale,best price
Certificate ISO9001,3C
diesel engine



dustbin can lift by the hydraulic system ,the garbage box is a hermetic box large capactiy easy control and operate



Specifications of the truck

Main specifications

Product model,name

CLW5080ZXXD4 Garbage Truck With Removable Box

Gross weight(Kg)

8275

Driving type

4×2

Payload (Kg)

4380

Overall dimension (mm)

5832100×2440

Curb weight(Kg)

3700

cab seats (man)

3

Approach/departure angle (°)

24/28

Front/rear hang(mm)

1210/820

Axle No.

2

Wheelbase (mm)

3800

Axle load(Kg)

3310/4965

Max speed(Km/h)

99

Chassis specifications

Chassis model

DFA1080SJ12D3

Manufacture

Dongfeng Automobile Company

Brand name

Dongfeng

Overall dimension (mm)

6815×2080×2440

Tire specification

7.50R16

Tires No.

6+1

Steel spring number

8/10+7,11/9+7

Front track(mm)

1770

Fuel type

Diesel

Rear track(mm)

1586

Emission standard

Euro 4

Gear box

5 forward

Engine model

Engine manufacture

displacement(ml)

Power(Kw)

CY4102-CE4C

Dongfeng chaoyang chaochai power company

3856

91

Performance

Body capacity()

6

Body material

Q235 carbon steel

Discharge Method

Rear dump

Operation control system

Manuel + electric

Characteristic

1,Detachable Container Garbage Truck also called pull arm garbage truck ;

2Using full hydraulic control , the operator can do the waste bin lifting, discharging

and dumping both in the driving room or out of the room, and all the operations can

 be performed by one driver in the cab;

3The truck compartment using fully enclosed design,there is no water leakage while

 transportationthat is avoid the secondary pollution problem, make it more environmental friendly;

4The truck can equipped with several garbage box, one truck can maintain multiple garbage

collection point operation, high efficiency.

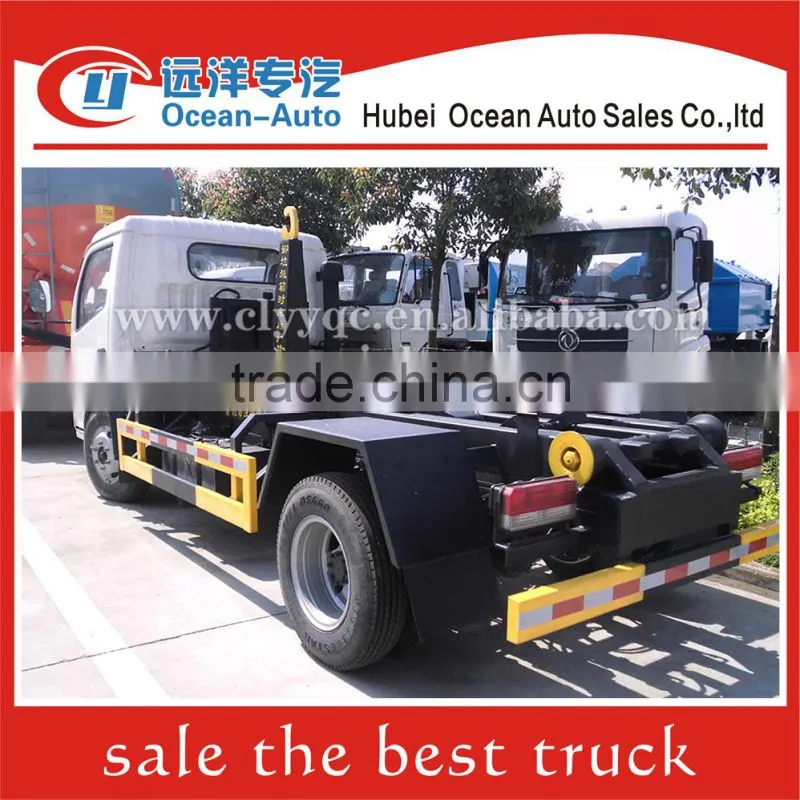

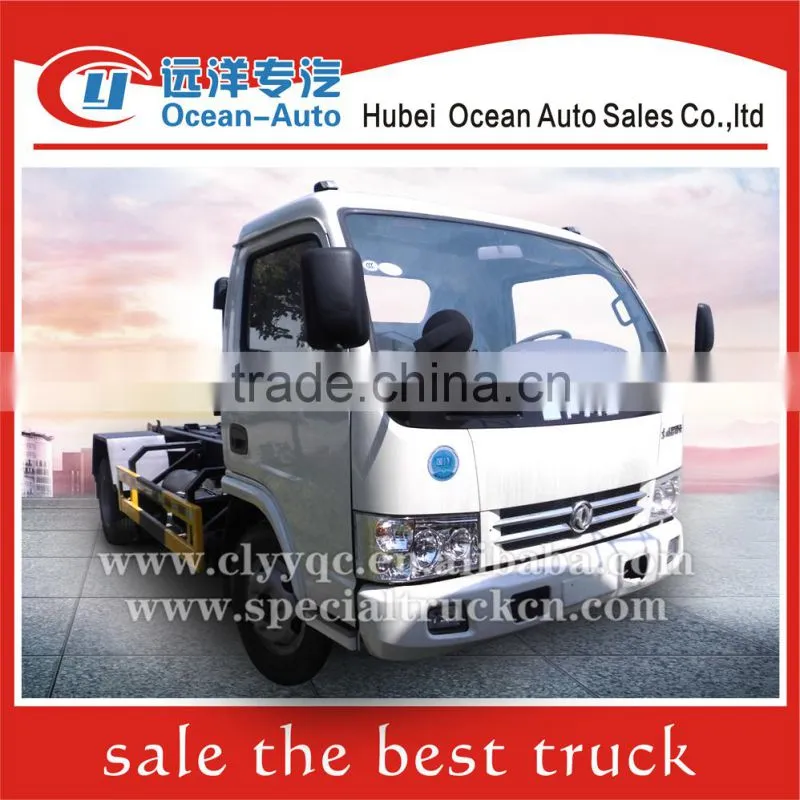

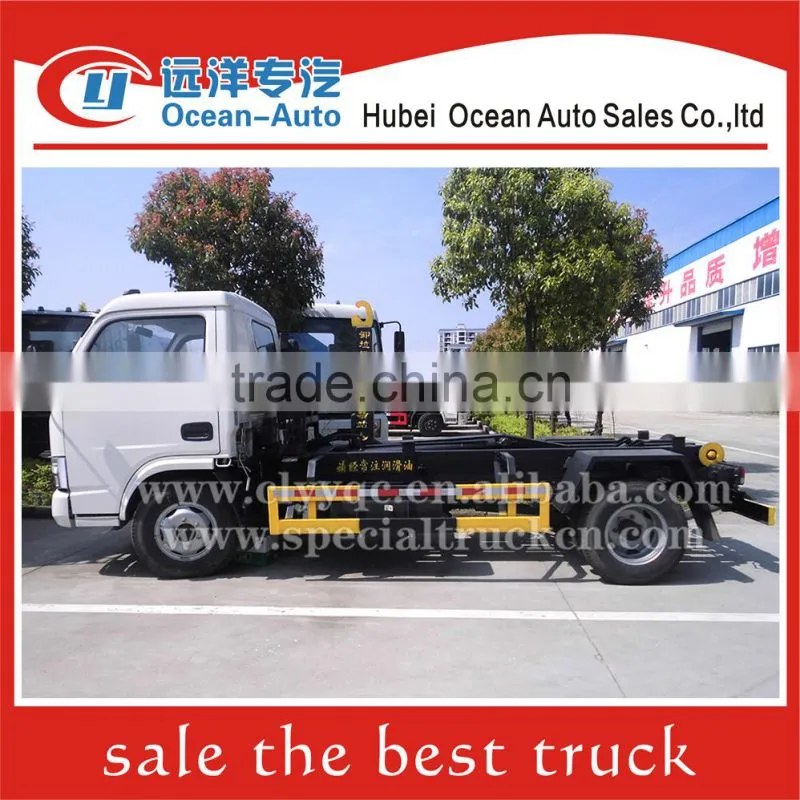

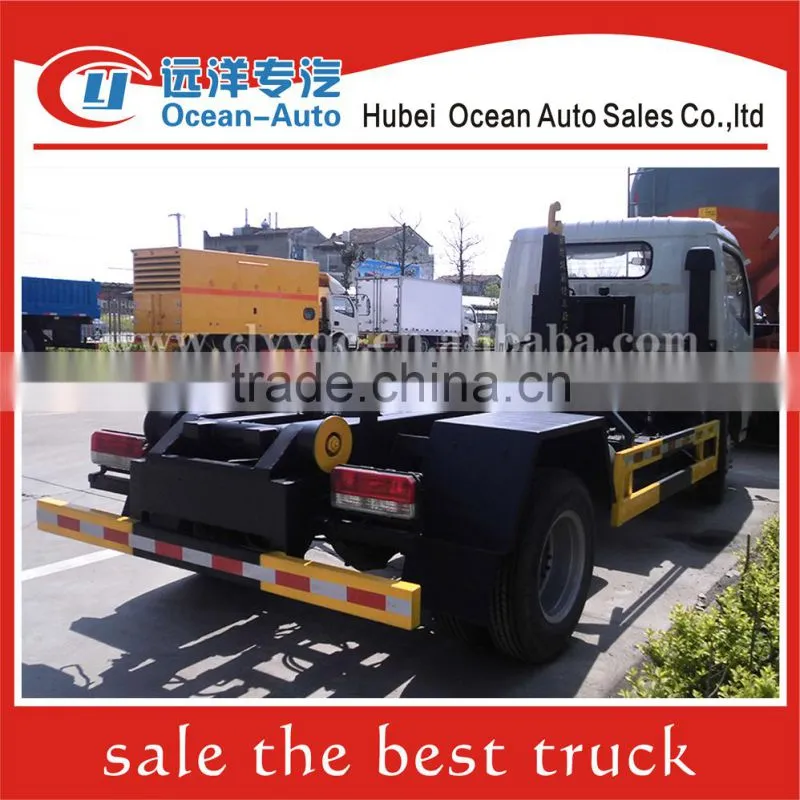

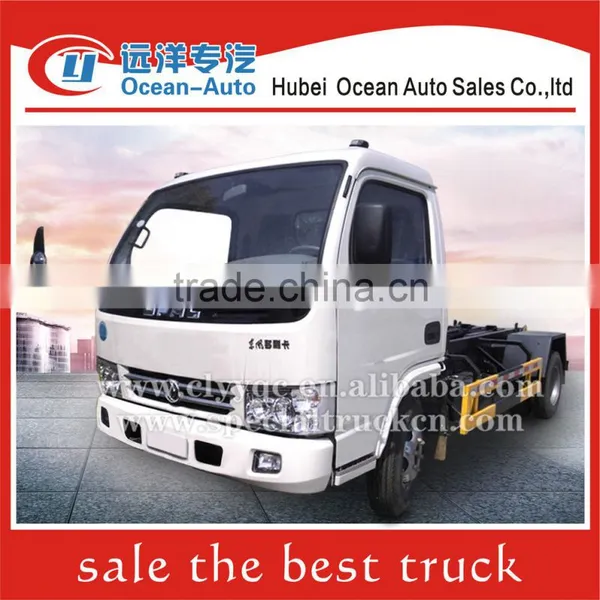

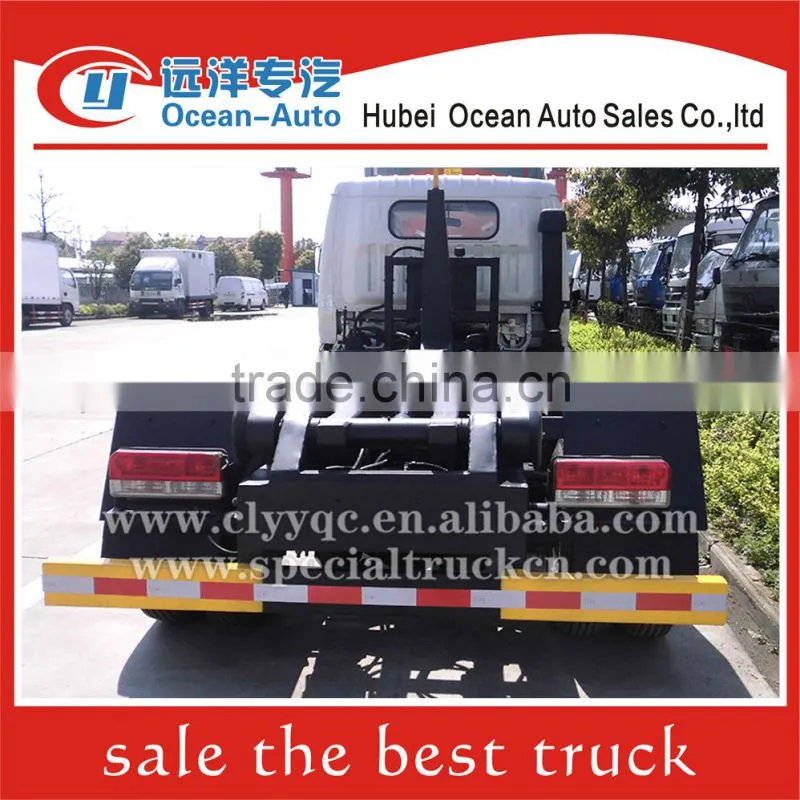

 Pictures of the truck

DongFeng 4x2 small pickup truckDongFeng 4x2 small pickup truckDongFeng 4x2 small pickup truckDongFeng 4x2 small pickup truckDongFeng 4x2 small pickup truck

 DongFeng 4x2 small pickup truckDongFeng 4x2 small pickup truckDongFeng 4x2 small pickup truckDongFeng 4x2 small pickup truck
