DongFeng 12m3 Garbage Skip Loader Truck

Name: DongFeng 12m3 Garbage Skip Loader Truck
Brand: dongfeng
SKU: 140782474
Availability: InStock

US$ 25,000 - 28,000 MOQ: 1 Set

Key Specifications

Condition:

New

Drive Wheel:

4x2

Type:

Other, detachable container garbage truck

Hubei Ocean Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port according to your requirement

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Drive Wheel 4x2

Type Other, detachable container garbage truck

Transmission Type Manual

Emission Standard Euro 3

Volume 10001 - 15000L

Fuel Type Diesel

Engine Capacity 5900ml

Size 7100*2470*2900mm

Gross Vehicle Weight 14490

Place of Origin Hubei, China

Brand Name dongfeng

Model Number CLW5140ZKXT3

After-sales Service Provided Engineers available to service machinery overseas

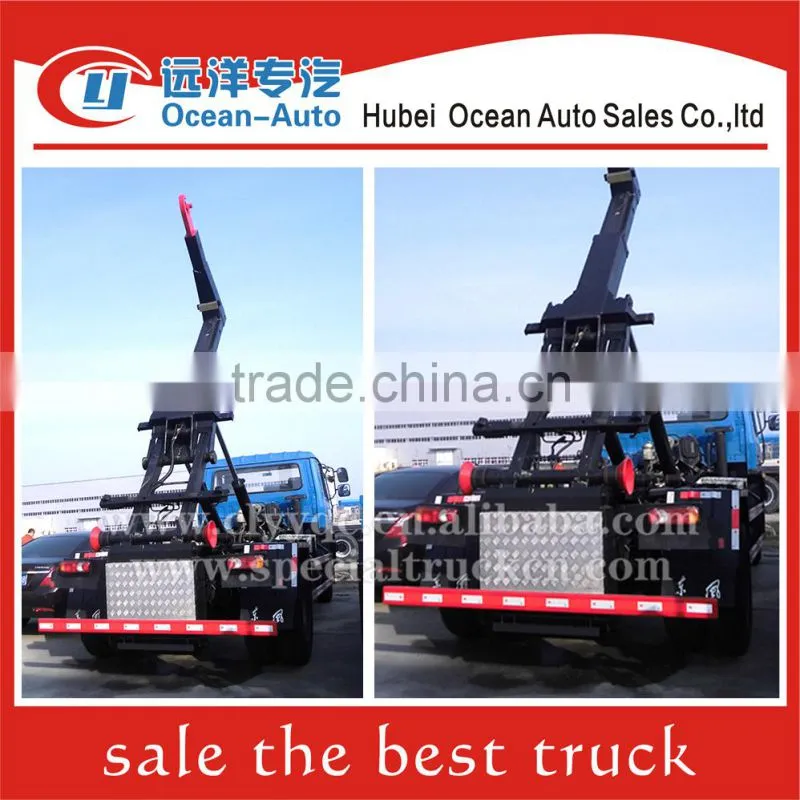

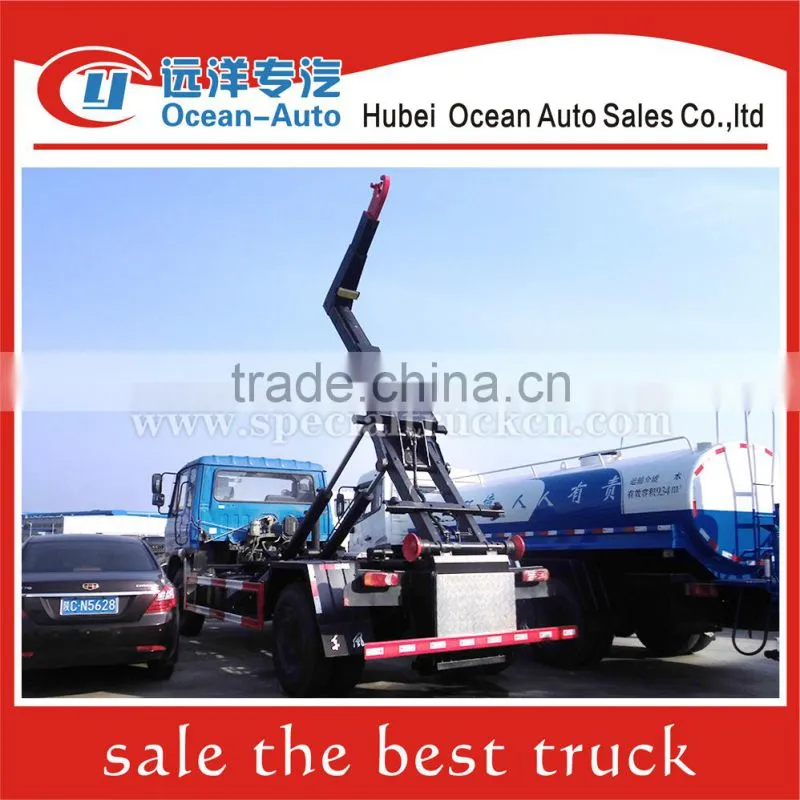

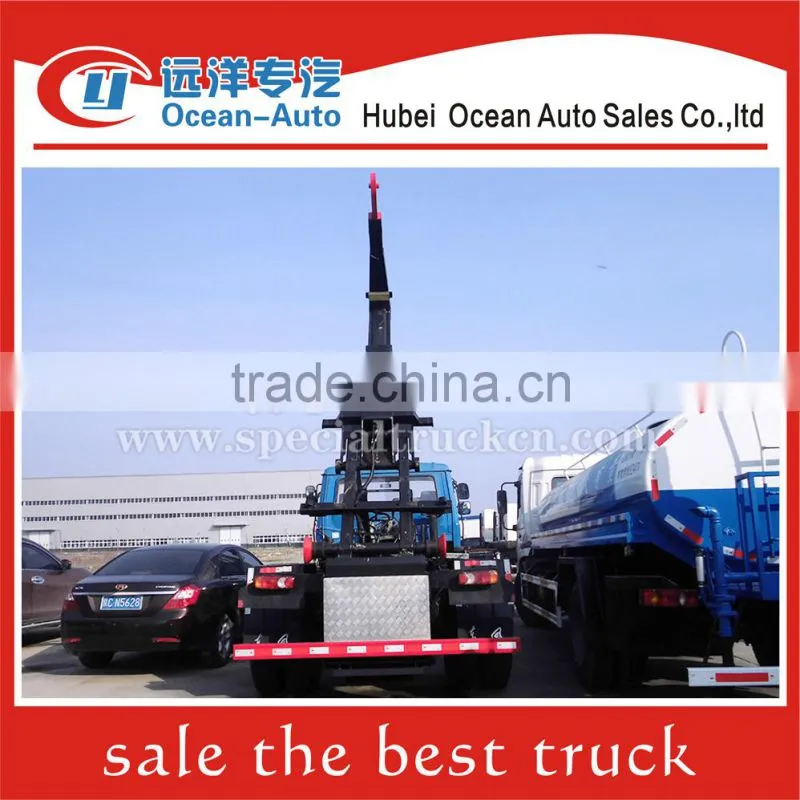

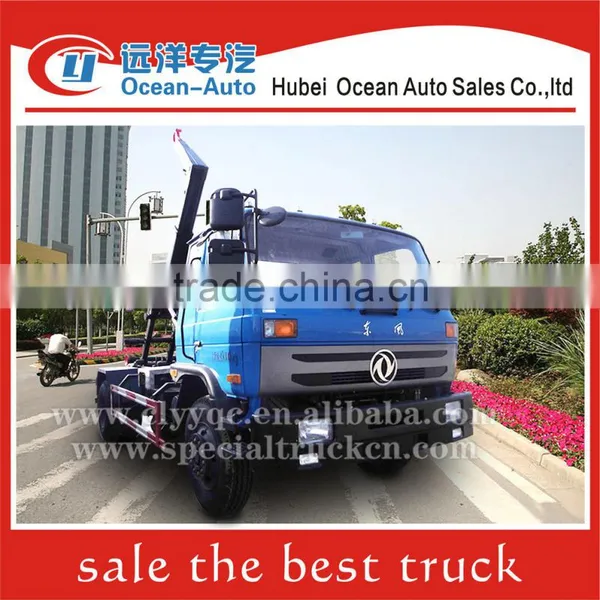

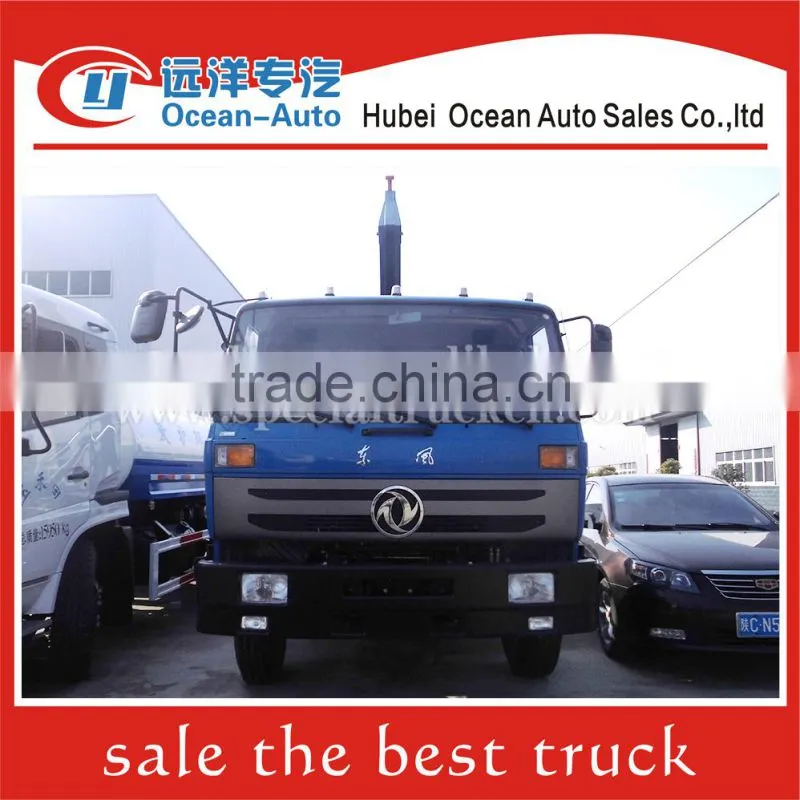

DongFeng 12m3 garbage skip loader truck
Factory direct sale,best price
Certificate ISO9001,3C
diesel engine

Specifications of the truck

Main specifications
Product model,name			CLW5140ZKXT3 Garbage Truck With Removable Box
Gross weight(Kg)			14490		Driving type			4×2
Payload (Kg)			7700		Overall dimension (mm)			7100×2470×2900
Curb weight(Kg)			6595		cab seats (man)			3
Approach/departure angle (°)			25/6		Front/rear hang(mm)			1250/1350
Axle No.			2		Wheelbase (mm)			4500
Axle load(Kg)			5120/9370		Max speed(Km/h)			85
Chassis specifications
Chassis model	EQ5140KLJ			Manufacture		Dongfeng Automobile Company
Brand name	Dongfeng			Overall dimension (mm)		7640×2470×2710
Tire specification	10.00-20			Tires No.		6+1
Steel spring number	8/10+8			Front track(mm)		1940
Fuel type	Diesel			Rear track(mm)		1860
Emission standard	Euro III			Gear box		8 forward
Engine model	Engine manufacture					displacement(ml)			Power(Kw)
B190 33	Dongfeng engine co.,ltd					5900			140
Performance
Body capacity(m³)		12		Box body material			Q235 carbon steel
Discharge Method		Rear dump		Operation control system			Manuel + electric
Characteristic
1,Detachable Container Garbage Truck also called pull arm garbage truck ; 2,Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab; 3,The truck compartment using fully enclosed design,there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly; 4,The truck can equipped with several garbage box, one truck can maintain multiple garbage collection point operation, high efficiency.
