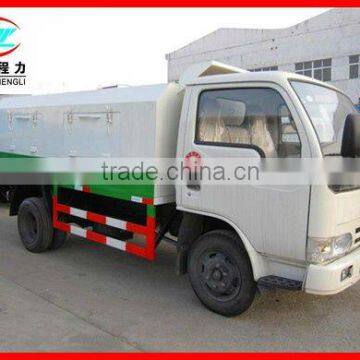

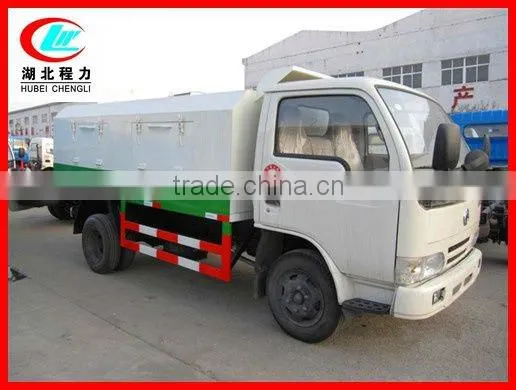

DFAC Sealed Garbage Truck
This truck is used to collect, transship and transport wastes. It is the new environmental sanitation truck for avoiding secondary pollution.
This kind of garbage truck is made of the chassis, cargo box, open-door structure, lifting structure, and electro-hydraulic control system.
It is mainly used to transporting the daily wastes, but sometimes it is also could be used to transport bulk construction materials, like ash, sand, stone, soil, etc, and carry ore and coal in mines.
Simple functional introduction about the sealed garbage truck:
The bucket could be separated with the truck body, and the truck could work with several buckets for circulation. It saves time and improves the truck transporting ability
Overall diemension(mm) |
5650×2000×2250 |
Gross weight(Kg) |
6495 |
Garbage box dimension(mm) |
3700×1850×1100 |
Rated loading capacity(Kg) |
2800,2865 |
Approach/departure angle(°) |
19/15 |
Curb weight(Kg) |
3500 |
Front/rear suspension(mm) |
1032/1318 |
Max speed(km/h) |
90 |
Chassis model |
EQ1060TJ20D3 |
Engine model |
CY4102-C3F |
Displacement |
3856cc |
Power |
70kw/95hp |
Fuel |
Diesel |
Emission standard |
Euro III |
Axle |
2 |
Tyre number |
6+1 |
Axle space(mm) |
3300 |
Tyre size |
7.00-16,6.50-16, 7.00R16,6.50R16 |
Axle load(kg) |
2550/3945 |
Front wheelbase(mm) |
1506 |
Leaf spring |
8/9+5,6/8+4 |
Rear wheelbase(mm) |
1466 |
Side wall thinckness (mm) |
3 |
Bottom thickness(mm) |
4 |
The picture and parameter mentioned above is only for reference. The specific product can be produced according to your order.
