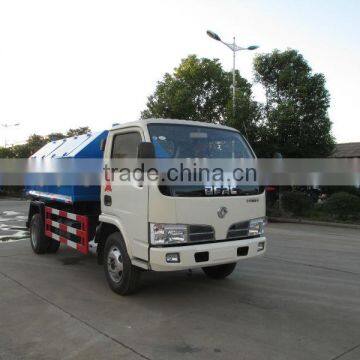

Garbage Dump Truck

Garbage Dump Truck photo-1
US$ 10,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Drive Wheel:
4x2
Type:
Other, dump
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Drive Wheel 4x2
Type Other, dump
Transmission Type Manual
Emission Standard Euro 3
Volume 3001 - 6000L
Fuel Type Diesel
Engine Capacity 5.9L
Size 7350x2470x2730
Gross Vehicle Weight 11495
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW5111ZZZT3

Specifications

1.dump truck also called tip truck.
2,dump the lading itself.
3,rear tipping and side tipping two kinds.
4,mutiple usage.

 specification of Dongfeng garbage dump truck :

Vehicle model

CLW5111ZZZT3 garbage dump trucks

Batch No.

229

Manufacturer

Hubei Chengli Special automobile Co. ,Ltd(china)

Brand name

CLW

Overall dimension(mm)

7350×2470×2730

Total weight(Kg)

11495

Body internal dimension(mm)

××

Rating load(Kg)

4500

Approach/departure angle

33/18

Curb weight(Kg)

6800

Front/rear hang(mm)

1250/2150

Max speed(km/h)

90

Chassis model

EQ1110GLJ





Engine model

Engine manufacturer

Emission

Power

B170 33

Dongfeng Cummins engine co,.Ltd.



5900



125

Fuel type

Diesel

Emission standard

Euro 3

Axle number

2

Tyre number

6

Wheelbase

3950

Tyre specification

9.00-20

Axle load

3500/7995

Front wheel distance

1900,1810

Leaf spring number

8/11+8

Rear wheel distance

1800

Remarks

The cab is optional by the chassis. Cab seats are 3.Correspondent with the rated load of 900,835.

Others

Protective material: Q235 carbon steel. Around the side and rear underrun protection are welded connection. The rear protective sectional dimensions (mm): 120 × 50 × 5. The rear protective ground clearance (mm): 540.
