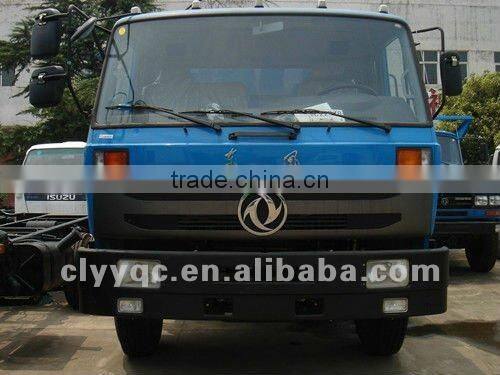

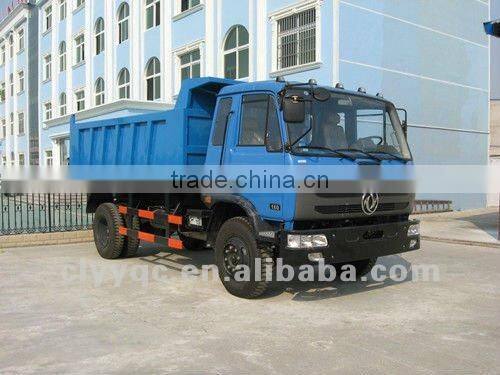

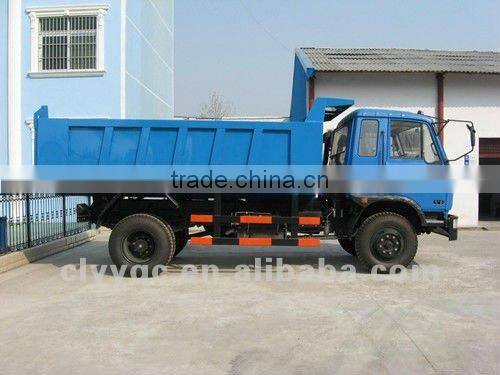

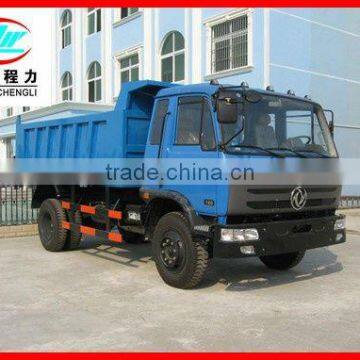

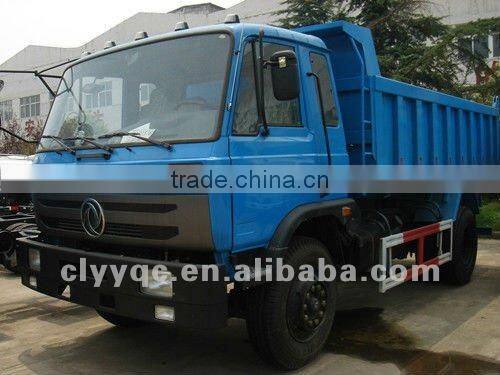

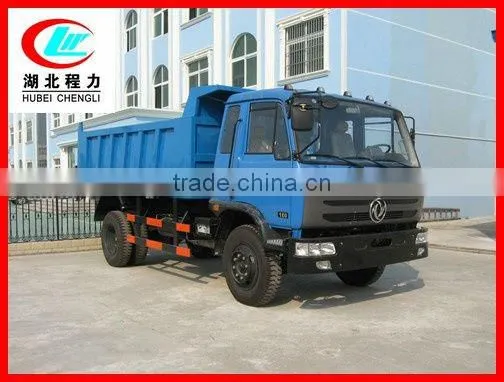

Dongfeng Garbage Truck Refuse Truck Waste Truck
This truck is used to collect, transport wastes. It is the new environmental sanitation truck for avoiding secondary pollution.
This kind of garbage truck is made of the chassis, cargo box, open-door structure, lifting structure,
and electro-hydraulic control system.
It is mainly used to transporting the daily wastes, but sometimes it is also could be used to transport bulk construction materials, like ash, sand, stone, soil, etc, and carry ore and coal in mines.
| 7 tons DongFeng 145 garbage truck | |||
| ITEM | PARAMETER | UNIT | DATA |
| Whole Vehicle | Vehicle Model | CLW5160zlj3 | |
| Overall Dimensions | mm | 7600*2495*3350 | |
| GVW | kg | 15990 approximate | |
| Curb Weight | 8795 approximate | ||
| Rated Load | 7000 approximate | ||
| Max Speed | km/h | 90 | |
| F/R track base | mm | 1940/1860 | |
| Front/Rear Hanging | 1250/2400 | ||
| Approach/Departure Angle | ° | 34/13 | |
| Leaf Spring | pcs | 9/11+8 | |
| Drive Wheel | 4*2 | ||
| Chassis Model | EQ1162GJAC | ||
| Wheel Base | mm | 3950 | |
| Tire Specification | inch | 9.00-20,10.00-20 | |
| Engine | No. of Tires | pcs | 6+1 spare |
| Engine Type | YC4E160-33 | ||
| Engine Horsepower | ps | 160 | |
| Displacement | ml | 4257 | |
| Gearbox | Emission Standrad | Euro3 | |
| Cab | Row | single | |
| Allowable Passenger | 3 | ||
The picture and parameter mentioned above is only for reference. The specific product can be produced according to your order.
We make the following products:
1. Water truck
2. Fuel tanker truck, Oil Truck, Tanker Truck
3. Fire engine truck
4. Truck mounted crane, crane truck
5. Dump truck, tipper, heavy duty truck
6. LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
6. Bulk cement truck
7. Concrete mixer truck, mixer truck, cement mixer truck
8. Garbage truck, Self-loading garbage truck, garbage compactor truck, sealed garbage truck
9. Fecal suction truck, sewage suction truck
10. High altitude working truck
11. Chemical liquid truck
12. Van truck, insulated truck, refrigeration truck
13. Semi Trailer, Low plate semi-trailer, oil semi-trailer, van semi-trailer, bulk cement transportation semi-trailer, container semi-trailer, chemical liquid semitrailer, etc more than 300 types in total.
