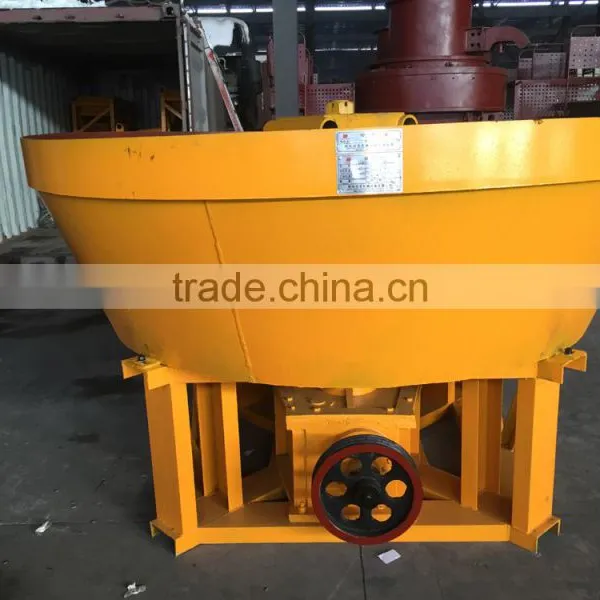

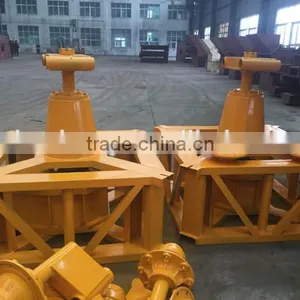

double wheel dressing machine ,wet pan mill ,golden wheel machine
- 100 Set / Sets per Month
- shanghai tianjin Application: The wet pan mill is a new mill small investment high yield the production cost is low gqingdao
- T/T D/P D/A Credit Card
- Sudan popular model placer gold wet grinding machine
- HUAHONG new type and good quality Lead edge runner wet pan mill to SUDAN
- Gold recovery wet pan, gold pan wet grinding mill machine, china wet pan mill
- Vietnam wet pan gold grinding machine/wet pan mill for sale
- double wheel dressing machine ,gold refining machine
- HUAHONG new model wet pan mill for gold,silver,copper,lead,zinc ore with use and maintance methods
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 6-15kw | Capacity(t/h): | 0.9-1.2 | Place of Origin: | Henan, China |
Brand Name: | huahong | Model Number: | 1200 | Dimension(L*W*H): | 1200*250*±20 |
Weight: | 5.5t | Certification: | ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard Container ,Nude packs or in bulk
Product Description
.
Advantages of wet pan mill
The operation and maintenance
1) The raw material should be put into the machine after the machine running normally.
2) This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
3) The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
4) The bearing part should be add butter regularly.
5) Every bolts should be checked to avoid flexible.
6) The bearing should be changed in time if it is damaged to avoid damage other parts.

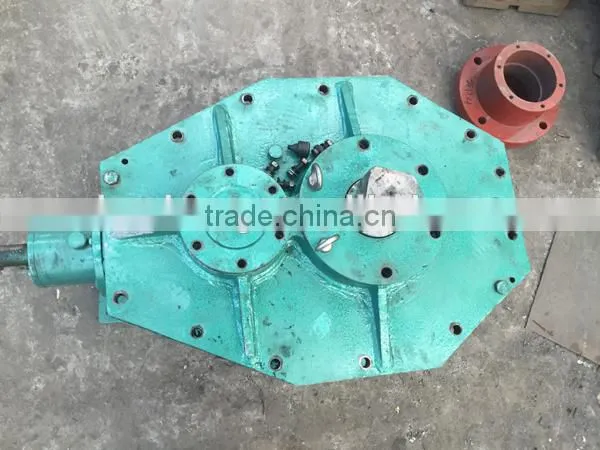

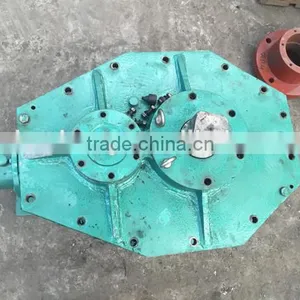

7) While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
8) The motor V-belt should be removed while examine and repair the machine for your safe.
our technical engineer will privod technical services in a year.
Model | Specification | Input size(mm) | Process ability (t/h) | Speed (r/min) | Motor (kw) | Weight (t) |
1600 | 1600×400×±20 | Less than 30mm | 4 | 20-22 | 6-30 | 17 |
1500A | 1500×400×±20 | 3 | 20-22 | 6-22 | 15 | |
1500B | 1500×350×±20 | 2.5-3 | 20-22 | 6-22 | 14 | |
1500C | 1500×300×±20 | 2-2.5 | 20-22 | 6-22 | 12.5 | |
1400 | 1400×250×±20 | 1.5-2 | 16-18 | 6-18.5 | 9.5 | |
1300 | 1300×250×±20 | 1.5 | 21-23 | 6-15 | 7.8 | |
1200A | 1200×220×±20 | 0.9-1.2 | 16-18 | 4-7.5 | 6.0 | |
1200B | 1200×200×±20 | 0.8-0.1 | 21-23 | 4-7.5 | 5.8 | |
1100 | 1100×200×±10 | 0.6-0.8 | 16-18 | 4-5.5 | 5.5 | |
1000 | 1000×200×±10 | 0.5 | 21-23 | 4-5.5 | 4.5 | |
900 | 900×150×±10 | 0.3 | 17-19 | 3kw | 3.2 |
Accories display of huahong wet pan mill
Part name: Grinding base Brand: Huahong Original: China
For model 1200, the thickness of grinding base is 120mm. The material could be high Mn and high Chrome.
PS: can increase height as customers' requests | |
Part name: Grinding roller Brand: Huahong Original: China
For model 1200 pan mill, the roller diameter is 1200mm, thickness is 220mm, weight is 1.5t/pcs. The smooth surface design will be good for the grinding efficiency. The material could be high Mn and high Chrome. | |

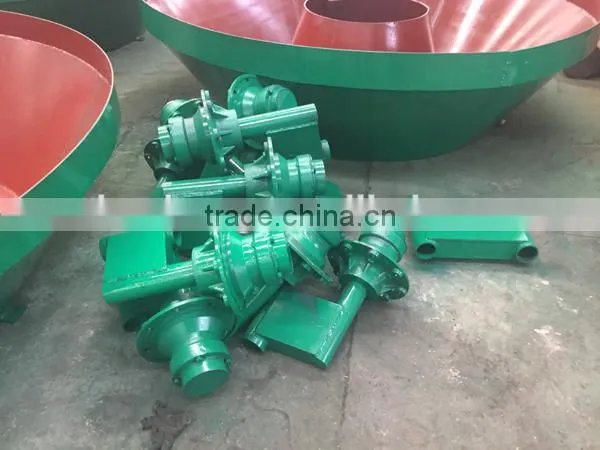

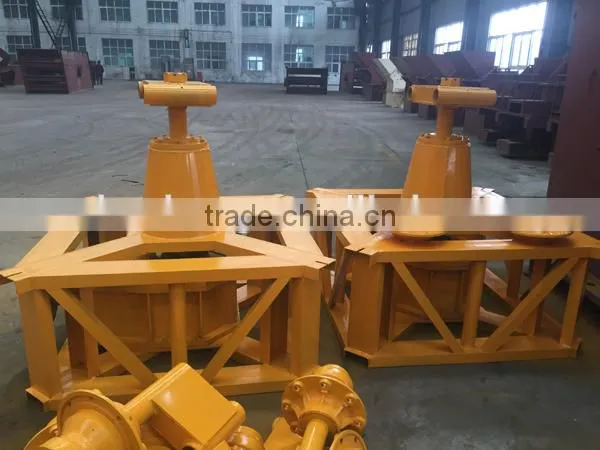

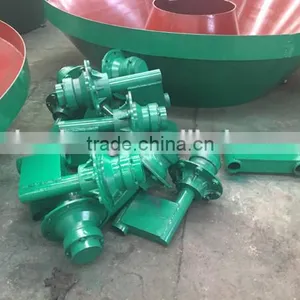

Part name: Roller connector Brand: Huahong Original: China
Our roller connector more stable
(PS: can send you one set roller connector freely if order 4 sets one time) | |
Part name: Electric motor Brand: Shengda, Kaifeng Original: China
Our electric motor enjoy 5 years warranty | |
Part name: Water pan Brand: Huahong Original: China
The edge of the water pan is specially processed with the edge protecting. our water pan thickness is 8mm. other factories nomal thickness is 3mm or 6mm. |

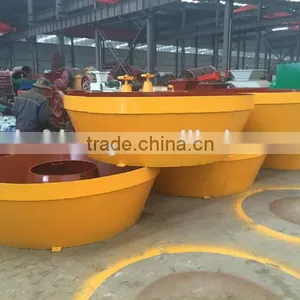

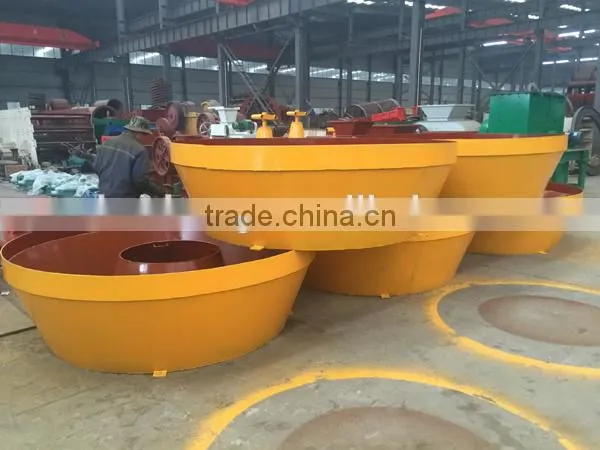

Working site of wet pan mill
Product Name | Production Line Capacity | Actual Units Produced(Previous Year) |
---|---|---|
Crusher | 600 Sets Per Year | confidential |
Ball Mill | 120 Sets Per Year | confidential |
Wet Pan Mill | 720 Sets Per Year | confidential |
Dryer | 120 Sets Per Year | confidential |
Vibrating Screen | 240 Sets Per Year | confidential |
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons.
Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment.
Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others.
Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others.
Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others.
Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others.
We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment.
We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques.
Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
