Help CenterDouble Wheel Dressing Machine ,gold Refining Machine
Related Products
-
HUAHONG New Model Wet Pan Mill for Gold,silver,copper,lead,zinc Ore With Use and Maintance MethodsUS$ 1 - 50,000MOQ: 1 Set -
Hot Selling in Egypt Wet Pan Mill for Gold, Double Wheel Dressing Gold Grinding MachineUS$ 4,000 - 4,500MOQ: 1 Set
-
CIQ Wet Pan Mill Double Wheel Dressing Gold Grinding Machine From ChinaUS$ 4,000 - 4,500MOQ: 1 Set
-
HUAHONG 2016 New Wet Pan Mill for Gold,silver,copper,lead,zinc Ore With Use and Maintance MethodsUS$ 1 - 50,000MOQ: 1 Set
-
HUAHONG Good Performance Gold Ore Grinding Machine,wet Pan Mill, With Durable Accessoties and Thickened Steel PlateUS$ 1 - 50,000MOQ: 1 Set
.
Advantages of wet pan mill
The operation and maintenance
1) The raw material should be put into the machine after the machine running normally.
2) This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
3) The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
4) The bearing part should be add butter regularly.
5) Every bolts should be checked to avoid flexible.
6) The bearing should be changed in time if it is damaged to avoid damage other parts.
7) While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
8) The motor V-belt should be removed while examine and repair the machine for your safe.
our technical engineer will privod technical services in a year.
Model |
Specification |
Input size(mm) |
Process ability (t/h) |
Speed (r/min) |
Motor (kw) |
Weight (t) |
1600 |
1600×400×±20 |
Less than 30mm |
4 |
20-22 |
6-30 |
17 |
1500A |
1500×400×±20 |
3 |
20-22 |
6-22 |
15 |
|
1500B |
1500×350×±20 |
2.5-3 |
20-22 |
6-22 |
14 |
|
1500C |
1500×300×±20 |
2-2.5 |
20-22 |
6-22 |
12.5 |
|
1400 |
1400×250×±20 |
1.5-2 |
16-18 |
6-18.5 |
9.5 |
|
1300 |
1300×250×±20 |
1.5 |
21-23 |
6-15 |
7.8 |
|
1200A |
1200×220×±20 |
0.9-1.2 |
16-18 |
4-7.5 |
6.0 |
|
1200B |
1200×200×±20 |
0.8-0.1 |
21-23 |
4-7.5 |
5.8 |
|
1100 |
1100×200×±10 |
0.6-0.8 |
16-18 |
4-5.5 |
5.5 |
|
1000 |
1000×200×±10 |
0.5 |
21-23 |
4-5.5 |
4.5 |
|
900 |
900×150×±10 |
0.3 |
17-19 |
3kw |
3.2 |
Accories display of huahong wet pan mill
|

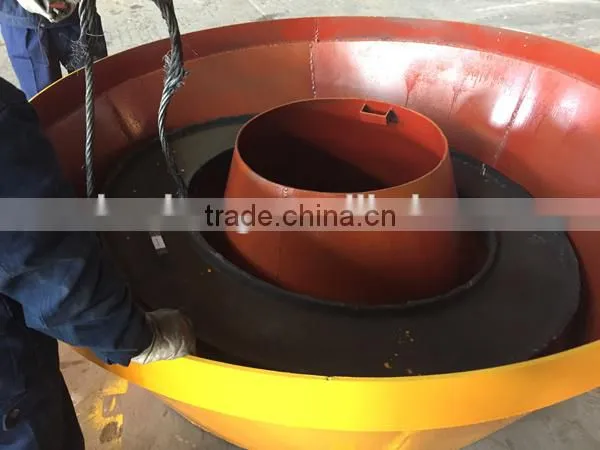

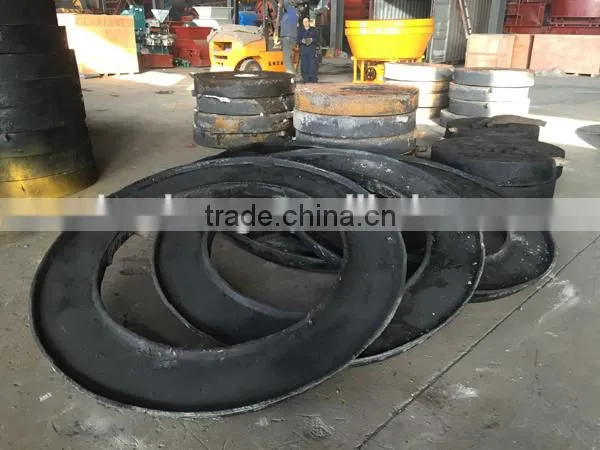

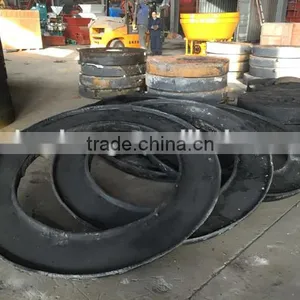

Part name: Grinding base Brand: Huahong Original: China
For model 1200, the thickness of grinding base is 120mm. The material could be high Mn and high Chrome.
PS: can increase height as customers' requests |
|

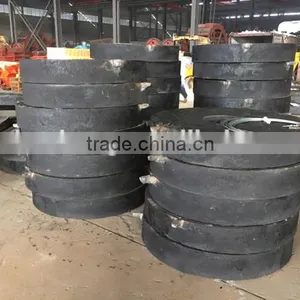

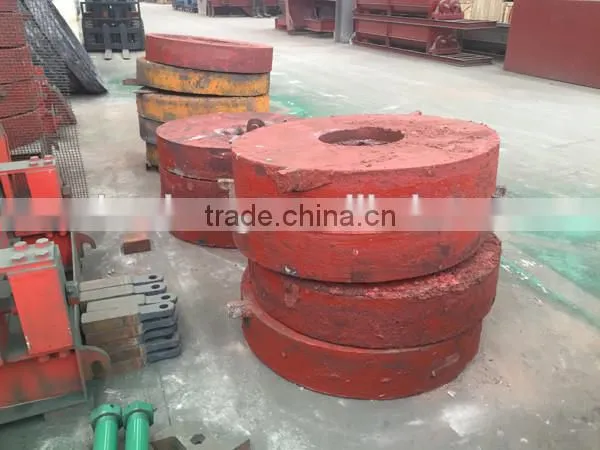

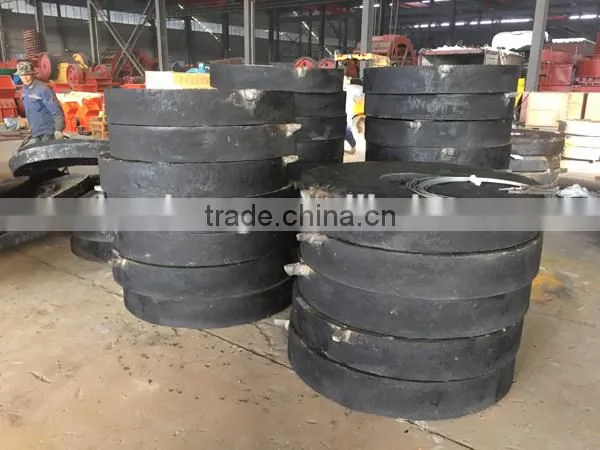

Part name: Grinding roller Brand: Huahong Original: China
For model 1200 pan mill, the roller diameter is 1200mm, thickness is 220mm, weight is 1.5t/pcs. The smooth surface design will be good for the grinding efficiency. The material could be high Mn and high Chrome. |
|
|

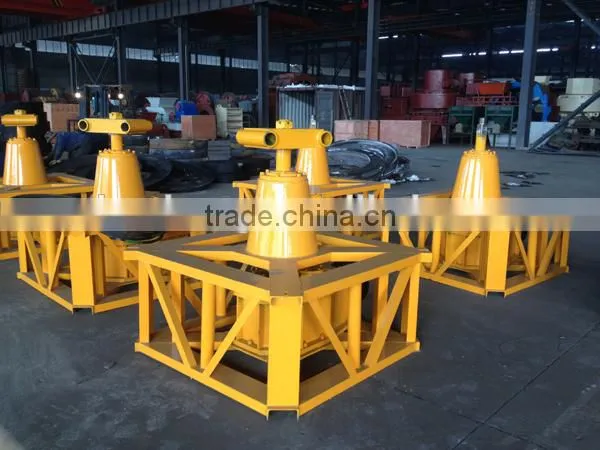

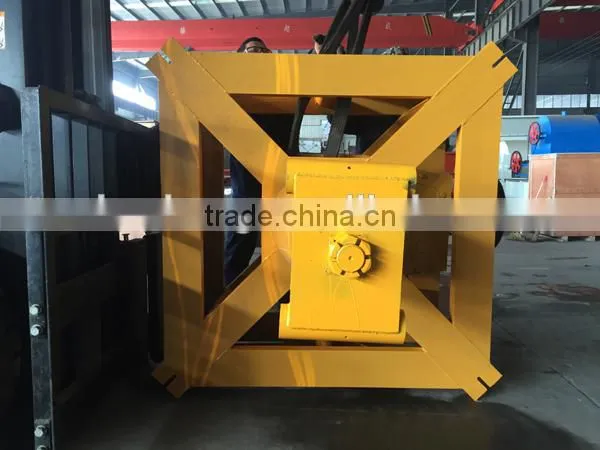

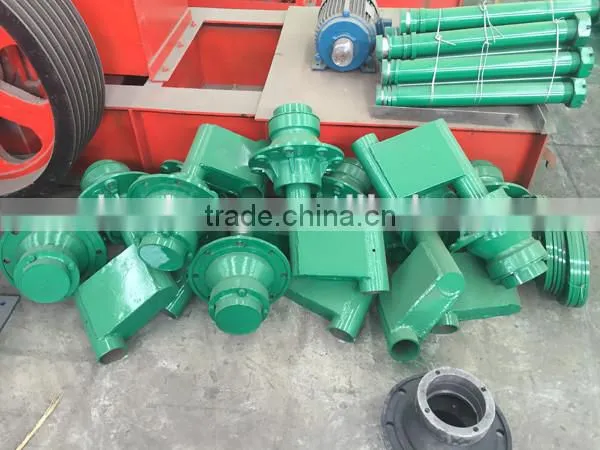

Part name: Roller connector Brand: Huahong Original: China
Our roller connector more stable
(PS: can send you one set roller connector freely if order 4 sets one time) |
|

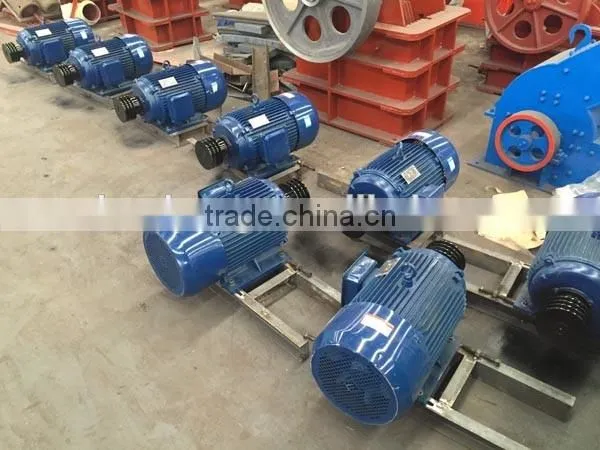

Part name: Electric motor Brand: Shengda, Kaifeng Original: China
Our electric motor enjoy 5 years warranty |
|
|

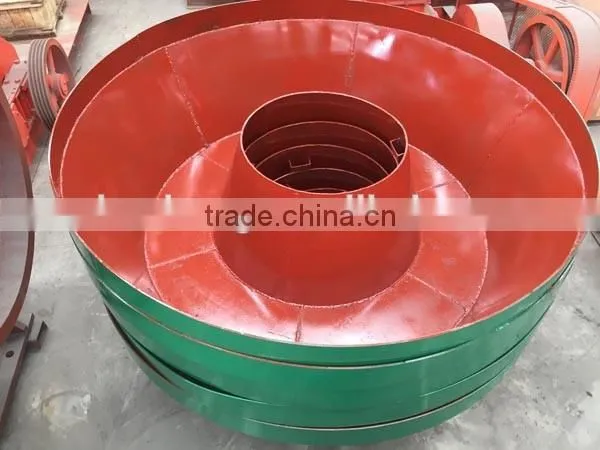

Part name: Water pan Brand: Huahong Original: China
The edge of the water pan is specially processed with the edge protecting. our water pan thickness is 8mm. other factories nomal thickness is 3mm or 6mm. |
Working site of wet pan mill
| Product Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Crusher | 600 Sets Per Year | confidential |
| Ball Mill | 120 Sets Per Year | confidential |
| Wet Pan Mill | 720 Sets Per Year | confidential |
| Dryer | 120 Sets Per Year | confidential |
| Vibrating Screen | 240 Sets Per Year | confidential |
