| Name | wet pan mill |
| feature | Reduce the loss of mineral powder, so that resources can be fully utilized |
| Application | separate Gold, silver, lead, zinc, iron, molybdenum, copper, antimony ore, etc |
| working priciple | Grind gold machine mainly for raw materials by stirring, rolling, crushing, rolling after repeated water reaches equilibrium, the ratio of uniform, low gas content, increase the rate of forming and shaping the quality of the material through the machine grinding molding products, With high density, good strength, non-stomatal ratio and so on. High efficiency, high output, the product is used in iron ore tailings for recycling process, not to the loss of slag, so that effective resources can be fully utilized |
| working way | Grind gold machine in the election prime sorting methods and processes -1. grind gold machine after the installation is completed to grind gold machine bottom added about 5 kg of mercury began to work. 2 .charged once per shift Sands, in the shift added 1 kg of mercury charged grind bottom Sands and mercury, the mercury Sheng received gold instruments, the use of relatively high density of red cloth wrung mercury to the package, open the red cloth Sands is left inside. 3. each class starts to add one kilogram of mercury on it. Comprising a grasping cloth of gold or gold carpet caught behind and put on the board of mercury can collect the gold. |
| Advantages |
1. grinding wheels and grinding base are made of high manganese steel. it is very hard and rigid, using life will be doubled
2. 6 phases motor, can reduce energy consumption
3. easy installation and maintenance, small investment, high yield, quick, low-cost production,
|
The operation and maintenance
1) The raw material should be put into the machine after the machine running normally.
2) This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
3) The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
4) The bearing part should be add butter regularly.
5) Every bolts should be checked to avoid flexible.
6) The bearing should be changed in time if it is damaged to avoid damage other parts.
7) While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
8) The motor V-belt should be removed while examine and repair the machine for your safe.
our technical engineer will privod technical services in a year.
Model |
Specification |
Input size(mm) |
Process ability (t/h) |
Speed (r/min) |
Motor (kw) |
Weight (t) |
1600 |
1600×400×±20 |
Less than 30mm |
4 |
20-22 |
6-30 |
17 |
1500A |
1500×400×±20 |
3 |
20-22 |
6-22 |
15 |
|
1500B |
1500×350×±20 |
2.5-3 |
20-22 |
6-22 |
14 |
|
1500C |
1500×300×±20 |
2-2.5 |
20-22 |
6-22 |
12.5 |
|
1400 |
1400×250×±20 |
1.5-2 |
16-18 |
6-18.5 |
9.5 |
|
1300 |
1300×250×±20 |
1.5 |
21-23 |
6-15 |
7.8 |
|
1200A |
1200×220×±20 |
0.9-1.2 |
16-18 |
4-7.5 |
6.0 |
|
1200B |
1200×200×±20 |
0.8-0.1 |
21-23 |
4-7.5 |
5.8 |
|
1100 |
1100×200×±10 |
0.6-0.8 |
16-18 |
4-5.5 |
5.5 |
|
1000 |
1000×200×±10 |
0.5 |
21-23 |
4-5.5 |
4.5 |
|
900 |
900×150×±10 |
0.3 |
17-19 |
3kw |
3.2 |
Accories display of huahong wet pan mill
|

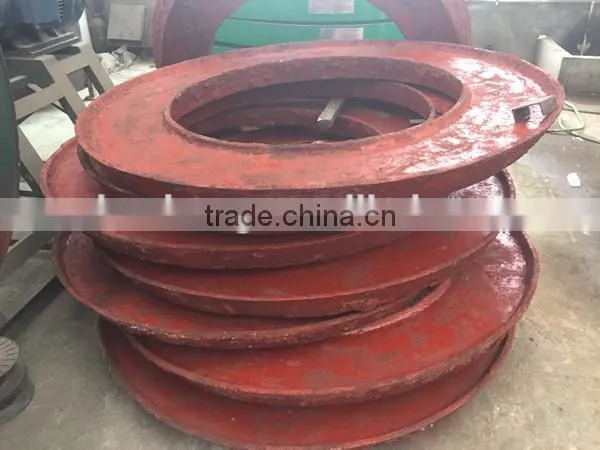

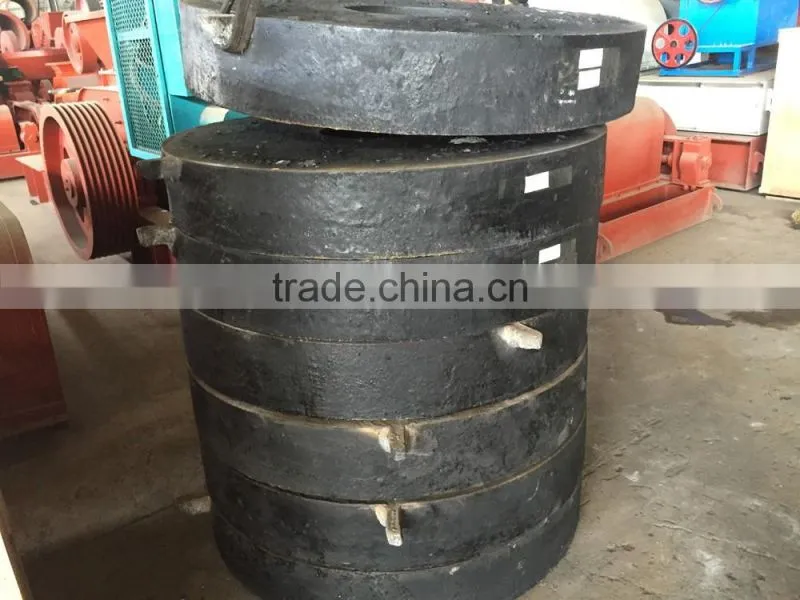

Part name: Grinding base Brand: Huahong Original: China
For model 1200, the thickness of grinding base is 120mm. The material could be high Mn and high Chrome.
PS: can increase height as customers' requests |
|

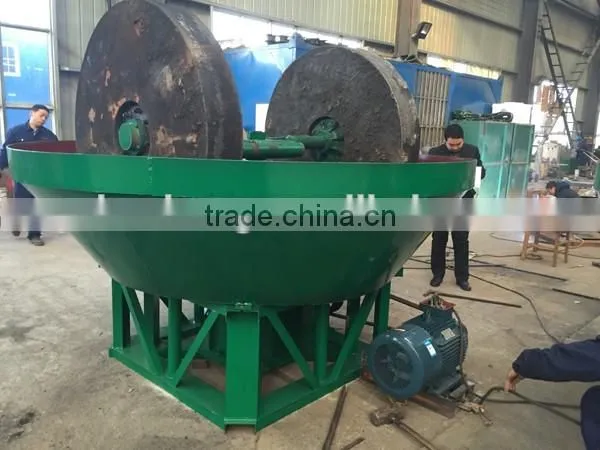

Part name: Grinding roller Brand: Huahong Original: China
For model 1200 pan mill, the roller diameter is 1200mm, thickness is 220mm, weight is 1.5t/pcs. The smooth surface design will be good for the grinding efficiency. The material could be high Mn and high Chrome. |
|
|
Part name: Roller connector Brand: Huahong Original: China
Our roller connector more stable
(PS: can send you one set roller connector freely if order 4 sets one time) |
|

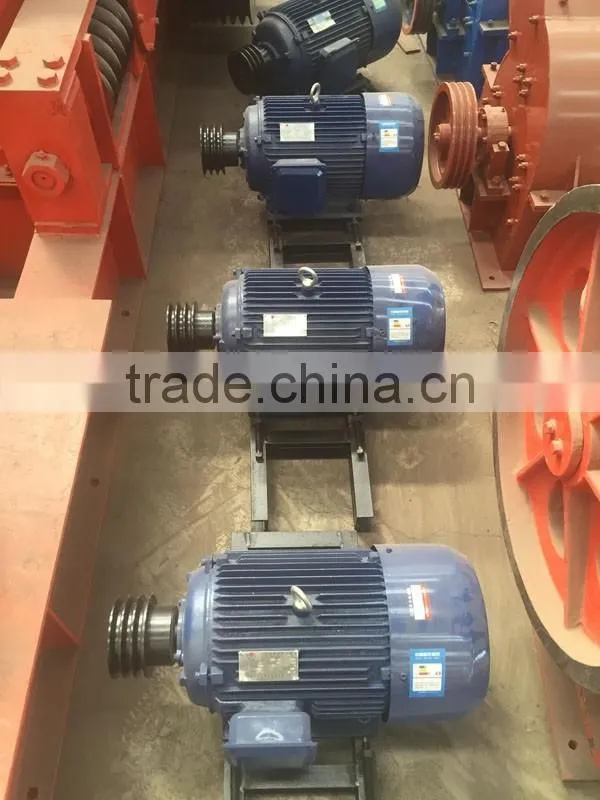

Part name: Electric motor Brand: Shengda, Kaifeng Original: China
Our electric motor enjoy 5 years warranty |
|
|

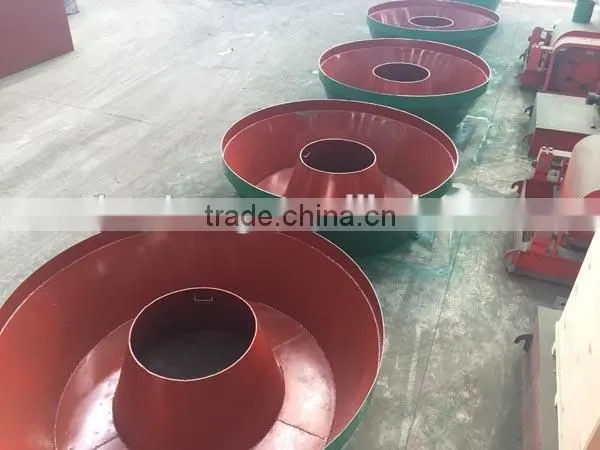

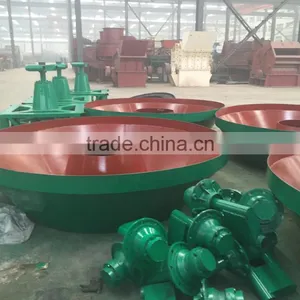

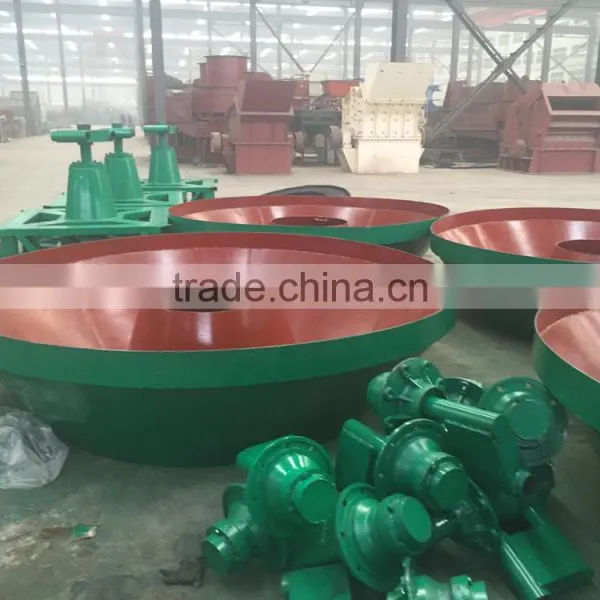

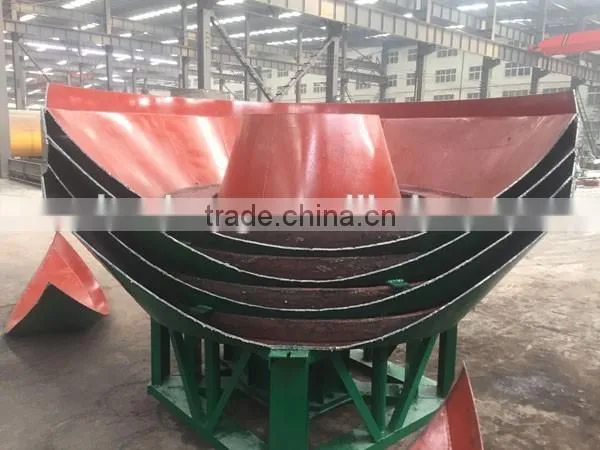

Part name: Water pan Brand: Huahong Original: China
The edge of the water pan is specially processed with the edge protecting. our water pan thickness is 8mm. other factories nomal thickness is 3mm or 6mm. |
| Product Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Crusher | 600 Sets Per Year | confidential |
| Ball Mill | 120 Sets Per Year | confidential |
| Wet Pan Mill | 720 Sets Per Year | confidential |
| Dryer | 120 Sets Per Year | confidential |
| Vibrating Screen | 240 Sets Per Year | confidential |
1. Are you a trading company or a manufacturer?
We are a manufacturer.
2. How can I get to your company?
You can get a flight to Zhengzhou Xinzheng International Airport . and we can go to airport to pick you up directly.
All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!
3. How long is your guarantee?
One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support
you when needed. You will be welcome to contact us with any problem may happened.
4. Will you send engineers to install the plant?
yes, but at an extra cost payable by the customer. Or you can get local contractors to do thecommissioning and we send one supervising engineer.
