US$ 1,000 - 4,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai tianjin Application: The wet pan mill is a new mill small investment high yield the production cost is low gqingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 6-15kw
Capacity(t/h) 0.9-1.2
Place of Origin Henan, China
Brand Name huahong
Model Number 1200
Dimension(L*W*H) 1200*250*±20
Weight 5.5t
Certification ISO,CIQ ,CE ,
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

.



Advantages of wet pan mill

1. grinding wheels and grinding base are made of high manganese steel. it is very hard and rigid, using life will be doubled
2. 6 phases motor, can reduce energy consumption
3. easy installation and maintenance, small investment, high yield, quick, low-cost production,

 wet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimonywet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimonywet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimonywet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimony

The operation and maintenance



1) The raw material should be put into the machine after the machine running normally.

2) This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.

3) The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.

4) The bearing part should be add butter regularly.

5) Every bolts should be checked to avoid flexible.

6) The bearing should be changed in time if it is damaged to avoid damage other parts.

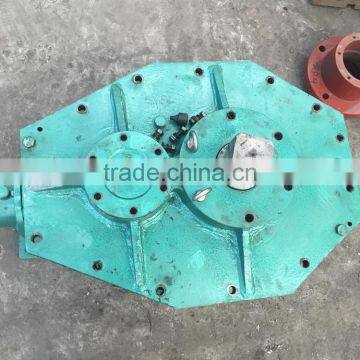

7) While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.

8) The motor V-belt should be removed while examine and repair the machine for your safe.

 our technical engineer will privod technical services in a year.



Model

Specification

    Input size(mm)

Process ability

     (t/h)

Speed

(r/min)

Motor

(kw)

Weight

   (t)

1600

1600×400×±20

 Less than 30mm

4

20-22

6-30

17

1500A

1500×400×±20

3

20-22

6-22

15

1500B

1500×350×±20

2.5-3

20-22

6-22

14

1500C

1500×300×±20

2-2.5

20-22

6-22

12.5

1400

1400×250×±20

1.5-2

16-18

6-18.5

9.5

1300

1300×250×±20

1.5

21-23

6-15

7.8

1200A

1200×220×±20

0.9-1.2

16-18

4-7.5

6.0

1200B

1200×200×±20

0.8-0.1

21-23

4-7.5

5.8

1100

1100×200×±10

0.6-0.8

16-18

4-5.5

5.5

1000

1000×200×±10

0.5

21-23

4-5.5

4.5

900

900×150×±10

0.3

17-19

  3kw

3.2





Accories display of huahong wet pan mill

wet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimony

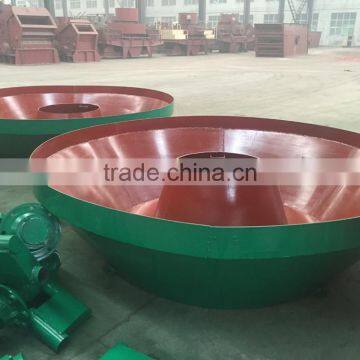

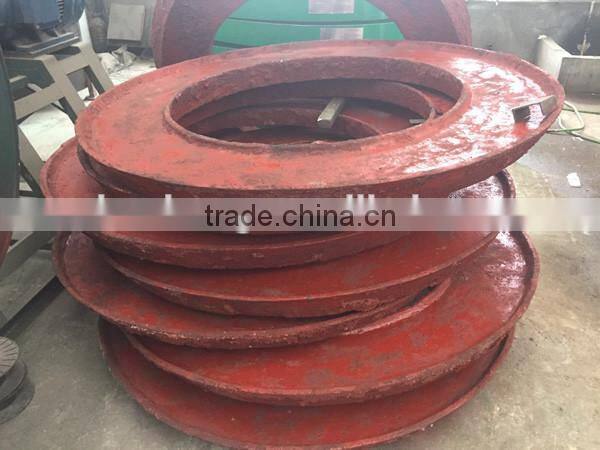

Part name: Grinding base

Brand: Huahong

Original: China



For model 1200, the thickness of grinding base is 120mm.

The material could be high Mn and high Chrome.



PS: can increase height as customers' requests

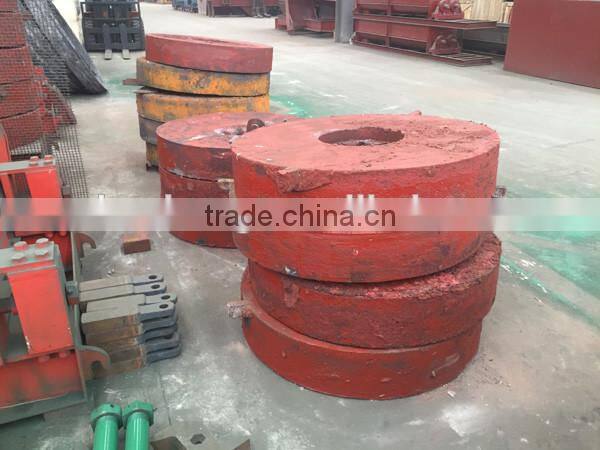

Part name: Grinding roller

Brand: Huahong

Original: China



For model 1200 pan mill, the roller diameter is 1200mm, thickness is 220mm, weight is 1.5t/pcs.

The smooth surface design will be good for the grinding efficiency.

The material could be high Mn and high Chrome.

 wet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimony
wet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimony

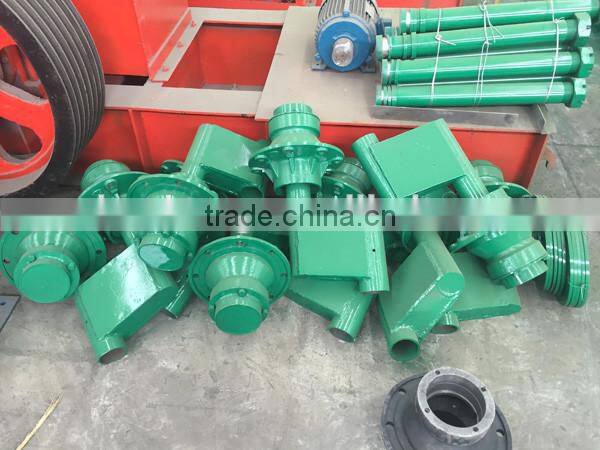

Part name: Roller connector

Brand: Huahong

Original: China



Our roller connector more stable



(PS: can send you one set roller connector freely if order 4 sets one time)

Part name: Electric motor

Brand: Shengda, Kaifeng

Original: China



Our electric motor enjoy 5 years warranty

 wet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimony
wet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimony

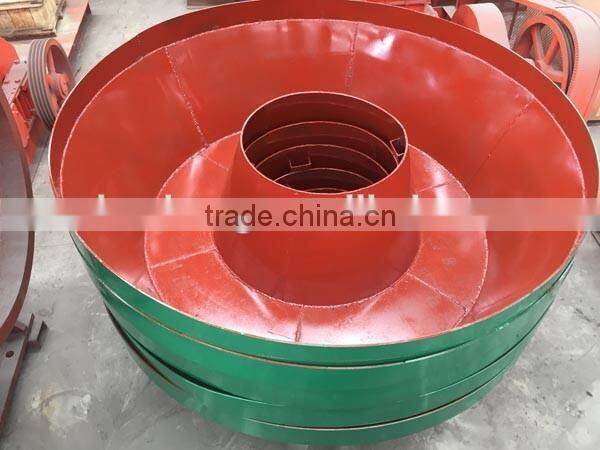

Part name: Water pan

Brand: Huahong

Original: China



The edge of the water pan is specially processed with the edge protecting. our water pan thickness is 8mm. other factories nomal thickness is 3mm or 6mm.



   wet pan mill ,grinding mill machine for separate Gold silver lead zinc iron copperantimony
