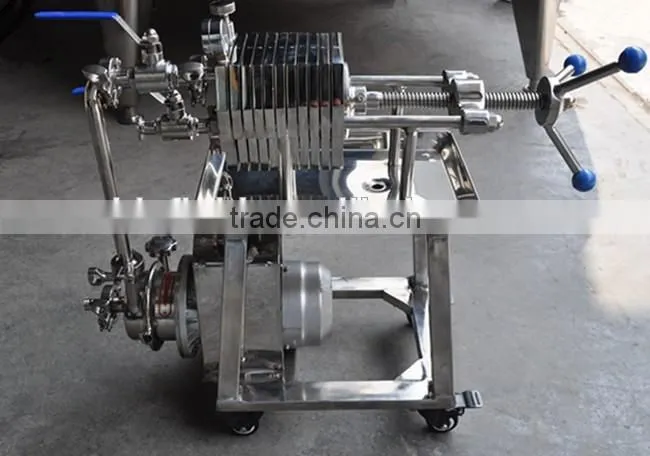

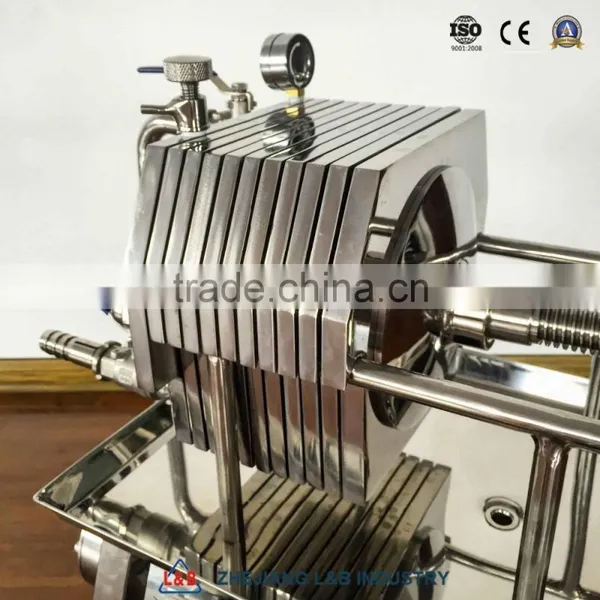

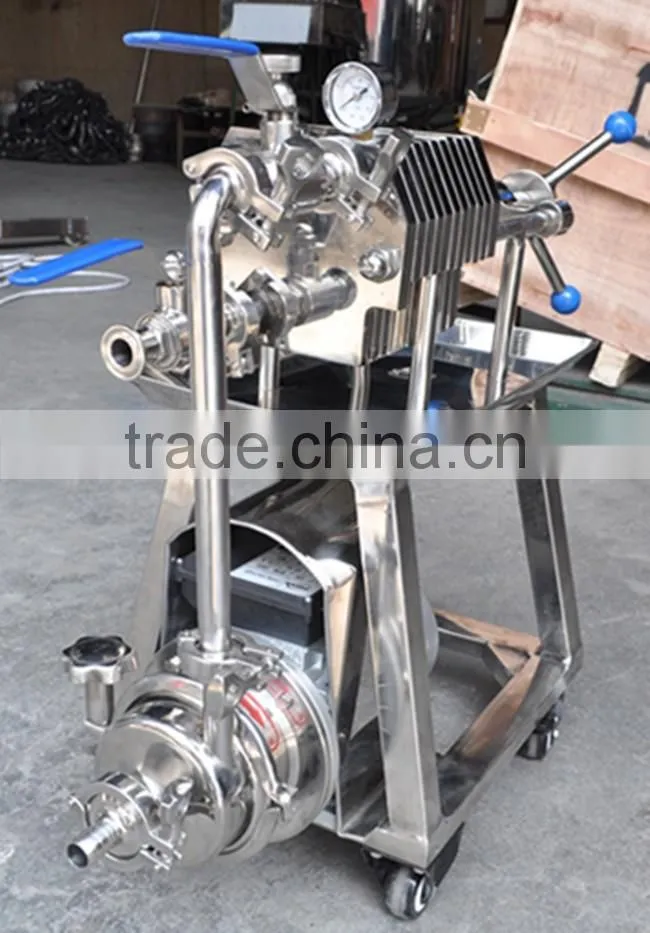

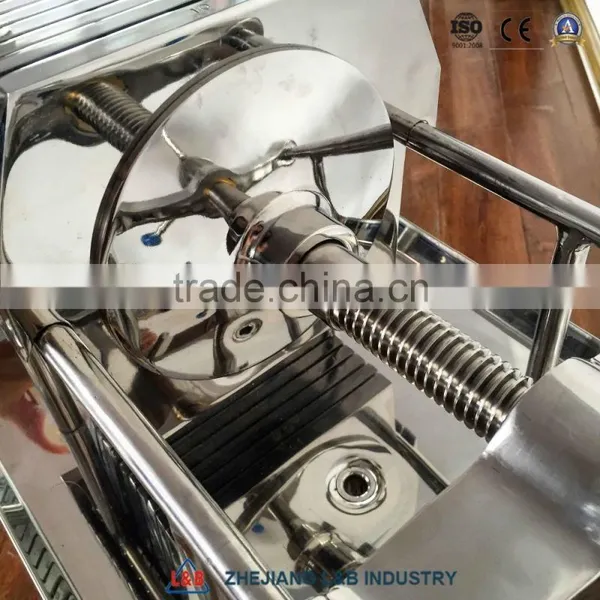

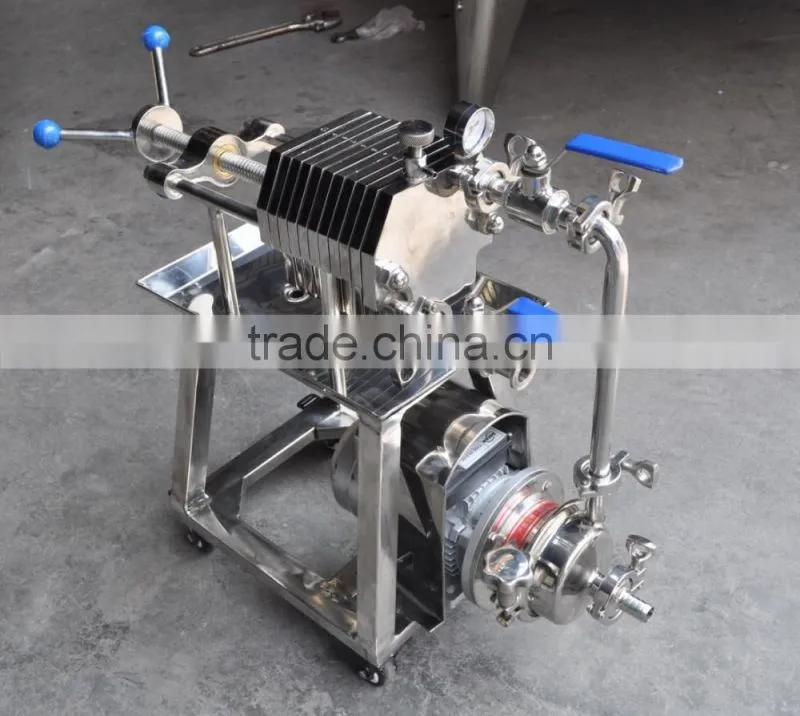

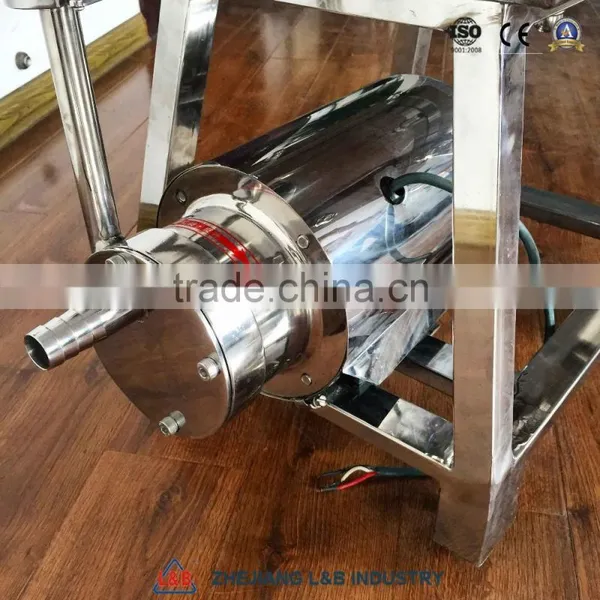

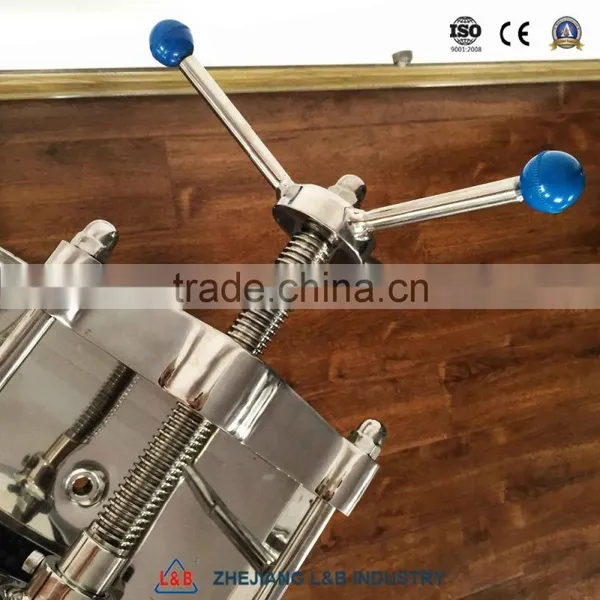

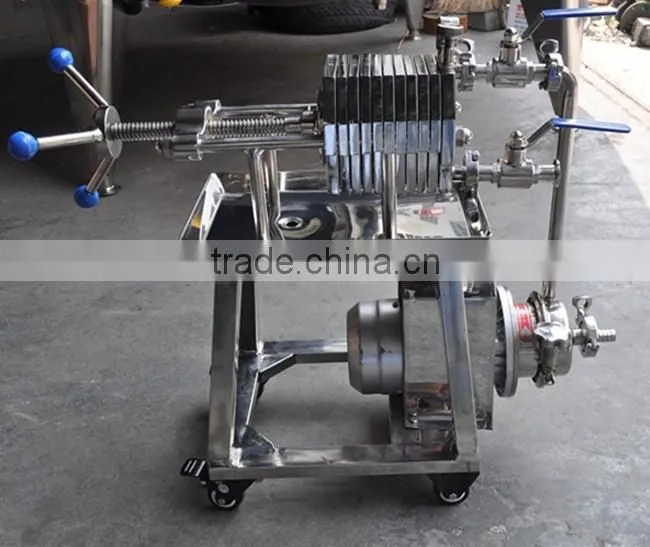

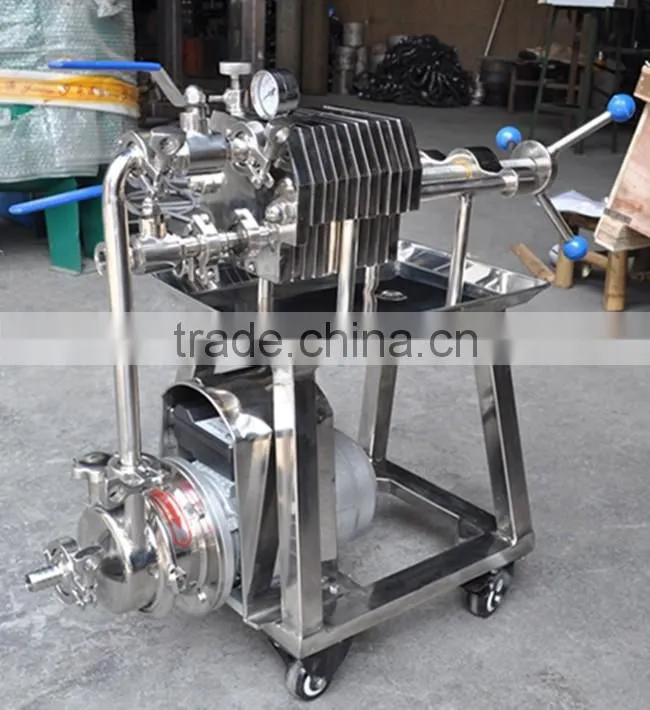

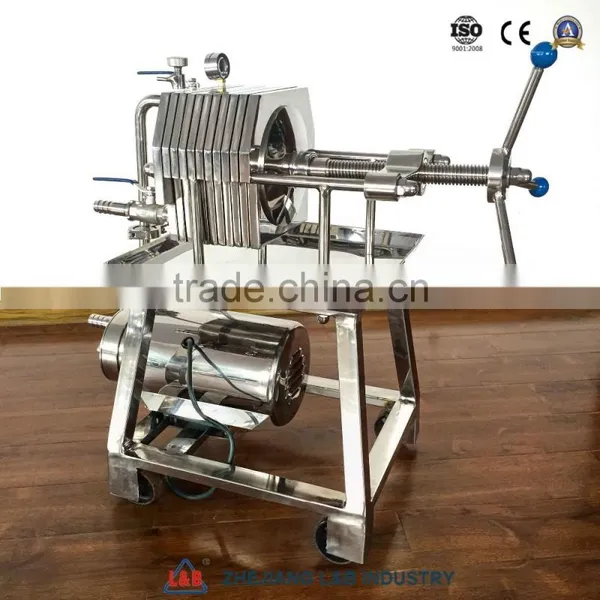

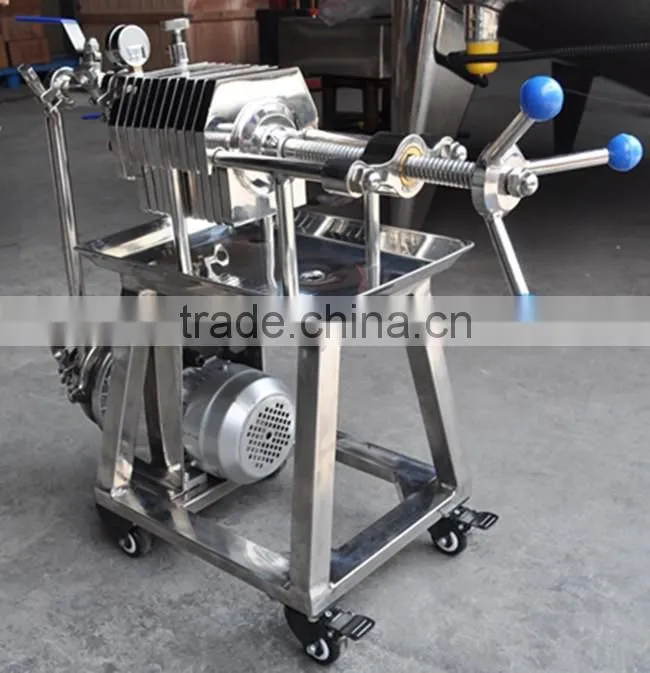

Filter Press for Wisky|Filter Press for Soya Sauce|Filter Press for Wine
Introduction:
The equipment is multi-layer frame filter, which is applicable to the process operation with the requirements of fine filtration and semi-fine filtration such as purification, sterilization and defecation with sealed filtration in the liquid with low viscosity and little slagging content under the concentration of 50%.
By directly adopting microporous filtration film, it can realize the sterile filtration without passing the microporous film.
Characteristics :
- Large filtration area
- Large flow
- Wide applicable range
Application :
Widely used in the filed of pharmacy, chemical industry and food, etc.
The effect will be better if used for filtration of injection liquid medicine in pharmacy factories.
Remark:
Bailishi adopts Japanese LGMazak company’s advanced CNC Machining Center equipment, all of the products can be made according to a different roughness , material quality and Industry standards and has these characteristics, with a simple structure, handsome in appearance, disassembly fast, flexible operation, fluid resistance small, the use of safe and reliable and so on.
Model |
Layer |
Filter Area (m2) |
Filter Material (mm) |
Filter Medium (µm) |
Filter Pressure (mpa) |
H2O Flow (t/h) |
Power (kw) |
Overall Size L*W*H(mm) |
WBG-100 |
10 |
0.078 |
Φ100 |
0.8 |
0.15 |
0.8 |
0.55 |
680*310*580 |
WBG-150 |
10 |
0.17 |
Φ150 |
0.8 |
0.15 |
1.5 |
0.75 |
780*350*700 |
WBG-200 |
10 |
0.34 |
Φ200 |
0.8 |
0.15 |
2 |
1.1 |
820*380*760 |
WBG-300 |
10 |
0.7 |
Φ300 |
0.8 |
0.15 |
4 |
1.1 |
920*500*900 |
WBG-400 |
10 |
1.25 |
Φ400 |
0.8 |
0.15 |
6 |
1.1 |
1260*600*1120 |
WBG-400 |
16 |
2 |
Φ400 |
0.8 |
0.15 |
9 |
1.5 |
1350*600*1150 |
WBG-400 |
20 |
2.5 |
Φ400 |
0.8 |
0.2 |
10 |
1.5 |
1420*600*1180 |
WBG-400 |
32 |
4 |
Φ400 |
0.8 |
0.3 |
13 |
2.2 |
1588*600*1180 |
WBG-200 |
10 |
0.4 |
200*200 |
0.8 |
0.15 |
3 |
1.1 |
820*380*760 |
WBG-300 |
10 |
0.9 |
300*300 |
0.8 |
0.15 |
6 |
1.1 |
920*500*900 |
WBG-400 |
10 |
2 |
400*400 |
0.8 |
0.15 |
10 |
1.5 |
1260*600*1120 |
WBG-400 |
20 |
3 |
400*400 |
0.8 |
0.15 |
12 |
2.2 |
1420*600*1180 |
WBG-400 |
26 |
4 |
400*400 |
0.8 |
0.2 |
15 |
2.2 |
1500*600*1180 |
WBG-400 |
32 |
5 |
400*400 |
0.8 |
0.2 |
18 |
2.2 |
1588*600*1180 |
WBG-400 |
38 |
6 |
400*400 |
0.8 |
0.3 |
21 |
2.2 |
1720*620*1200 |
WBG-400 |
44 |
7 |
400*400 |
0.8 |
0.3 |
23 |
3.0 |
1820*650*1250 |
Other features:
Package: normal exported package(plywood case)
Payment terms: T/T
MOQ: one set
Machine material: stainless steel 304 or 316
( ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong)
Warranty: 12 months
(during the machine life, we will supply parts and fittings you need)
Factory advantage: ISO9001 certified factory
20-year production experience, over 10-year experience; sell products through out the country and exported to overseas countries and regions, won the trust of all customers; also fulfill the needs and requirements from different customers.
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
