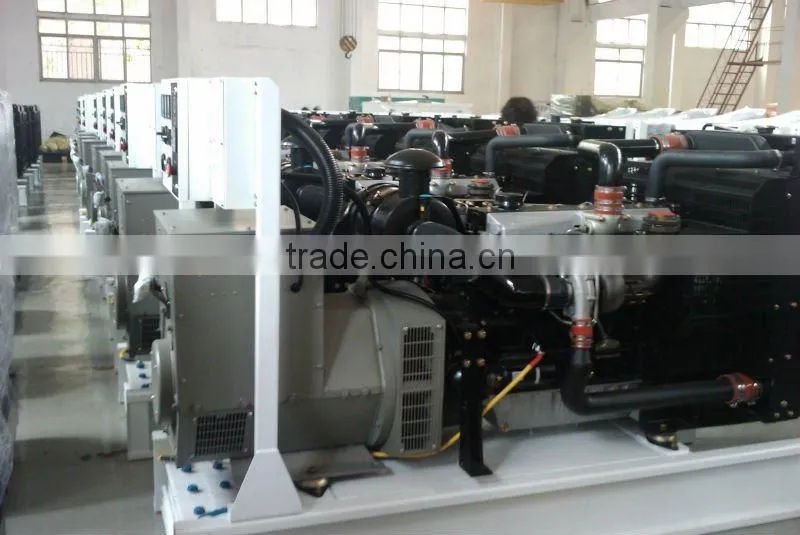

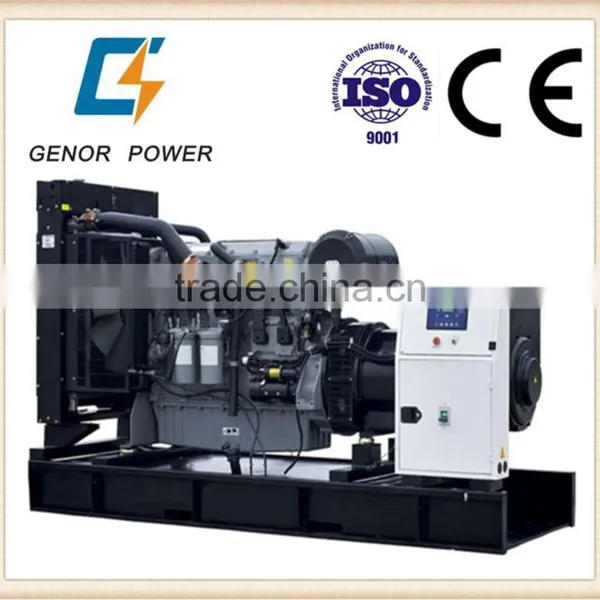

With Perkins Engine 200kw Diesel Generator Set
UK imported series gen-sets have the advantages as small overall dimension, light weight, strong power, energy saving & environment-friend, high reliability and convenient maintenance, which can meet the demands from different customers.
| Technical parameters of diesel generator sets: | |
| Technical data | |
| Genset Model | GNRP200 |
| Prime Power | 200KW |
| Rated Voltage | 400/230V |
| Frequency | 50Hz |
| Power Factor | 0.8(lagging) |
| Dimension (L×W×H) (mm) | 2590*1005*1720 |
| Genset weight (kg) | 2135 |
| Diesel Engine | |
| Brand | UK imported |
| Model | 1306C-E87TAG6 |
| Number of Cylinders | 6 |
| Total displacement(L) | 2.99 |
| Bore (mm)×Stroke(mm) | 116.6*135.9 |
| Fuel oil consumption rate g/kw.h | 5.7 |
| lubricating oil specification and grade | API-CD class above |
| Fuel oil specification and grade | China 0#(Light diesel oil) |
| Lubricating system | force and splash lubricating |
| Speed adjustment mode | Electron |
| Radiator | Introducing advanced technology for high-low water temperature radiator |
| Alternator | |
| Manufacturer | MARATHON Electric Manufacturing Corporation |
| Brand | MARATHON |
| Alternator Type | MP-200-4 |
| Power factor | 0.8(Lagging) |
| Class of insulation | H |
| Degree of protection | IP23 |
| Voltage regulation | Automatic voltage regulation(AVR) |
| Sustained Overexcite Time(s) | ≥5 |
| Telephone disturbance | THF less than 2% TIF less than 50 |
| Machine winding | 2/3 pitch |
| Winding temperature rise | H class |
Quality control of Genor Power Genset

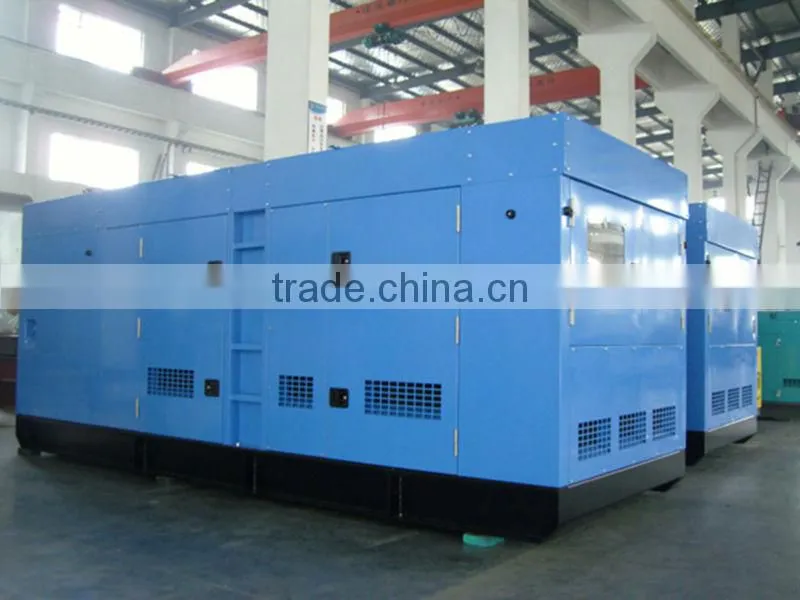

1.The genset canopy can be designed by customers demand free of charge.
2.Noise level can be designed by customer demand, standard noise level is 70-73DB at 7m. Super silent is 60-65DB at 7m.
3. Canopy color can be painted free of charge by customer demand. It is high quality paint.
4.All connection components and door lock are stainless steel.
5. We added oil filling inlet with lock
6. The oil box is separate madeand then welded to the base frame, not by simple welding on the base frame. It is to make sure there is no oil leakage
7. The base frame is with forklift mouthwhich is easy to load and discharge
8. For Logo, we can paint customer's logo when the order is more than 5sets.
9. For technical specification or question, we can support you by our strong technical team
