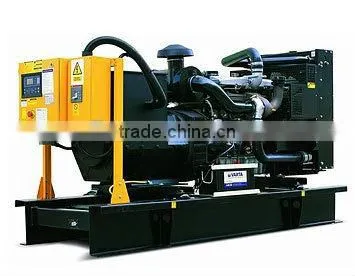

20kva Diesel Engine Silent Lovol Small Generator
- Shenzhen
- T/T
You May Like
-
80kva Silent 64kw Diesel Generator Set With Perkins Engine
-
Assurance Automatic 200kva Silent Diesel Generator With Perkins Engine
-
10kva to 500kva Good Generator Diesel Generator Set With Perkins Engine
-
With Perkins Engine 48kw Stainless Steel Diesel Generator
-
With Perkins Engine Silent Type 160kva Generator Price
-
Water Cooled Industrial 60kw Silent Generator With Perkins Engine
Product Details
| Place of Origin | Guangdong, China | Brand Name | Lovol | |
| Model Number | GNRP | Output Type | AC Three Phase | |
| Speed | 1500rpm or 1800rpm | Frequency | 50Hz or 60Hz | |
| Rated Power | 20kva | Rated Voltage | 220V/380V, 230V/400V, 240V/415V | |
| Rated Current | 29A |
Product Description
Specifications
20kva Lovol Generator1.Lovol 404D-22G Engine
2.Noise Level:65dB at 7m away
3.One Year Warranty
4.CE Approved

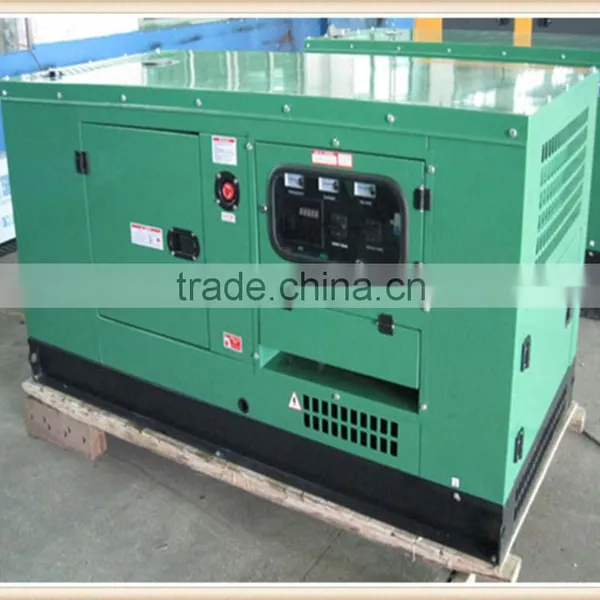

20kva Diesel Engine Silent Lovol Small Generator
Specificates Data:
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | GNRP20 |
| 1.2 | Prime at 50HZ, 40°C ambient | 16KW 20KVA |
| 1.3 | Standby at 50HZ, 40°C ambient | 17.6KW 22KVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | 2100×850×1300mm |
| 1.7 | Weight | 700kg |
| 1.8 | Fuel consumption 100% prime load | 5,4 l/hr |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set |
| 1.10 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | Lovol |
| 2.2 | Engine Model | 404D-22G |
| 2.3 | Governor/Class | Mechanical |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Vertical in-line |
| 2.6 | Fuel spray pattern | Indirect injection |
| 2.7 | Aspiration | Naturally |
| 2.8 | Cooling mode | Radiator cooled (enclose water) |
| 2.9 | Bore and stroke | 84×100mm |
| 2.10 | Compression ratio | 23·3 : 1 |
| 2.11 | Displacement | 2.216L |
| 2.12 | Engine Prime Power at 1500rpm | 18.4KWm |
| 2.13 | Engine Standby Power at 1500rpm | 20.3KWm |
| 2.14 | Start-up mode | 12V, electric |
| 2.15 | Lubricating oil consumption | Lubricating oil consumption less than 10% Fuel consumption |
| 2.16 | Lubrication oil capacity | 10,6 litres |
| 2.17 | Coolant capacity – radiator and engine (40°C) | 6,98 litres |
| 2.18 | Exhaust temp – full load prime | 445°C |
| 2.19 | Exhaust gas flow – full load prime | 3,64m³/min |
| 2.20 | Exhaust gas back pressure max | 10,2 kPa |
| 2.21 | Air intake – engine– full load prime | 1,45m³/min |
| 2.22 | Standard Air intake temp | 25°C |
| 2.23 | Fuel type | #0 Diesel (Natural temperature) |
| 2.24 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.25 | Exhaust system | Adopt industrial high efficiency silencer and flexible bellows |
| 2.26 | Engine derating – altitude | Above the sea-level 1525m high, a fall of 4% from a rise of 300m. |
| 2.27 | Engine derating – temperature | Above the ambient temperature 40°C high, a fall of 2% from a rise of 11%. |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | PI 144D |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5% |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 25.3A |
| 3.12 | Efficiency | 0.842 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40°C |
| 3.18 | Min. Ambient Temperature | - 15°C |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 133Kg |
1) Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm system and
arrestor for any situation as the start defeat, the water is over temperature, the oil
pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2) Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and battery line
k) Set shock absorber
l) High-efficient silencer
