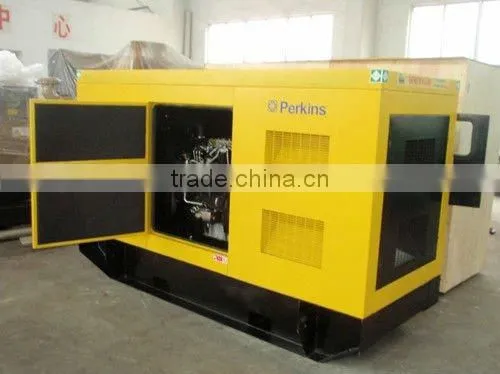

Silent 38kw off grid diesel generator for Cottage
General Features
- Every diesel power generators is subjected to a comprehensive test program which includes 50% load, 75% load, 100% load, 110% load and the checking and proving of all control and safety shut-down functions.
- Equipped with battery charger and 12V high performance maintenance-free lead-acid starting batteries and connecting with cables.
- Equipped with industrial silencer and flexible exhaust hose.
- Equipped with 8-hours operation base tank
- Equipped with CHINT MCCB circuit breaker
- Designed to Comply with ISO8528/GB2820
-
Powered by UK engine and coupled with Leroy Somer,Stamford, Mecc alt and Lisite alternator.
Environment temperature
°C
≤50
Relative humidity
%
≤90
Altitude
m
≤1000
Powered by UK Engine
Engine Features:
1. UK industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily

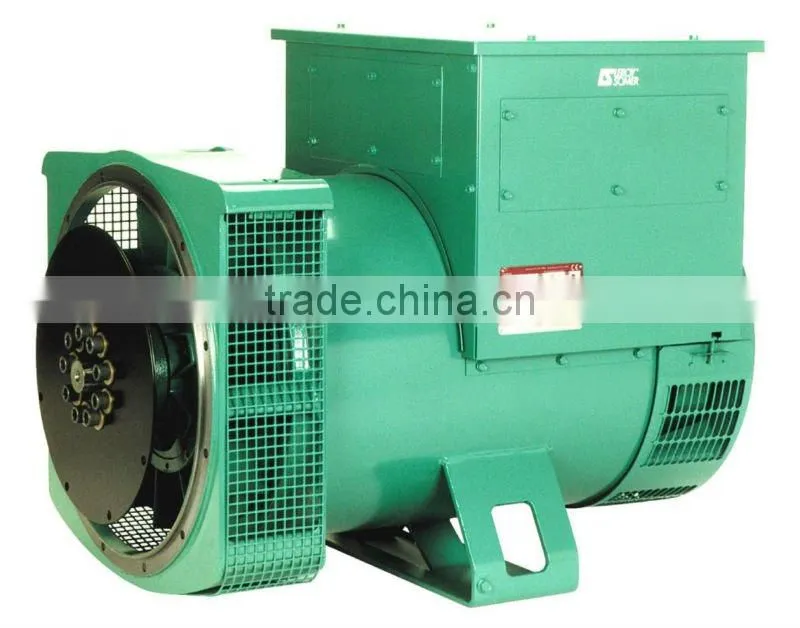

Brushless coupled Alternator
Alternator Features:
1. Stamford, Leroy Somer,Mecc alt, Lisite alterators.
2. Brushless, 4 poles, rotation magnet
3. IP23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

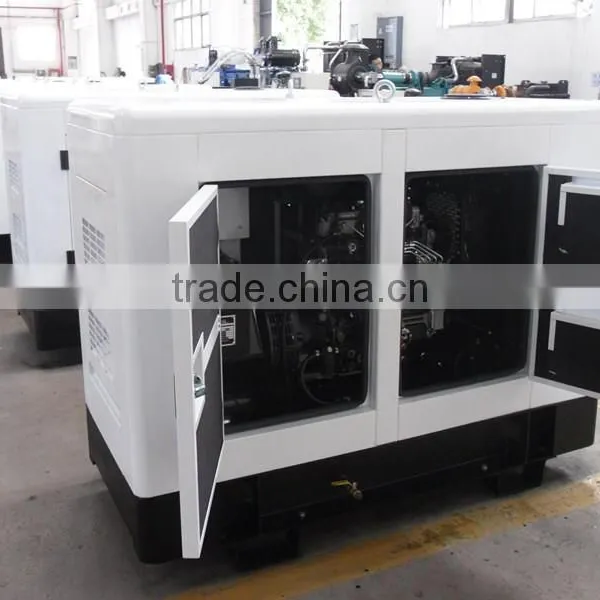

Soundproof/Silent Box:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as diesel power generator ventilation system, and louver is installed in the window to prevent rains and other intruders.
The box is modular structure with indicator and maintenance doors which make installation, operation and maintenance
very convenient. Benefited from the special design, medium low noise diesel power generator noise can be as low as 1m<80DBA / 7m<70DBA. Fuel tank can be installed on it according to customer needs.
Highly Corrosion Resistant construction, painting is POWDER PAITING.
Control Panel:
All MPMC series UK power generators have a control cubicle (the deepsea controller DSE3110 as standard) mounted on a isolated support, which has the following features:
Electronic digital control module with monitoring/control facility and warning indicators;
Automatic shutdown protection
Emergency stop button (lock-down type)
AC output circuit breaker with over-current protection;
DC circuit control switch.
The control module gives digital readouts of:
1. Generator voltage;
2. Output frequency;
3. Engine speed;
4. Battery voltage;
5. Engine hours run.
Note:
1. The engine coolant temperature used temperature meter display;
2. The engine oil pressure used oil pressure meter display;
3. Generator current used current meter display and used change switch for each phase displayed separately
The control module has indicators for failure information:
1. Overspeed/underspeed,
2. Emergency stop
3. Low oil pressure;
4. High water temperature
5. Failure to start
6. Battery charger failure
Automatic shutdown occurs under:
1. Low engine oil pressure;
2. High engine water temperature;
3. Overspeed/underspeed;
4. Failure to start after three attempts
Excellent After Sales Service
Product training: skilled on the latest technology
Required tooling: electronic and specified tools for fast, high quality repair
Information system: on-line access for up to date technical data
Parts in stock: critical parts on the shelf for speedy repair
