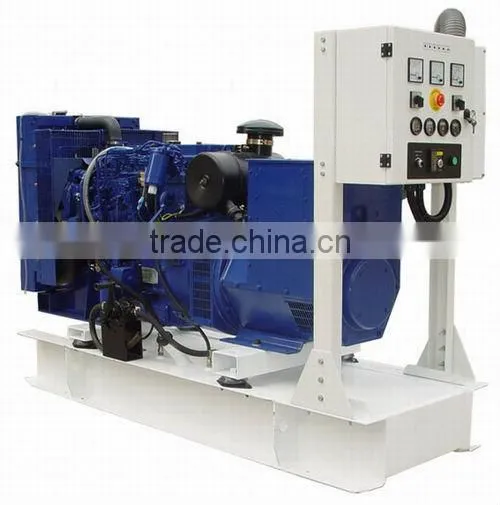

Alibaba assurance automatic 200kva Silent Diesel Generator With Perkins Engine
British (also called Rolls-Royce) Engine Co.,Ltd is one of the largest engine manufacturers in the world. is complete in specifications & types, has compact form, reliable performance, convenient maintenance. And the less gas pollution is up to the EU Environmental emission standards.
Technical parameters of 200KVA diesel generator :
Technical data | |
Genset Model |
GNRP200 |
Prime Power |
160KW/200KVA |
Rated Voltage |
400/230V |
Frequency |
50/60Hz |
Power Factor |
0.8(lagging) |
The regulating rate of steady voltage |
≤±0.5% |
The regulating rate of instantaneous voltage |
≤-15%/ +20% |
The time of steady voltage |
≤1.5sec |
The waving rate of voltage |
≤1.0% |
The regulating rate of steady frequency |
≤3% |
The regulating rate of instantaneous frequency |
≤±10% |
The time of steady frequency |
3sec |
Dimension (L×W×H) (mm) |
3000*1000*1700 |
Genset weight (kg) |
2100 |
Diesel Engine | |
Brand |
UK Imported |
Model |
1306C-E87TAG3 |
Number of Cylinders |
6 |
Rotating Speed |
1500/18000RPM |
Cycle |
Four stroke |
Type |
waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) |
116*136 |
Displacement(L) |
8.7 |
Lubricating Capacity(L) |
26.4 |
Speed Governor |
Electrical |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
201g/kw.h |
Starting Method |
DC24V Electrical starting |
Alternator | |
Brand |
Stamford |
Model |
HCI444E |
Number of Phase |
3 |
Connecting Type |
Three Phase and Four Lines |
Number of Bearing |
1 |
Grading Protection |
IP22 |
Altitude |
≤1000m |
Exciter Type |
Brushless (AVR automatic voltage regulating) |
Insulation Class |
H degree |
The components of the genset | |
(1) Cummins Diesel Engine; (2)Stamford Alternator; (3) Control Panel | |
Control Panel | |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. | |
For better meet user's demands, the alternator is selectable, we have Stamford, Marathon, Engga and other famous brands.
