With Perkins Engine Power Silent Electric Diesel Generator 150kva
1,UK Series Engine
2,Alternator
1)Optional Brand: Engga, Stamford, Marathon,leroy somer …
2)The standard generator set matches with Engga brand alternator, and customer also can choose other brands.
3)Standard AVR, AC three phase, 12 reconnect copper leads, single bearing or double bearing, self-exciting system and permanent magnet generator.
4)IP21-23 protection grade, insulation system is H class, and stators are wound to 2/3 pitch.
5)Manufacture standards: GB755, BS5000,VDE0530,NEMAMG1-22,IEC34,and ASB59

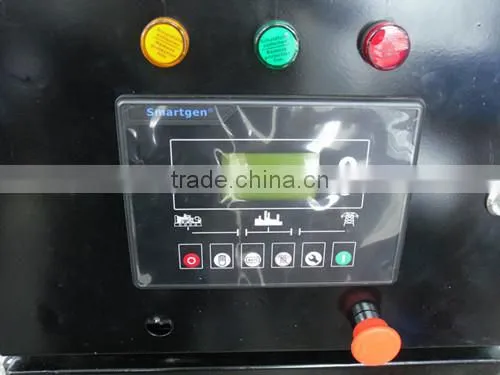

3,Digital Control Panel
Controller Brand: Smartgen
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.

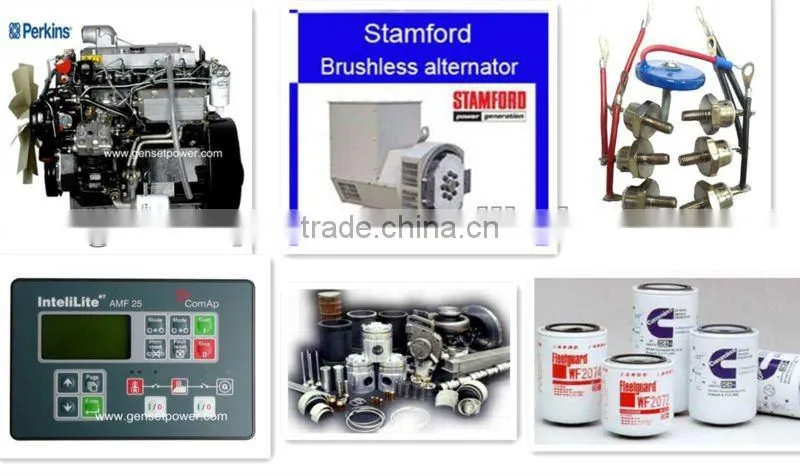

4,Optional Diesel Genset Accessories
Engine |
Heater |
Battery Charger |
|
Fuel System |
Daily Fuel Tank |
Base Fuel Tank |
|
Control System |
Auto Control Panel |
Remote Control Panel |
Auto Transfer Switch (ATS) Control Panel |
Alternator |
Single phase, three phase |
Brushless, carbon brush |
|
Type |
Weatherproof Type |
Soundproof Type |
Trailer type |
Spare Parts |
Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List |
||
5,Technical datas of 150kva perkins genset
Technical data | |||||||||||||||||||||||||
Genset Model |
GNRP150 |
||||||||||||||||||||||||
Prime Power |
150KVA |
||||||||||||||||||||||||
Standby Power |
165KVA |
||||||||||||||||||||||||
Rated Voltage |
400/230V |
||||||||||||||||||||||||
Frequency |
50Hz |
||||||||||||||||||||||||
Power Factor(COS) |
0.8(lagging) |
||||||||||||||||||||||||
Dimension (L×W×H) (mm) |
2690×800×1470 |
||||||||||||||||||||||||
Genset weight (kg) |
1375 |
||||||||||||||||||||||||
Diesel Engine | |||||||||||||||||||||||||
Brand |
UK |
||||||||||||||||||||||||
Model |
1006A-70TAG2 | ||||||||||||||||||||||||
Number of Cylinders |
6 |
||||||||||||||||||||||||
Rotating Speed |
1500RPM |
||||||||||||||||||||||||
Cylinder Arrangement |
Vertical in-line |
||||||||||||||||||||||||
Cycle |
Four stroke |
||||||||||||||||||||||||
Aspiration |
Turbo Air Air Cooling |
||||||||||||||||||||||||
Bore×Stroke(mm) |
100×127 |
||||||||||||||||||||||||
Displacement(L) |
5.99 |
||||||||||||||||||||||||
Compression Ratio |
17.0:1 |
||||||||||||||||||||||||
Speed Governor |
Electrical |
||||||||||||||||||||||||
Cooling System |
Forced Water Cooling Cycle |
||||||||||||||||||||||||
Speed Stability (%) |
≤5% |
||||||||||||||||||||||||
Total Lubrication System Capacity (L) |
19 |
||||||||||||||||||||||||
Coolant Capacity (Inc. Radiator) (L) |
41 |
||||||||||||||||||||||||
Fuel Consumption at 100% Load |
226g/kwh(at 1500RPM) |
||||||||||||||||||||||||
Starter moter |
DC12V |
||||||||||||||||||||||||
Alternator |
AC12V |
||||||||||||||||||||||||
Alternator | |||||||||||||||||||||||||
Brand |
Engga,Stamford,Leroy somer,Meccalte ...... |
||||||||||||||||||||||||
Connecting Type |
3 Phase and 4 Wires |
||||||||||||||||||||||||
Steady Frequency Change |
05% |
||||||||||||||||||||||||
No load voltage |
≥95%105% |
||||||||||||||||||||||||
Steady voltage |
≤±1% |
||||||||||||||||||||||||
Insulation degree |
H degree |
||||||||||||||||||||||||
Enclosure degree |
IP22 |
||||||||||||||||||||||||
|
OPTIONS
| |||||||||||||||||||||||||
1. what is the warranty ?
the standard warranty is 12months or 1000 running hours, subject to the earlier mature term.
but we will offer life-time and free technological support and problem solutions.
During warranty , if any problem , the spare parts supplying will be free .
2. how do we install the generator in our place ?
before delivering the generators , our engineers have installed and checked everyhing well.
when you receive the generator , you just need to fill the cooling water ,lube oil and fuel ,
then you just push the start button ,the generator will be running automatically. your local technician also know it well .
3. What is the generator maintenance period ?
you should do the maintenances according to the manual book , your local technician can do it easily .
4.What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set.
Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C.
Welcome to place the order through the trade assurance of Alibaba.
Delivery period normally will be 15~20 days after receiving customers' deposit.
5. Can you offer OEM service and print our logo in your genertator ?
Yes. Please inform us formally before our production.
FOR MORE DETAILS AND QUOTES, CONTACT US!
