Wireless Data Telemetry 5 w
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Friendcom
Model Number:
FC-301D
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
19200bps Data Radio Support 4FSKNegotiableMOQ: 2 Pieces -
Data RadioNegotiableMOQ: 2 Pieces
-
UHF/VHF AS/NZS Standard Data RadioNegotiableMOQ: 2 Pieces
-
VHF/UHF High Speed Data Radio Modem FC-228 30W With ProtocolNegotiableMOQ: 2 Pieces
-
Long Range RF Data Module (500mW) RS232/RS485/TTLNegotiableMOQ: 2 Pieces
Place of Origin
Guangdong, China
Brand Name
Friendcom
Model Number
FC-301D
Product Description

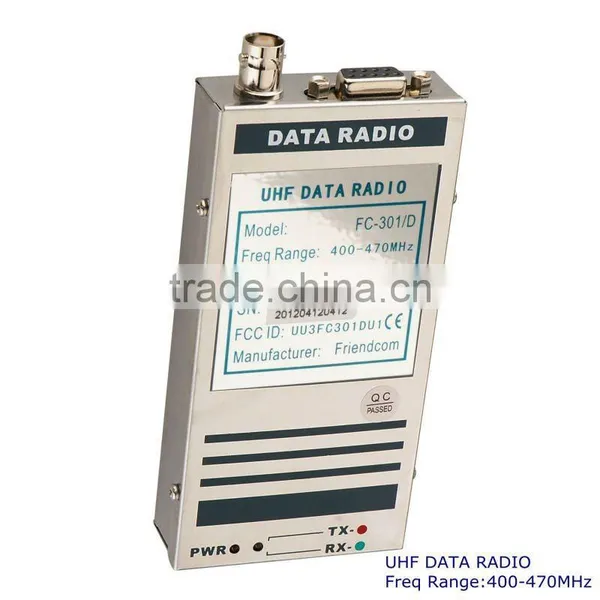

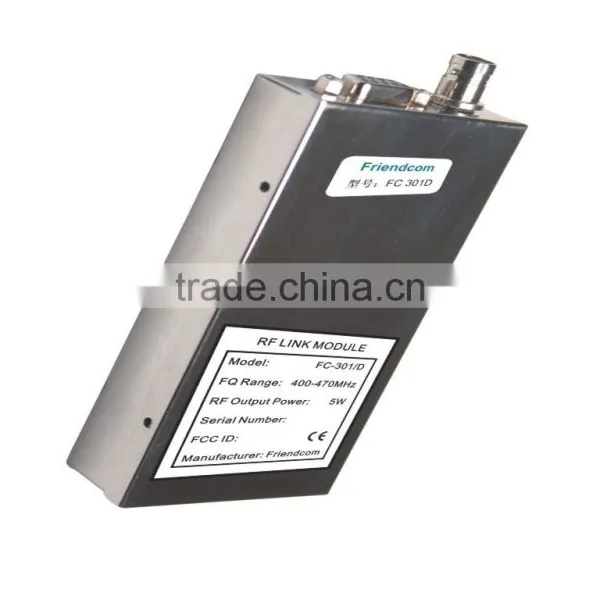

The FC-301/D Series of RF Link Modules from Friendcom utilizes the latest technology in its design and manufacturing. Both the UHF and VHF models are PLL (Phase Lock Loop Synthesizer) / microprocessor controlled, and offer one to five watts of power with 16 channel capability. Multiple functions including AC audio coupling, 1200 to 9600 baud rates GMSK and FSK modulation capability are standard in these fully programmable wide bandwidth RF Link Module units.
Applications
- Industrial telemetry & wireless remote control
- Gas and oil flow monitoring
- Electricity, water, and gas utilities
- Earthquake, weather, environmental protection and urban lighting control
- Vehicle tracking and asset tracking systems
- Water monitoring, waste water management and irrigation control
- Railway, police, army automation system
- Aerial defense and fire alarm system
- Wireless Paging system
Technical specification
| Items | Parameters |
| Frequency Band | UHF: 400MHz – 470 MHz VHF: 136MHz – 174 MHz |
| Channel Spacing | 25KHz/12.5KHz optional |
| RF Output Power | 1W - 5W Programmable |
| Modulation type | 16K0F3E, 8K5F3E |
| Intermediate Frequency | 45.1MHz & 455KHz |
| Number of Channels | 16 |
| Frequency Stability | ±2.5ppm |
| RX Sensitivity(12dB Sinad) | UHF<-117 dBm, VHF <-118 dBm |
| Operation Rating | Intermittent 5:5:90 ( TX: RX: Standby) |
| Power Supply | 12.5V DC Nominal Voltage |
| TX Current (5W RF Power, 12.5V) | < 1.5A |
| Standby (Muted) Current | ≤40mA |
| Operating Temperature Range | from –30°C to +65°C |
| Dimensions | (120mm)L x (60mm)W x (20mm)H |
| Time TX to RX | < 20 ms |
| Time RX to TX | < 25 ms |
| Weight | 200g |
| Antenna Impedance | 50 Ohm |
| Antenna Port | BNC connector, female |
