RF Module FC-221AJ
RS232 50/500mW,433/868/915MHz, 1200-19200bps
Application :
Wireless AMR system;
Wireless data collection;
Industrial control and telemetry;
Wireless queuing system;
wireless weighting scales;
Security monitor and alarm;
LED sign automatic display;
Specification:
1) Frequency band: 433MHz(default),868MHz,915MHz
2) 3FSK
3) Channel: 8, customized for more channels.
4) RF Power: 500mW
5) Receiver sensitivity: -122dBm@1200bps,-120dBm@2400bps
6) Transmit current:<450mA/TTL,<450mA/RS485,<450mA/RS232
7) Receive current:<45mA/TTL,<45mA/RS485,<45mA/RS232
8) Channel Spacing: 25kHz
9) Interface: UART/TTL,RS-232,RS-485,Baud rate: 1200-19200bps.
10) RF data rate: 1200-19200bps
11) Power Supply: 5.0±0.5VDC(500mW)
12) Temperature: -25°C ~ 60°C
13) Size: 82mm x 50mm x 20mm(Antenna and cable exluded)
14) Weight:100g

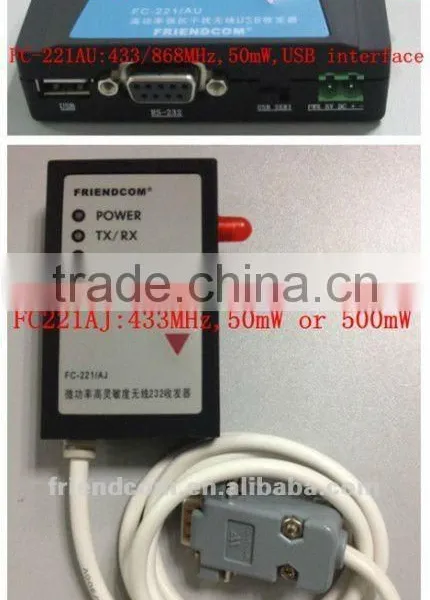

FC-221AJ(RS232 Interface) usually works with FC-221AU(USB interface)
