Product Description

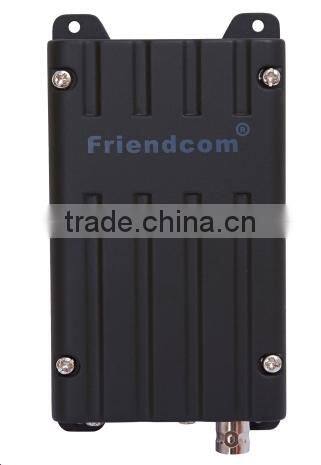

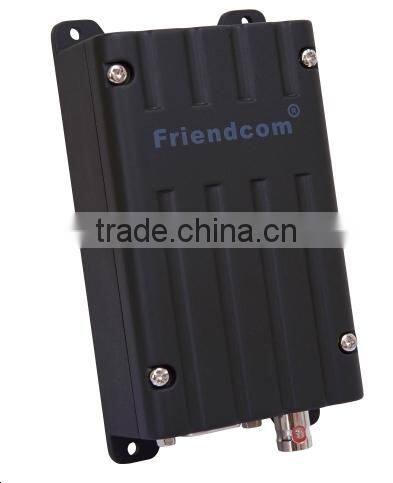

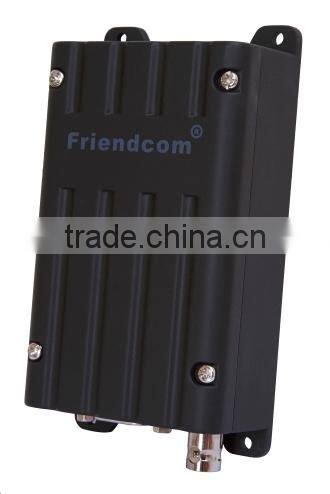

FC-302 is a synthesized 5-watt FM transceiver module, which is designed for data transportation and voice communication. For the voice communication, it can support selected pre-emphasis, squelch and audio amplifier. Two-point modulation with good low-frequency response is applied in the radio that makes it a competitive choice for 1200-19200bps data rate application. Compact dimension and wide range DC support make it flexible to use.
Key points
- CE, FCC& AS/NZS 4295: 2004 certified
- Programmable 16 channels with Dip-Switch
- Configurable power saving feature
- Optional external channel change
- FSK, FFSK& GMSK modem option
- Frequency step 5 KHz/6.25KHz
- CTCSS/DCS
- Support maximum RF data rate: 19200bps
- Fast start-up time: 5ms
- SQ programmable via PC
- Pocsag Modulation support
Applications
- Industrial telemetry & wireless remote control
- Gas and oil flow monitoring
- Electricity, water and gas utilities
- Earthquake, weather, environmental protection and urban lighting control
- Vehicle tracking and asset tracking systems
- Water monitoring, wastewater management and irrigation control
- Railway, police, army automation system
- Aerial defense and fire alarm system
- Wireless Paging system
Technical Specifications
- GENERAL
- Working Frequency: 450MHz~490MHz
- Channel Spacing: 12.5KHz /25KHz (Programmable)
- Number of Channels: 16
- Working Voltage: 9V-18V DC (Extreme)
- Operating Temperature: -30℃~+65℃
- Storage Temperature: -40℃~+80℃
- Lock Time:<5ms
- Frequency Error: <2.5ppm
RECEIVER
- RX Sensitivity <-119dBm
- Extreme <-115dBm
- Intermodulation >65dB
- Audio Output Power 0.5W @ 8Ω
- RX Audio Distortion <5%
TRANSMITTER
- RF Power 1~5W(Programmable)
- Frequency Deviation <5KHz(25KHz)
- <2.5KHz(12.5KHz)
- Subsonic 0.5 KHz
- Audio Response 300Hz~3KHz +1/-3dB (25KHz)
- 300Hz~2.55KHz +1/-3dB(12.5KHz)
- Adj. Channel Power <-70dBc (25 KHz)
- <-65dBc(12.5KHz)
- TX SNR >45dB(25KHz) >40dB(12.5KHz)
ACCESSORIES
- BNC Antenna
- PC Programming Software
- Cable (Serial)
- Extender for Service and Alignment
