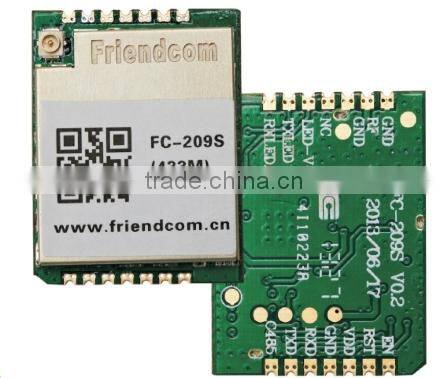

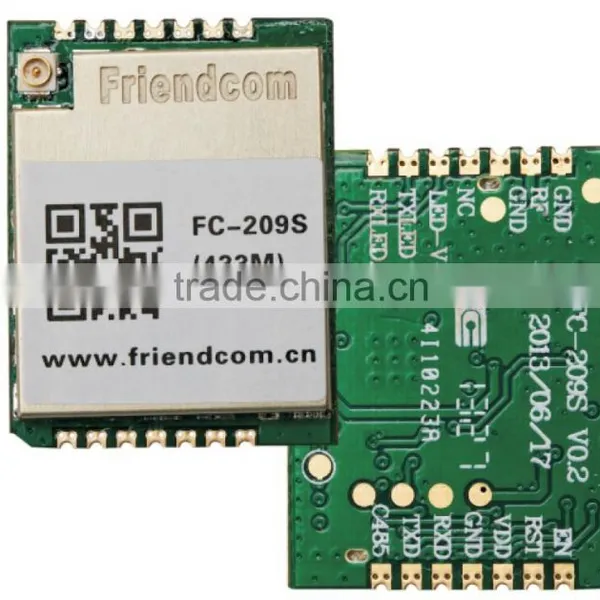

FC-RF209S Low-power Transceiver Module
Product Information
FC-RF209S is a new generation wireless transceiver module of multi-channel for embedded applications. It is a highly sensitive and stable wireless UART module with transfer rate between 1200-38400bps. The module is widely used in various embedded system or equipment for its small size working in license-free ISM band.
Dimension: 29 ×22 ×5 mm (L×W×H )
Applications
Smart home control system
Wireless sensor
Radio modems
POS teminals
Bar code scanners
Telemetry queuing system
Automatic data collection system
Wireless remote control
Features
ISM band,capable to work in 433MHz,475MHz,868MHz or 915MHz
The RF output power level can be programmable
Long distance transimission: When th eantenna height>2m, the reliable line-of-sight transmission distance >1000 meters.(9600 bps)
32 standard channels available. The frequency of each channel can be programmble.
simple wireless UART interface for easy RS 232/485 wire replacement.
