Handheld Network Maintenance
Product Information

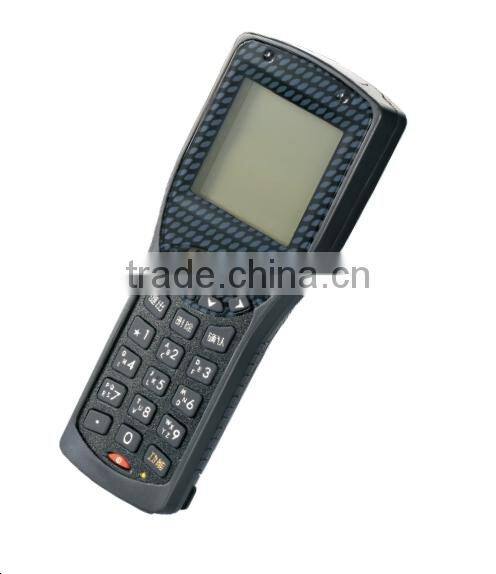

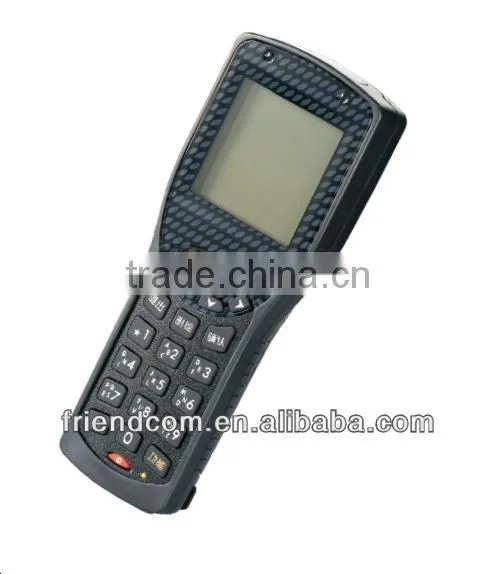

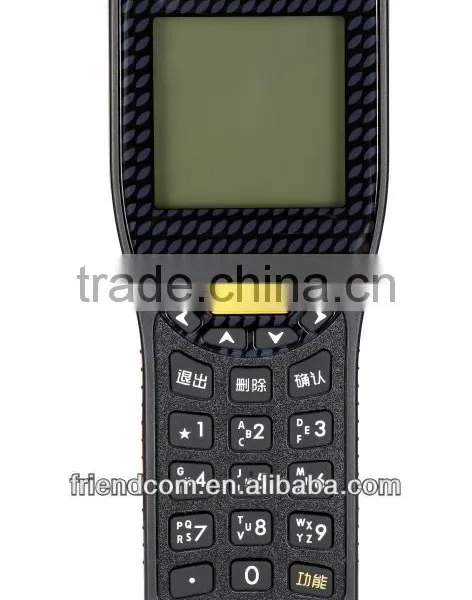

FC666-HS is battery-powered,dedicated wireless handheld device developed by Friendcom. It can be used for assessment of CellMesh system field communication effect, on-site RF environmental assessment, management and maintenance of the CellMesh equipment and field meter communication testing. Moreover, it can be used to conduct the quantification for the wireless environment and construction effect to make available support for CellMesh on-site construction.
Parameters:
Continuous Operating time |
> 8 hours |
Charge Mode |
DC5V, USB interface |
Display Mode |
TFT2.8 inch , LCD |
Enter Mode |
Keyboard |
|
Communication Mode |
infrared |
RS485 | |
RF | |
USB | |
|
Protocol Type |
DL/T645-1997,DLMS/COSEM |
DL/T645-2007, MODBUS | |
CJ/T188-2004, WM-BUS | |
Temperature Range |
-20°C~+70°C |
Humidity Range |
10%~100% RH,( Non-condensation) |
Weight |
210g(with battery) |
Dimension (L×W×H) |
169.0×67.5×27.0(mm) |
RF specifications:
Modulation Mode |
GFSK |
Work Frequency |
433MHz/480MHz/868MHz/915MHz |
ERP |
<10dBm(default) |
Sensitivity, R/S/T |
-106dBm(10Kbps) |
TX Current |
<265mA |
RX Current |
<165mA |
