Wireless Data Aquisition Module for gas, heat ,water meter

Specifications

supports 10 frequency points of frequency spatial reuse and multi-hopping technology, which guarantee reliable data transmission

Product Information

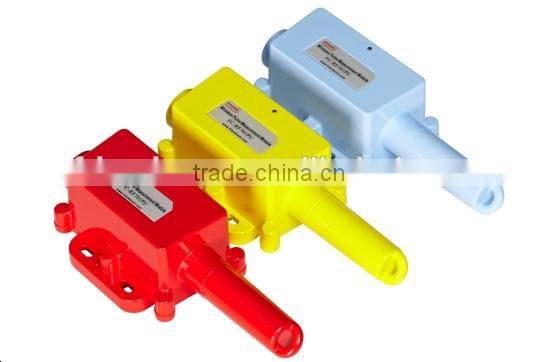

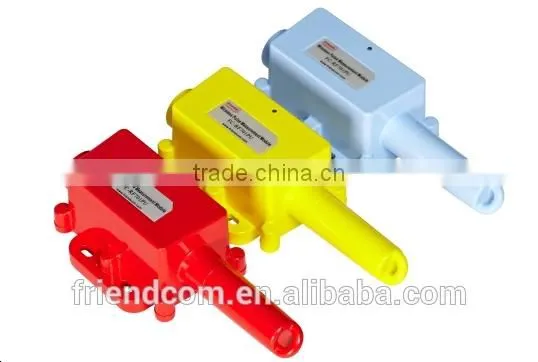

FC-RF701 is an ultra-low power consumption wireless data acquisition module that independently developed by Friendcom. It supports 10 frequency points of frequency spatial reuse and multi-hopping technology, which guarantee the reliable data transmission. The frequency is programmable from 470MHz-510MHz ISM license-free band. FC-RF701 could be installed in users’ water meters or gas meters to implement pulse acquisition, motor drive, status monitoring and prepayment of water or gas meters.

Key Feature

Timed sleep and wakened detection: implement ultra-low power consumption in standby mode
SerialNet mode: communication between FC-RF701 and devices with serial port (RS485/RS232/TTL/M-BUS) is available
Equipped with different sensors: collect current, pressure, humidity, pulse and temperature data

Technical Specification
