Specifications
Timing dormancy and wake up detection:implement ultra-low power consumption in standby mode.Collect current,pressure,humidity.1. Brief Introduction

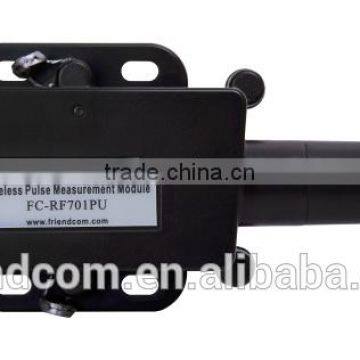

FC-RF701 is an ultra-low power consumption wireless data acquisition module that independently developed by Shenzhen Friendcom Technology Development Co., Ltd. Frequency spatial reusing and frequency hopping technology for 10 frequency points are available, which guarantee the data transmission reliable. FC-RF701 could be installed in users’ water meters or gas meters to implement pulse acquisition, motor drive , status monitoring and prepayment of water or gas meters.
2. Features
1. Timing sleep and wake detection: implement ultra-low power consumption in standby mode.
2. When in SerialNet mode, communication between FC-RF701 and devices with serial port (RS485/RS232/TTL/M-BUS) is available.
3. Equipped with different sensors to collect current, pressure, humidity, pulse and temperature data.
3. Parameters
