Newest Automatic Carbonated Drink Filling Equipment Price

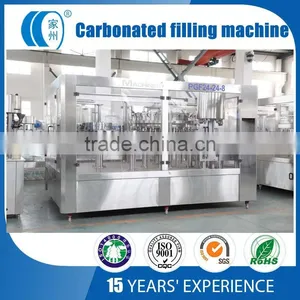

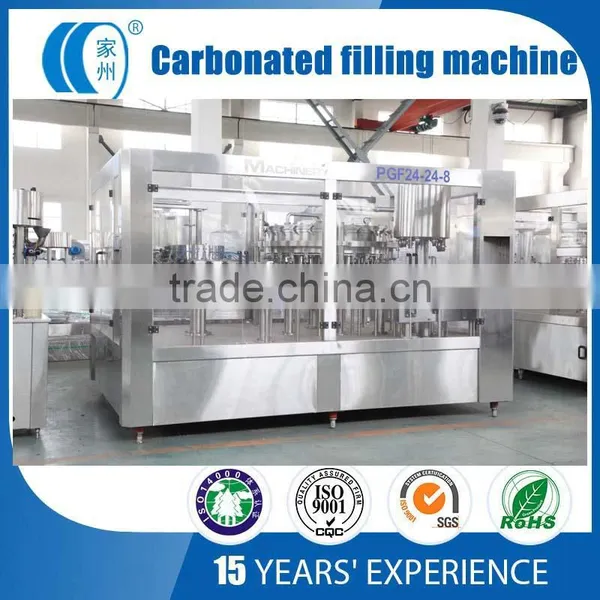

Newest Automatic Carbonated Drink Filling Equipment Price thumbnail-1
Newest Automatic Carbonated Drink Filling Equipment Price thumbnail-2
Newest Automatic Carbonated Drink Filling Equipment Price thumbnail-3
Newest Automatic Carbonated Drink Filling Equipment Price thumbnail-4
Newest Automatic Carbonated Drink Filling Equipment Price photo-1

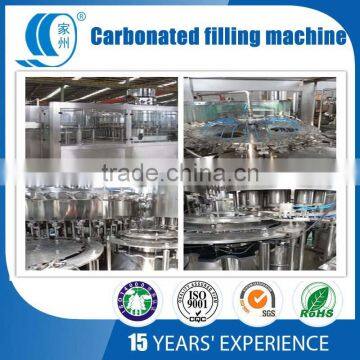

Newest Automatic Carbonated Drink Filling Equipment Price photo-2

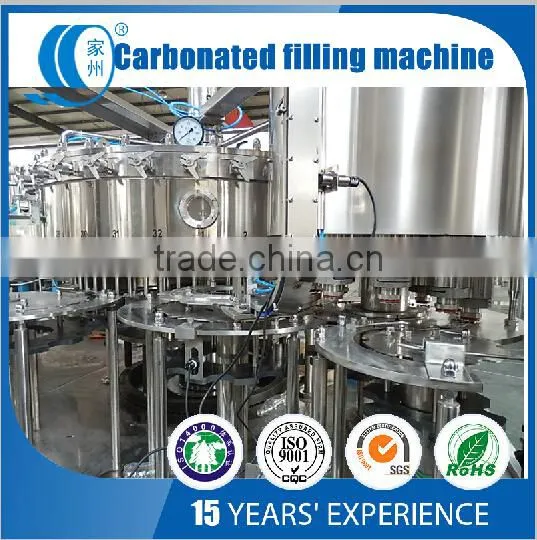

Newest Automatic Carbonated Drink Filling Equipment Price photo-3

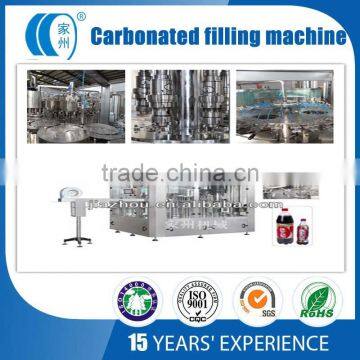

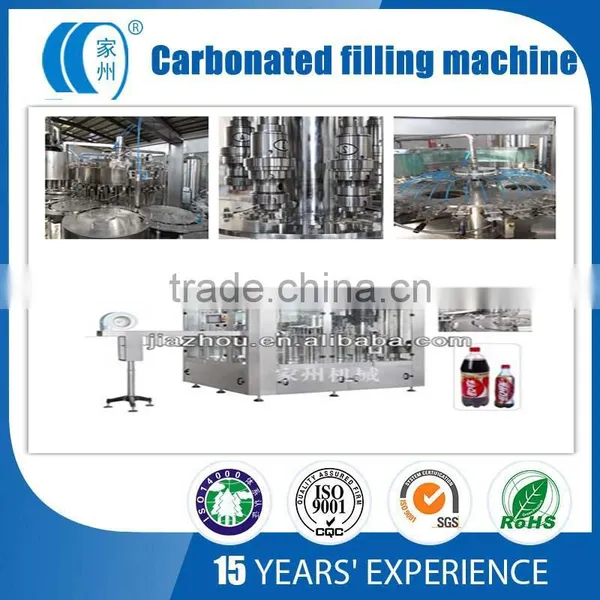

Newest Automatic Carbonated Drink Filling Equipment Price photo-4
US$ 9,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Carbonated Drink
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for carbonated drink filling equipment price
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Other, Beverage, Carbonated Drink
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name Jiazhou
Model Number DCGF
Dimension(L*W*H) 2800*2750*2950mm
Weight 2.5T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Newest automatic carbonated drink filling equipment price

1, The empty can reaches into the can lifting cylinder after passing through the pneumatic triplex parts, and the empty can is raised and the conical seal gasket under the filling valve is sealed.



2, The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder. The air is filled into the empty can to form the equal pressure.



3, From a large material barrel, the beer passes through 14 small conduits and flows into empty can. When the liquid level in the empty can blocks the gas return pipe mouth, then the filling stops.



4,Under the action of arm, the de-forming valve will slowly discharge the air and pressure, the can supporting cylinder will continue to fall. After it's discharged, the can is sent to the sealing machine for sealing machine for sealing by the hook chain that runs synchronously. During the sealing, the sealing wheel carries out pre-sealing and then real sealing. After it's sealed, the can is pushed out by the beating head of the cap beating mechanism and then dialed by dial to the conveyor belt for conveying.

Product display Newest automatic carbonated drink filling equipment price

Newest automatic carbonated drink filling equipment price



Newest automatic carbonated drink filling equipment price



Newest automatic carbonated drink filling equipment price



Newest automatic carbonated drink filling equipment price

Product Parameters Newest automatic carbonated drink filling equipment price
Model DCGF
18186		 DCGF
24248		 DCGF
323212		 DCGF
404015		 DCGF
505018		 DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Newest automatic carbonated drink filling equipment price
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
Newest automatic carbonated drink filling equipment price
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Newest automatic carbonated drink filling equipment price
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
Newest automatic carbonated drink filling equipment price
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
Newest automatic carbonated drink filling equipment price
C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
Newest automatic carbonated drink filling equipment price
