Best Price Monobloc Water Filling Machine Manufacturer

Best Price Monobloc Water Filling Machine Manufacturer photo-1
Best Price Monobloc Water Filling Machine Manufacturer photo-2
Best Price Monobloc Water Filling Machine Manufacturer photo-3
Best Price Monobloc Water Filling Machine Manufacturer photo-4
US$ 12,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, water
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for monobloc water filling machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number CGF
Dimension(L*W*H) 2500*1700*2600mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Best price monobloc water filling machine manufacturer
The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed conveyor.A star wheel then transfers the bottle to neck holding gripper of the rinsing station.The rinsing robot indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.In the filling station the bottles are picked up by the neck and are allocated individual filling values.The state-of-art filling valve is so precise and accurate it gives even filling in all bottles.The filled bottles are then transferred to the capping station via a star wheel.The bottles automatically move for the capping stage where the caps release from the sorter on to the bottles.The caps are sealed automatically using special capping hands. The entire system is enclosed in a stainless steel/glass outer casing.After the capping stage the bottle are automatically ejected out to the out feed conveyor. The whole equipment is sleek and is capable of bottling various sizes of PET bottles ranging from 250 ml to 2 ltrs.

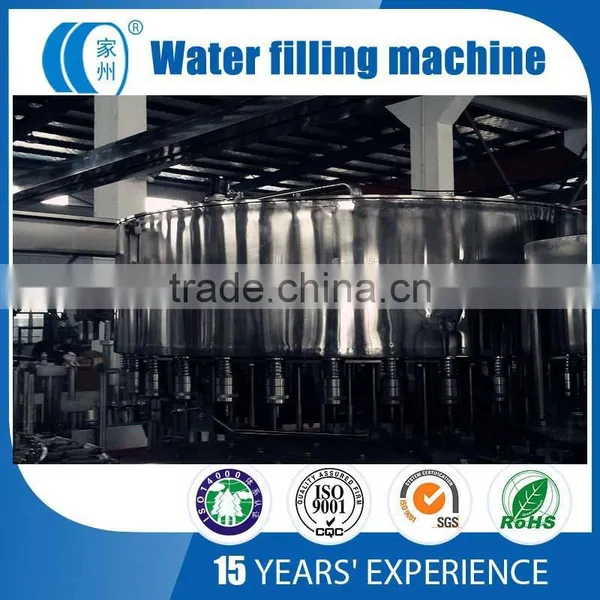

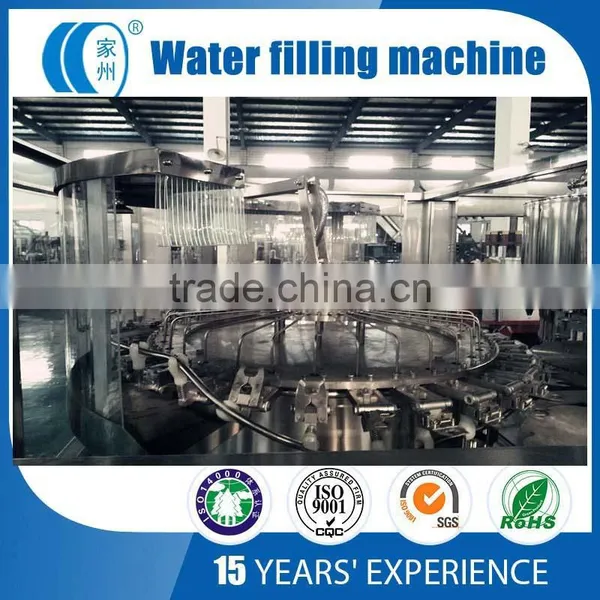

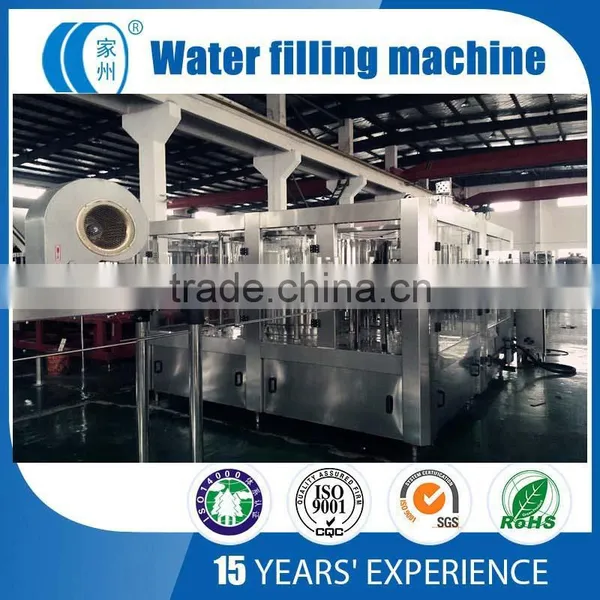

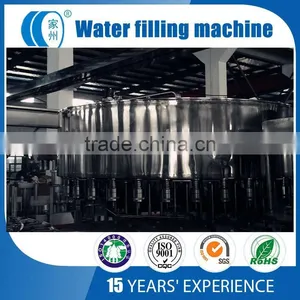

Product display Best price monobloc water filling machine manufacturer

Best price monobloc water filling machine manufacturer



Best price monobloc water filling machine manufacturer



Best price monobloc water filling machine manufacturer

Product Parameters Best price monobloc water filling machine manufacturer

Capacity(Bottles per Hour)

2500

4000

6000

8000

10000

12000

16000

18000

Nos of Rinsing head

8

14

16

18

20

24

32

40

Nos of Filling head

8

12

16

18

20

24

32

40

Nos of Capping head

3

5

5

8

8

10

12

12

Applicable Bottle Diameter

Φ50 mm ~Φ110 mm

Applicable Bottle Height

150 mm - 320 mm

Applicable Screw Cap Diameter

Φ25 mm ~Φ35 mm

Applicable Screw Cap Height

15 mm - 25 mm

Power Consumption(kw)

2.8

3

3

3.2

3.2

4

5

5

Overall(meter)

2x1.8x2.2

2x1.9x2.4

2.2x2x2.4

2.4x2.2x2.4

2.4x2.2x2.4

3x2.5x2.5

3.5x2.5x2.5

3.6x3.3x2.5
