Small Capacity Water Filling Machine

Small Capacity Water Filling Machine thumbnail-1
Small Capacity Water Filling Machine thumbnail-2
Small Capacity Water Filling Machine thumbnail-3
Small Capacity Water Filling Machine thumbnail-4
Small Capacity Water Filling Machine photo-1
Small Capacity Water Filling Machine photo-2
Small Capacity Water Filling Machine photo-3
Small Capacity Water Filling Machine photo-4
US$ 10,000 - 50,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Source:
Ground
Packaging:
Plastic Bottle
Certification:
ISO
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI for water filling machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Source Ground
Packaging Plastic Bottle
Certification ISO
Shelf Life 12 MONTHS
Volume (L) 0.5
Place of Origin Jiangsu, China
Brand Name JZ
Model Number CGF

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Small Capacity Water Filling Machine


water 3-in-1 machine

mineral water bottle filling machines
1. Introduction to the equipment
Bottled water bottling machine is developed by applying lots of new technologies, new techniques and new structures with the quality ranking leading in the industry. It features that the neck of bottle is clamped between the bottle clamping plate and upper plate, and it is driven by star wheel, then bottle clamp plate may rotate to convey bottle, thus achieving fully automatic bottle washing, bottling and capping with the advantages of low wear, simple bottle replacement, accurate and stable conveying and scientific procedures. Additionally, all parts which contact with fluid are made of imported quality stainless steel material or wear resistant, ozone resistant and food class engineering plastic, the electric systems are imported elements, and the sanitation meets the state standard with stable and reliable performance, low fault rate, automatic control and complete after sale service, therefore, it has earned high popularity from domestic and foreign clients as the ideal bottling equipment for various soft beverage manufacturers.
Applicable for: mineral water, purified water etc.
Applicable container: various PET bottles with different capacities and shapes
Bottling system: gravity bottling, low vacuum bottling etc.
Production capacity: 3000 bottle/h - 42000 bottle/h

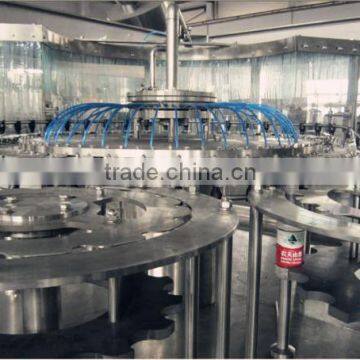

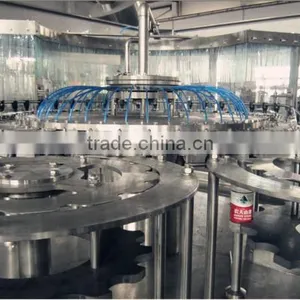

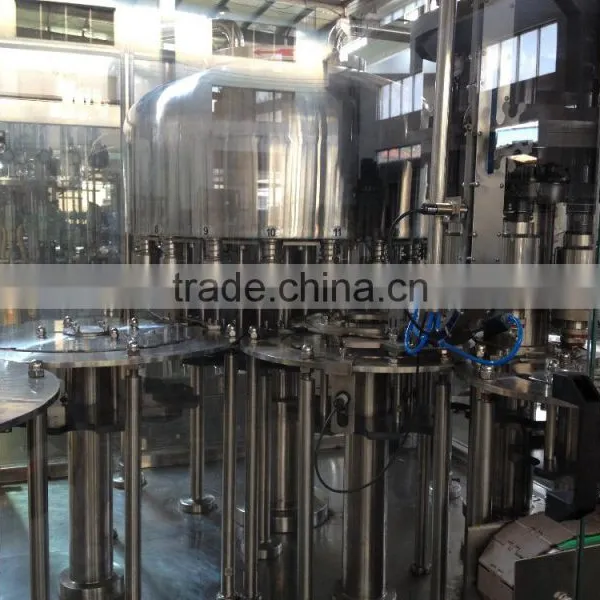

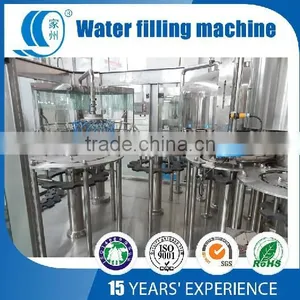

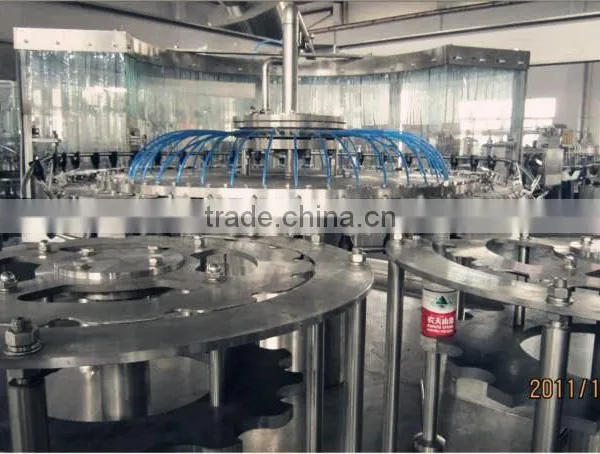

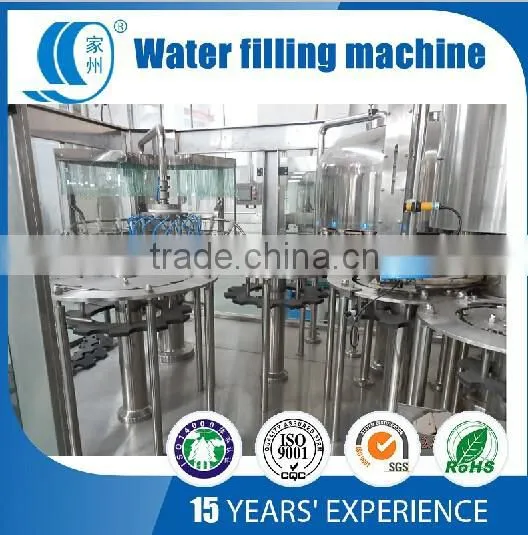

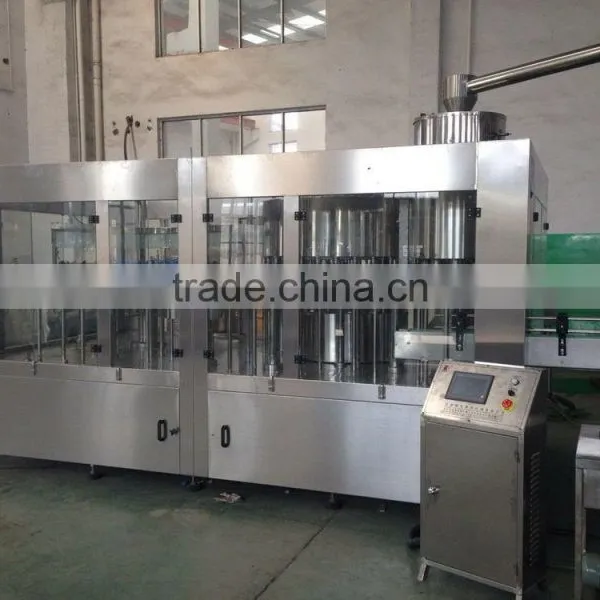

Product display Small Capacity Water Filling Machine
 Small Capacity Water Filling MachineSmall Capacity Water Filling MachineSmall Capacity Water Filling Machine
Product Parameters Small Capacity Water Filling Machine
Model CGF
18186		 CGF
24248		 CGF
323212		 CGF
404015		 CGF
505018		 CGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
