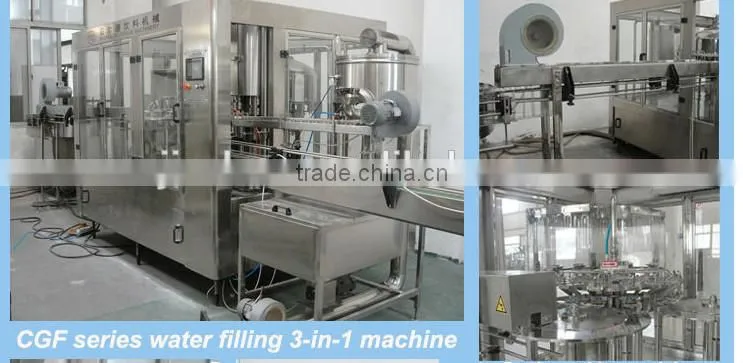

High quality full automatic small bottle filling machine
PET bottle water production machine/filling line
1. Features
1. The whole machine is controlled by PLC with touch-screen as the human-machine interface.
2. The empty bottles can be turned over 180°along the conveying rail. Rinsing the bottles inside and outside.
3. The machine is used in production of bottled non-carbonated drink of fruit juice, fruit wine, mineral water and pure water.
4. The magnetic torque is used for screw capping.
5. The efficiency of bottle rinsing is high.
6. Spring cramps are used in the bottle rinsing process.
7. The filling and capping will be stopped automatically when there is no bottle.
The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.
2. Parameters
Model |
CGZ14-12-5 |
CGZ18-18-6 |
CGZ24-24-8 |
CGZ32-32-8 |
CGZ40-40-10 |
Washing heads |
14 |
18 |
24 |
32 |
40 |
Filling heads |
12 |
18 |
24 |
32 |
40 |
Capping heads |
5 |
6 |
8 |
8 |
10 |
Capacity(b/p)500ml |
2000-4000 |
5000-6000 |
8000-10000 |
10000-15000 |
16000-20000 |
Power motor(kw) |
2.2 |
3.5 |
4.5 |
5.5 |
5.5 |
Dimension(mm) |
2100x1400x2500
|
2460x1720x2650
|
3100x2100x2650
|
3500x2500x2650
|
4600x1800x2650
|
