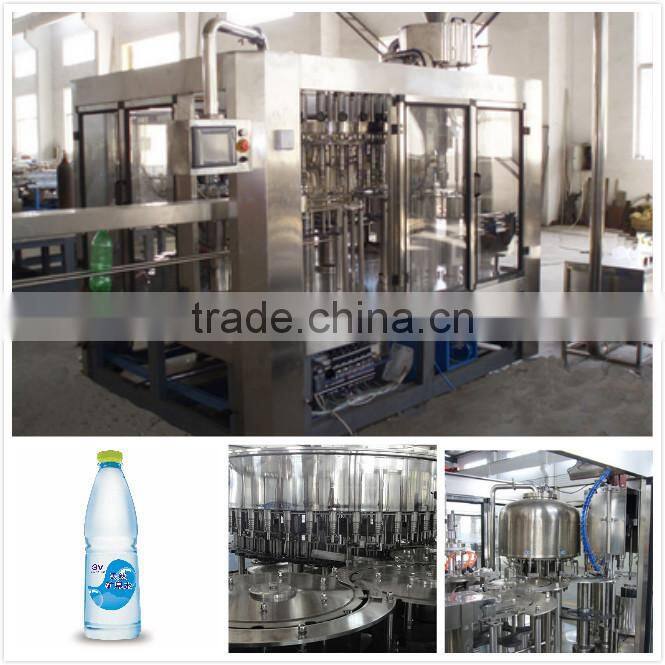

Mineral Water Bottle Filling Machine
US$ 10,000 - 50,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
JZ
Model Number:
CGF
Certification:
ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Bottle Water Making Machinery/bottle Filling MachineUS$ 10,000 - 30,000MOQ: 1 Unit -
Monoblock PET Bottle Water Filling MachineUS$ 10,000 - 50,000MOQ: 1 Unit
-
Mineral Water Filling Machine /machineryUS$ 10,000 - 30,000MOQ: 1 Unit
-
3 In 1 Mineral Water Plant Filling Machinery For Plastic Bottle WaterNegotiableMOQ: 1 Set
-
Professional Manufacturer 3-in-1 Unit Pure Water Filling Machine/bottled Water Filling MachineUS$ 10,000 - 50,000MOQ: 1 Unit
Brand Name
JZ
Model Number
CGF
Certification
ISO
mineral water bottle filling machines

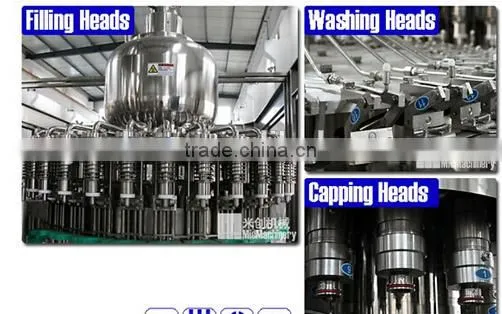

This series of mineral Water Filling Machine are applied to the production of pure water, mineral water, it integrates bottle washing, filling and capping into one body of this machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Main Feature:
- This machine has a compact structure, perfect control system, easy to operate and highly automated.
- The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
- By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
- The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
- This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
- Equipped with perfect clean management system to ensure the bottle clean.
- Only by changing the star-wheel, can realize to fill the changed bottle shape.
- The machine adopts perfect overload protective device can ensure the operator and machine safe.
- This machine adopts adjustable frequency converter.
- The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
- The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
- The electric components and pneumatic components are all introduced from world famous brand products.
Origin of Main Parts
Item | Part Name | Brand name | |
1 | Frequency converters | MITSUBISHI |
|
2 | PLC | MITSUBISHI |
|
3 | Touch screen | MITSUBISHI |
|
4 | Electricity panel | Well organized |
|
5 | Photoelectricity Control parts | OMRON |
|
6 | Pump | CHINA |
|
Main Technical parameters
| |||||||
Model | CGF16126 | CGF18186 | CGF24248 | CGF32328 | CGF404010 | CGF505012 | CGF606015 |
Heads | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 |
Production | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
Suitable bottle diameter(mm) | φ=50-100 H=170 330-1500ml | ||||||
Spraying pressure | 2~3 | ||||||
Motor power | Main | Main motor 2.2kw | Main motor 3kw | Main motor 4kw | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
Power of | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 4 |
overall dimension | 2100x 1400x 2500 | 2460x | 3100x 2100x 2650 | 3500x 2500x 2650 | 4600x 1800x 2650 | 5200x | 6500x 4500x 3400 |
Weight | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | 9800 |
