Product Detail
1. Grade: 300 Series
2. Standard: GB/T5330 Q/9Dn1-2015
3.Brand name:bashan
4.Place of Origin: Henan China (Mainland)
Product Description
304 stainless steel woven wire mesh
| Product Name | 304 stainless steel woven wire mesh | ||
| Aperture size | 500um | ||
| Wire diameter | 0.315mm | ||
| weave style | plain weave,twilled weave,dutch | ||
| material | 304 304L 316 316L | ||
| Standard | GB/T5330 Q/9Dn1-2015,HB1962-1993,ISO9044-1999 | ||
304 stainless steel woven wire mesh
1)Features: smooth surface, no rust, corrosion resistance, non-toxic, health, environmental protection
2)Performance: heat resistance, acid resistance, corrosion resistance, wear resistance
3)Use: stainless steel net is widely used in mining, chemical, food, petroleum, medicine and other lines, mainly used for gas, liquid filtration and other media separation with stainless steel mesh parameters
| Mesh NO | Aperture size(mm) | Wire diameter (mm) | Screen area(%) | Mesh/Inch | Weight per unit area(kg/m²) |
| 35 | 0.50 | 0.315 | 38 | 31.2 | 1.54 |

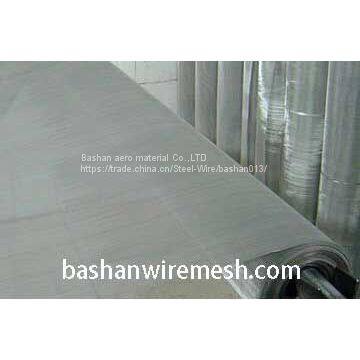

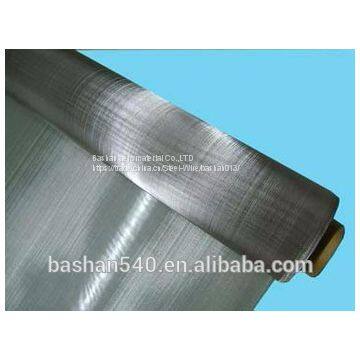

Detailed Images
304 stainless steel woven wire mesh
Products in strict accordance with the aviation standards HB1862-93 and national standards GB / T5330-2003 standards, GB / T6003.1-1997 organization of production, there are two kinds of plain and twill. Sieve size 6.00 ~ 0.020 mm (3 ~ 635 mesh / inch).
304 stainless steel woven wire mesh
1.Chemical 2.Oil
3.Pharmaceutical 4.Electronic
5.Printing 6.Mechanical
Our Company
Xinxiang Bashan Aero Material Co., Ltd.Bashan factory affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, metal wire mesh, filter element, special filtration component and wire thread insert.
In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)

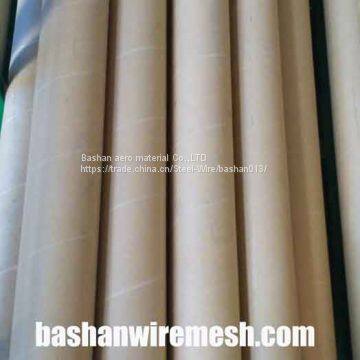

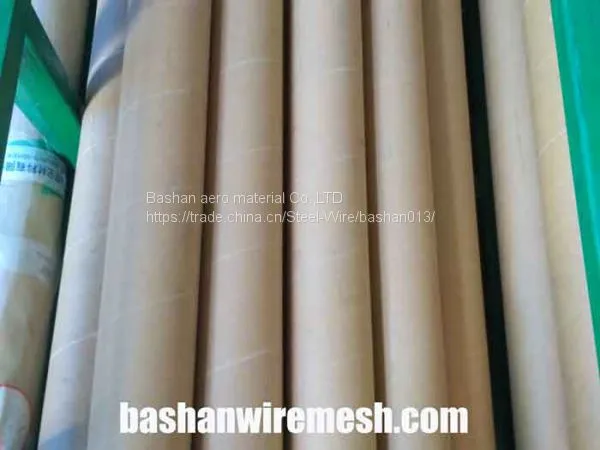

Packing details
304 stainless steel woven wire mesh
standard packing:
wrapped with waterproof paper+plastic filmbags.
other packing:
cartions or pallets
Our advantages60 years experience
The company engaged in wire drawing, cold metal mesh silk processing and products with a history of 60 years
Quality guaranteePassed ISO9001:2008 quality certificate
Passed ISO/TS16949:2009 certificate
Passed GJB9001A-2001 military quality certificate.
We offer 24 hours of online service, whenever you have any questions please contact us.
01.long history
02.modern techniques
03.Specialized management
04.Perfect service
05.Complete specifications
06.Annual output of 1 million Party
