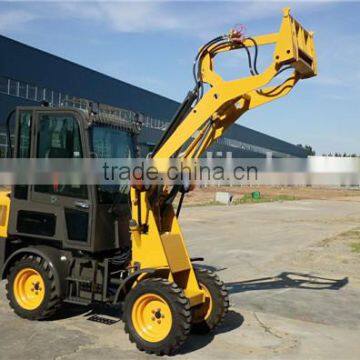

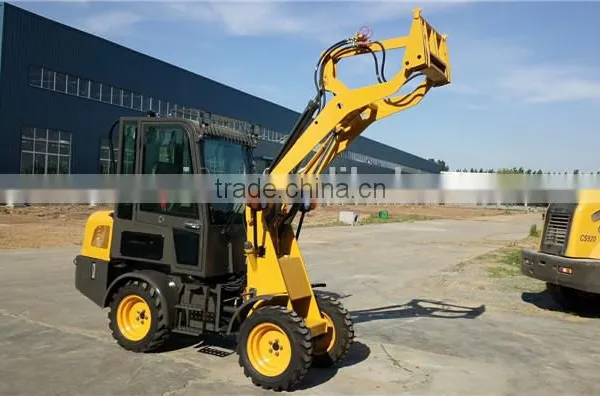

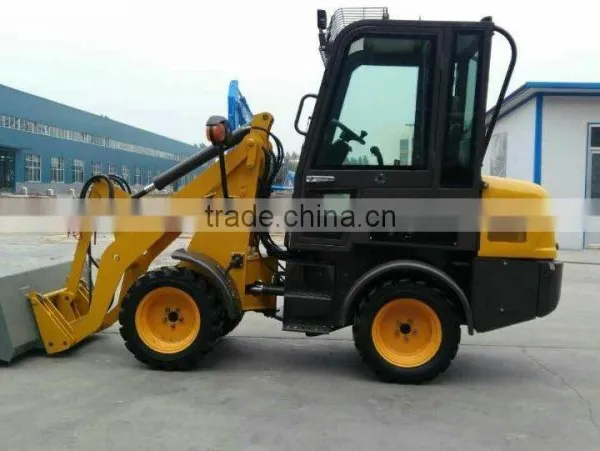

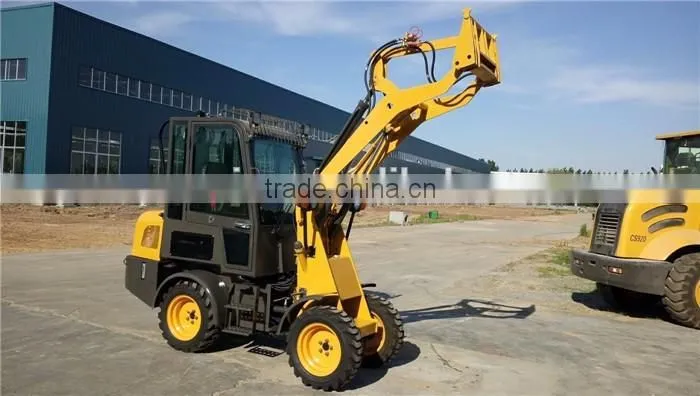

ANSION 800kg mini shovel loader ZL08F
1) Hydrostatic transmission with best Variable piston pump
2) USA EATON Motor3) Hydraulic 4x4 drive axles
4) Standard European quick hitch with 4-ways pump
5) New-type parallel lift work device
6) USA Goodyear pipelines
7) CHANGCHAI or Japan Yanmar engine
Item | Specification |
Kerb weight | 2650kg(CS910J 2750kg) |
Rated bucket capacity | 0.4m³ |
Rated load | 800kg |
Max. tractive force | 15kN |
Max. breakout force | 15kN |
Max. gradeability | 30% |
Max. dumping height | 2000mm |
Dumping distance | 741mm |
Overall dimension(L*W*H) | 4120*1290*2310mm |
ENGINE |
|
Model | ZN390G |
Type | Inline, direct injection, water cooling |
Rated power | 20kW |
Optional | Yanmar |
Rated power | 18.4 kW |
Displacement | 2.19L |
TRANSMISSION SYSTEM |
|
Hydrostatic transmission | Invariable pump, variable motor |
Type of gear box | Axis-fixed, double reduction |
Gear shift | 2 forward shift, 2 reverse shift |
Max. speed | 12km/h |
DRIVE AXLE |
|
Main transmission type | Spiral gear, first stage deceleration |
TYRE |
|
Type specification | 27*8.5-15 |
Optional |
|
STEERING SYSTEM |
|
Type | Articulated load-sensing hydraulic steering system |
Steering angle | 32°each side |
Min. turning radius | 3790mm |
HYDRAULIC SYSTEM |
|
System working pressure | 18MPa |
Lifting time | 4s |
Total time | 9s |
BRAKE SYSTEM |
|
Service brake | Mechanical internal expanding shoe-type |
Parking brake | Manual internal expanding shoe-type |
FILL CAPACITY |
|
Fuel | 14L |
Hydraulic oil | 20L |
