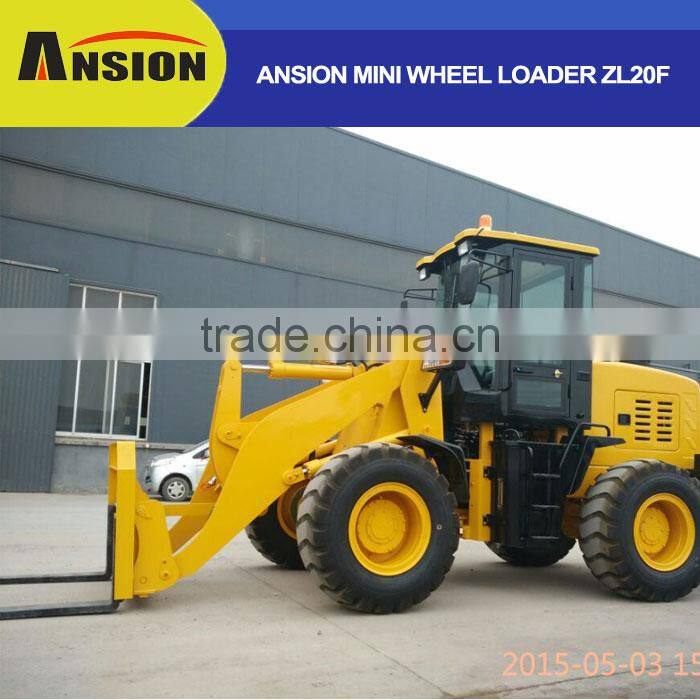

ANSION mini wheel loader ZL20F with 1210 mm fork
ANSION mini loader ZL20F is equipped with 1210mm fork for 2 ton rated load, 65kW turbocharged engine and powershift transmission, which is widely used for road maintenance, construcion and wood factory etc.
Specification | |
Rated load | 2000 kg |
Operating weight | 4800kg |
Rated bucket | 1210 mm fork |
Max.tractive force | ≥45KN |
Max.breakout force | ≥48KN |
Gradeability | 30o |
Max.dumping height | 3200mm |
Max.dumping reach | 1000mm |
Overall dimension | 5900×1900×2800mm |
Min.turning radius | 4367mm |
Engine | |
Model | YUNNEI YN33GBZ |
Rated power | 65kw—2400r/min |
Max.torque | 250N.m |
Min.fuel consumption | ≤243g/kw.h |
Transmission | |
Torque convertor | YJ—265 |
Gearbox | Powershift |
Gear shift | F2R1 |
Max.speed | 24km/h |
Axles | |
Wheel base | 2150mm |
Wheel tread | 1440mm |
Min.ground clearance | 310mm |
Hydraulic system | |
System working pressure | 16MPa |
boom lifting time | 4.8s±0.2s |
total cycling time | 9.2s±0.5s |
fuel tank | 80L |
bucket auto leveling | yes |
braking system | |
service brake | Air over hydraulic disc |
parking brake | Cable controled drum |
tyres | |
type | 16/70—20 |
front pressure | 0.22Mpa |
rear pressure | 0.18Mpa |
