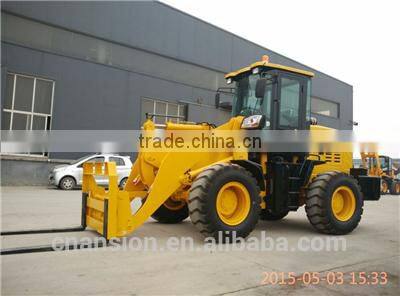

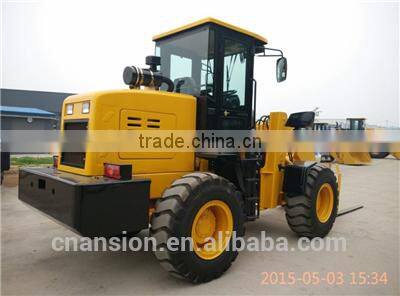

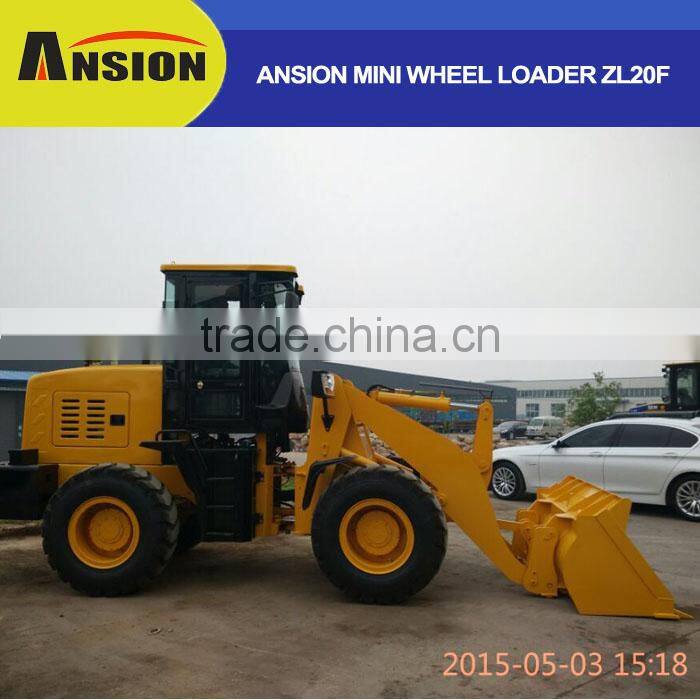

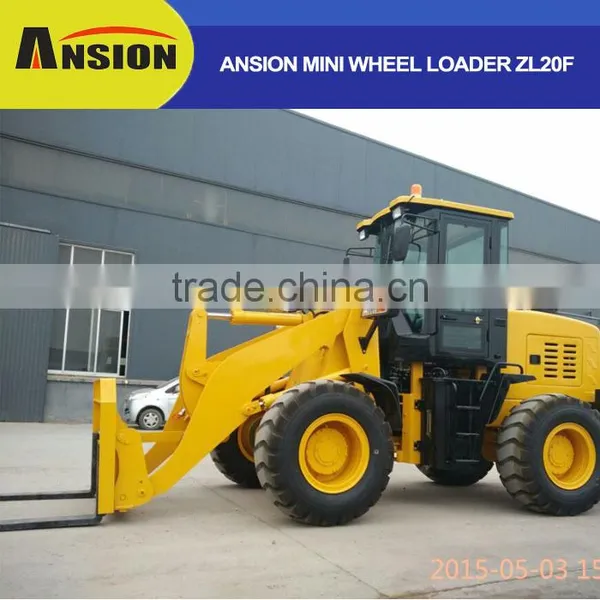

ANSION mini wheel loader ZL20F with 1,1 m3 bucket
ANSION mini loader ZL20F is equipped with 1.1 m3 bucket for 2 ton rated load, 65kW turbocharged engine and powershift transmission, which is widely used for road maintenance, construcion and wood factory etc.
Specification | |
Rated load | 2000 kg |
Operating weight | 4800kg |
Rated bucket | 1.1m3 |
Max.tractive force | ≥45KN |
Max.breakout force | ≥48KN |
Gradeability | 30o |
Max.dumping height | 3200mm |
Max.dumping reach | 1000mm |
Overall dimension | 5900×1900×2800mm |
Min.turning radius | 4367mm |
Engine | |
Model | YUNNEI YN33GBZ |
Rated power | 65kw—2400r/min |
Max.torque | 250N.m |
Min.fuel consumption | ≤243g/kw.h |
Transmission | |
Torque convertor | YJ—265 |
Gearbox | Powershift |
Gear shift | F2R1 |
Max.speed | 24km/h |
Axles | |
Wheel base | 2150mm |
Wheel tread | 1440mm |
Min.ground clearance | 310mm |
Hydraulic system | |
System working pressure | 16MPa |
boom lifting time | 4.8s±0.2s |
total cycling time | 9.2s±0.5s |
fuel tank | 80L |
bucket auto leveling | yes |
braking system | |
service brake | Air over hydraulic disc |
parking brake | Cable controled drum |
tyres | |
type | 16/70—20 |
front pressure | 0.22Mpa |
rear pressure | 0.18Mpa |
1.Why choose us ?
As a wheel loader supplier with more than 20 years, we provide professional technical support and excellent after-sale service and parts supplying.
2.How can I get the parts if ANSION wheel loaders break down?
Within warranty ( 1 year or 2000 hours), we would provide the parts for free and you just need to pay for the freight.
Over the warranty, we would still provide the parts, but you need to pay the parts and the freight.
All in all, you don't need to worry about the parts supplying.
As we are an reliable supplier and can supply you with the parts in time.
Top Wheel Loader Manufacturer with 3300 m3 working plant
Our business includes wheel loaders, backhoe loaders, forklift trucks and farm tractors manufacturing and exporting.
We focus on construction and farm machinery manufacturing and exporting for more than 20 years and
sincerely hope to be your reliable supplier.
