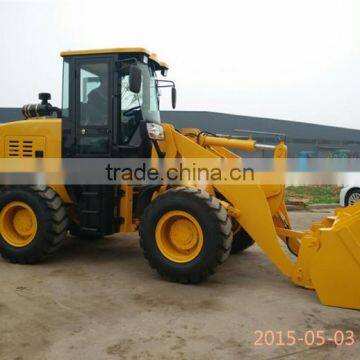

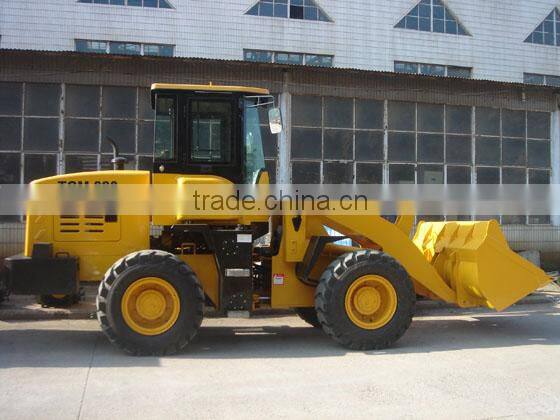

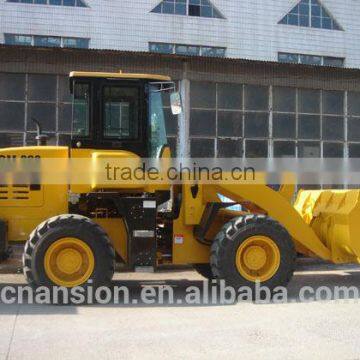

Brand new 2TON hydraulic small wheel loader TCM820
- Mechanical or Hydraulic pilot joystick control
- YUNNEI 88HP turbocharged diesel engine
- 1.1 m3 standard bucket with teeth
- 4.8ton operating weight
- QINGZHOU BEILIAN power shift transmission (F2R2)
- HUALU 4x4 axles with air-over-oil disc brake

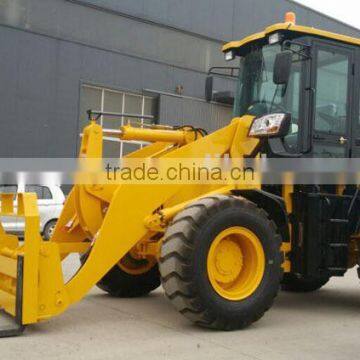

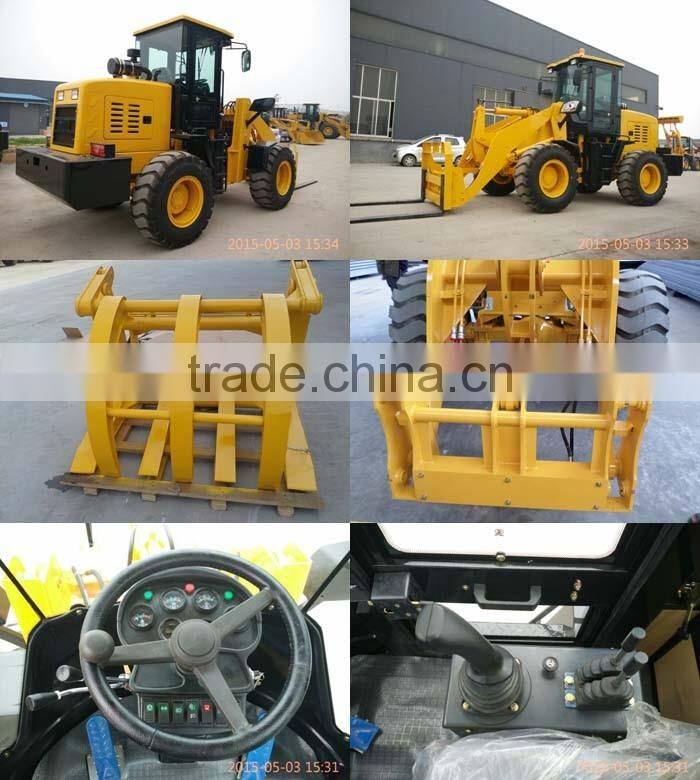

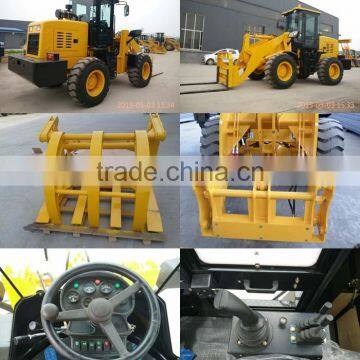

- Pallet fork / Wood grapple / Grass grasper are optional
- Hydraulic articulated chassis
- 16MPa hydraulic working pressure with 45kN tractive force and 48kN breakout force
Parameter for TCM 820 | |
Overal dimension | 5900×1900×2800mm |
Operating weight | 4800 kg |
Bucket capacity | 1.1 m3 |
Dumping height | 3050 mm (changed between 2800~3700mm) |
Dumping distance | 1000 mm |
Rated load capacity | 2000 kg |
Bucket lifting time | 4.8 s |
Total cycling time | 9.2 s |
Engine power | 65kW |
Working pressure | 16 Mpa |
Max.Grade ability | 30% |
Speed | 24 km/h |
Min.Turning radius | 4367 mm |
Ground clearance | 310 mm |
Wheel base | 2150 mm |
Wheel tread | 1440 mm |
Specification | |
Engine | YUNNEI YN33GBZ 65kW @ 2400rpm ( CUMMINS 4BTA3.9-C100 74kW adds US$2500) |
Transmission | Powershift with hydraulic torque converter |
Driving axles | 4x4 |
Tyres | 16/70-20 OTR |

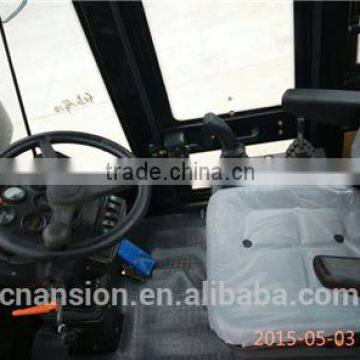

Cab | All view cab with fan; (air conditioner adds US$500) Standard instrument and safety device; Adjustable vibration-absorb seat with restarm |
Front bucket | 1.1 m3 standard bucket with auto leveling function (quick coupler,fork,grapple etc optional) |
Operation type | Pilot control ( Manual control reduces US$500) |
Our business includes wheel loaders, backhoe loaders, forklift trucks manufacturing and exporting.
We focus on construction and farm machinery manufacturing and exporting for more than 20 years and
sincerely hope to be your reliable supplier.
