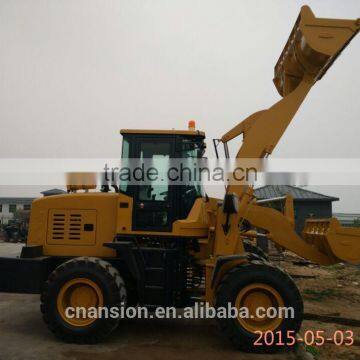

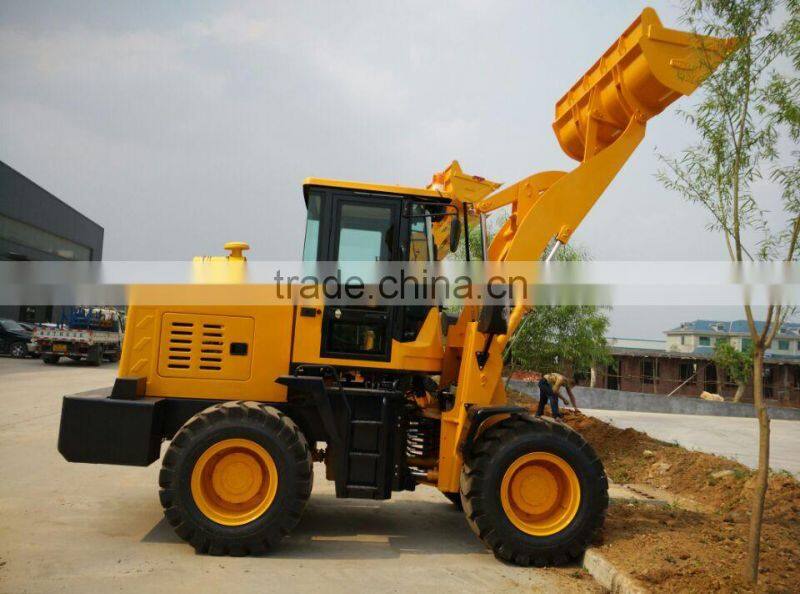

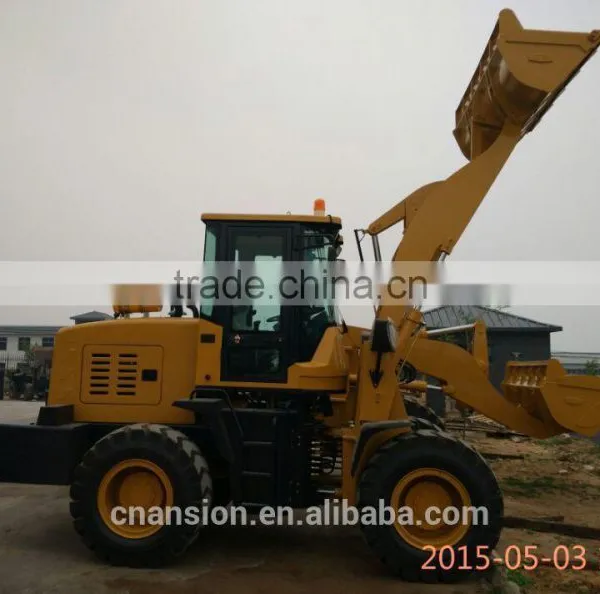

ZL16F Mini Wheel Loader With 80HP CUMMINS Engine and 1.1 m3 Bucket

Parameter for ZL16F

Overal dimension

5900×1900×2800mm

Operating weight

4800 kg

Bucket capacity

1.1 m3

Dumping height

3050 mm (changed between 2800~3700mm)

Dumping distance

1000 mm

Rated load capacity

1600 kg

Bucket lifting time

4.8 s

Total cycling time

9.2 s

Engine power

65kW

Working pressure

16 Mpa

Max.Grade ability

30%

Speed

24 km/h

Min.Turning radius

4367 mm

Ground clearance

310 mm

Wheel base

2150 mm

Wheel tread

1440 mm

Specification

Engine

YUNNEI YN33GBZ 65kW @ 2400rpm ( CUMMINS 4BTA3.9-C100 74kW adds US$2500)

Transmission

Powershift with hydraulic torque converter

Driving axles

4x4

Tyres

16/70-20 OTR

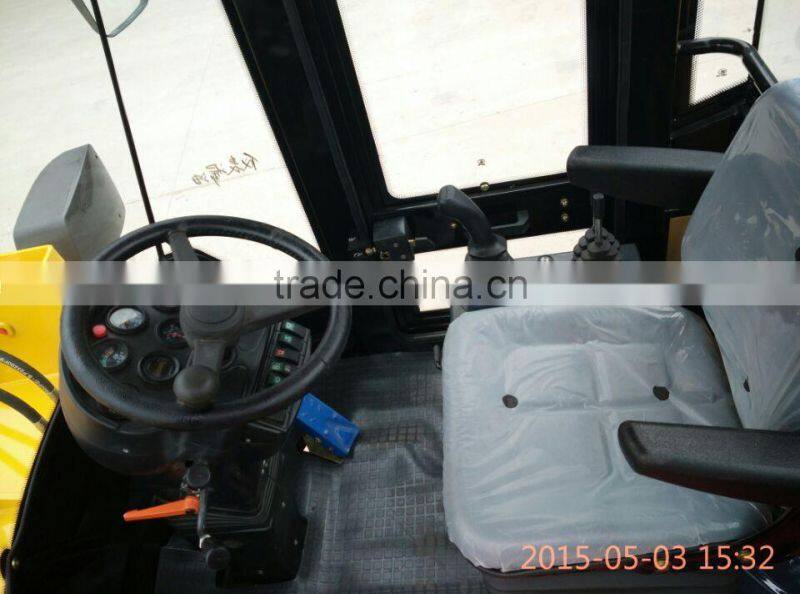

Cab

All view cab with fan; (air conditioner adds US$500)

Standard instrument and safety device;

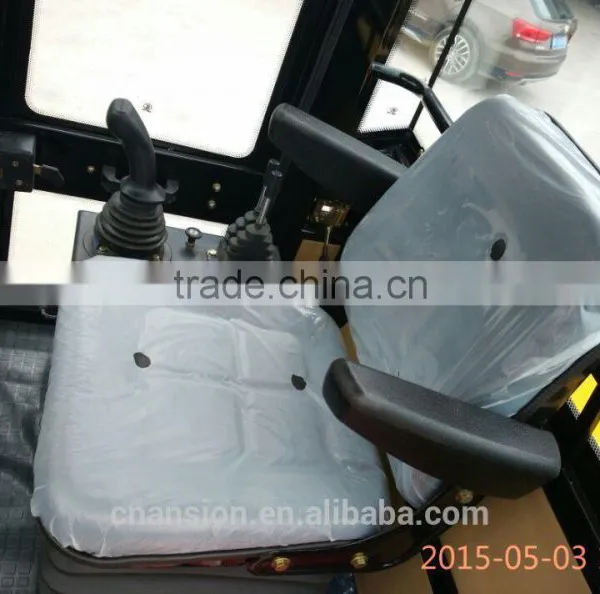

Adjustable vibration-absorb seat with restarm

Front bucket

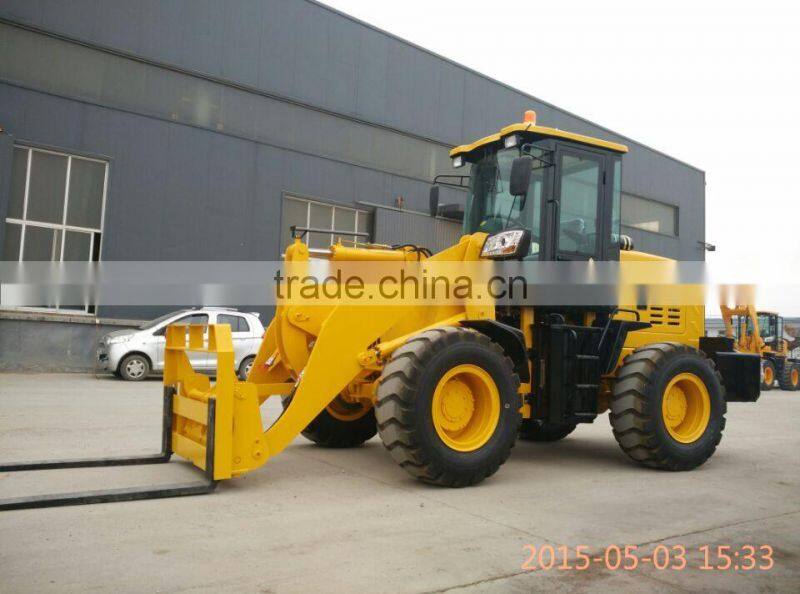

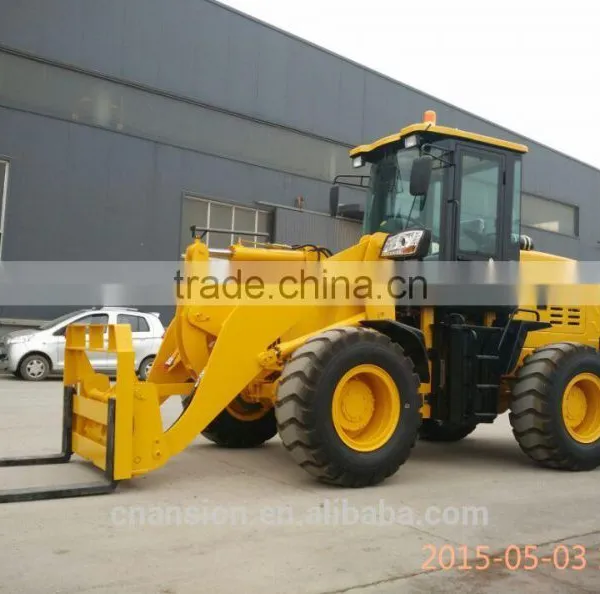

1.1 m3 standard bucket with auto leveling function (quick coupler,fork,grapple etc optional)

Operation type

Pilot control ( Manual control reduces US$500)
