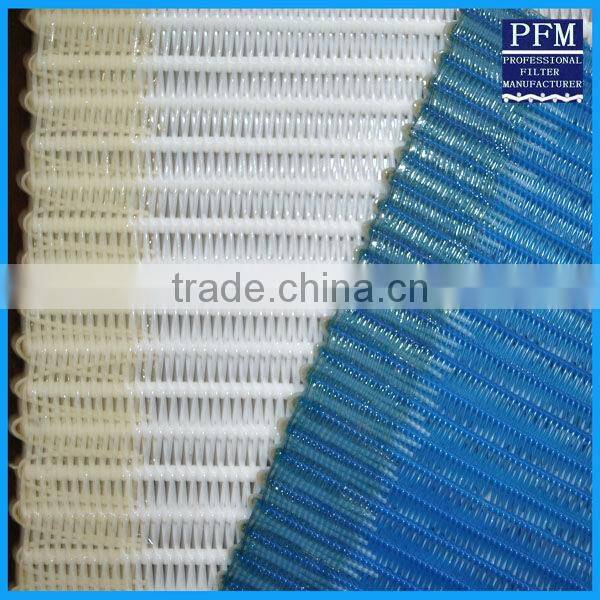

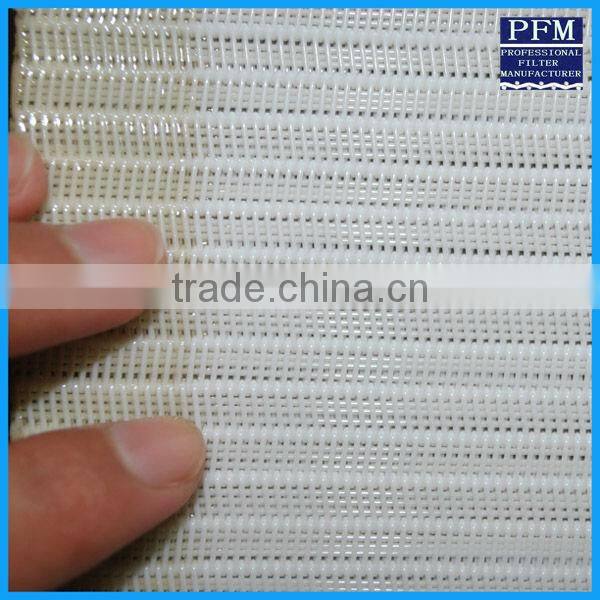

Fruit Belt Press Filter

Specifications

Fruit Belt Press Filter
Started production at 1987,
100%polyester monofilament
Heat resistant
low thermal shrink

Fruit Belt Press Filter





PFM started the production of fruit belt press filter since 1987,and have our products have been exported into more than 30 countries all over the world,such as USA,England,Brazil,South Africa,Kenya,Morocco,Russia,Indoneasia,Singapore,

Pakistan,Malaysia,Thailand,etc.



Polyester fruit belt press filter is made with special first quality yarns in 100% polyester.

Every polyester fruit belt press filter is heat-set granting a high degree of stability and long running life.



Advantages of our polyester fruit belt press filter are among others:

• strength,
• flat surface,
• good air permeability,
• stable property against heat and moisture,
• low thermal shrinking,
• less elongation at heat,
• a long lifespan
• durability,smoothness and good dirt release
• filled or unfilled to achieve different filtration characteristics(Air permeability:250 to over 1000 CFM)

Specifications of polyester fruit belt press filter :



1.Spiral fruit belt press filter



Polyester Spiral Fruit Belt Press Filter Without Stuff
Weaving Type	Model	Thread Diameter (mm)		Air permeability (m³/m²h)
		Warp	Weft
Large Loop	4070	0.9	1.1	20000±500
Medium Loop	3868	0.7	0.9	18500±500
Small Loop	3252	0.52	0.7	15000±500

































Polyester Spiral Belt Press Filter With Stuff
Weaving Type	Model	Thread Diameter (mm)			Air permeability (m³/m²h)
		Warp	Weft	filled with stuff
Large Loop	4070	0.9	1.1	0.9×4	5500±500
				0.9×5	4500±500
Medium Loop	3868	0.7	0.9	0.8×3	4750±500
				0.8×4	4200±500
Small Loop	3252	0.52	0.7	0.68×3	15000±500





2.Dryer Belt Press Filter







Applications of polyester belt press filter :



• Pressing of grapes,fruit and others
• Dewatering of inert sludge from quarries or mines
• Dewatering of biological or chemical sludge from municipality sewage plants
• Filtering and separating in the colliery, food,salt and mine industry
• Pulp making,Sulplate pulp packing and cardboard pulp,
• Fiberboard plants,
• Medicine,printing,drying industry as conveyor belt,
• Pharmacy,environment protection,
• Process hides,shoe-making,clothing,ceramics etc as a conveyor belt.
