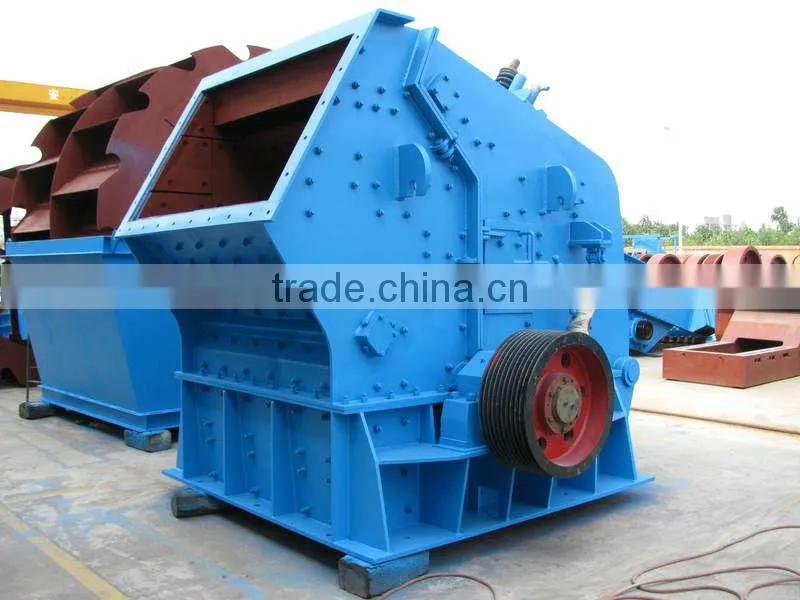

Help CenterHigh Quality Impact Crusher
Related Products
-
Cone Cruser With Big CapacityUS$ 10,000 - 80,000MOQ: 1 Set -
LTC6 Double Drum Mechanical Driving Hydraulic Vibrating Articulated Steering Road RollerUS$ 22,580 - 23,000MOQ: 1 Piece
-
2YJ8X10 and 2YJ6X8 Double Drum Hydraulic Articulated Steering Road RollerUS$ 22,580 - 24,200MOQ: 1 Piece
-
LTJ2125 Double Drum Bridge Type Driving Hydraulic Static Grinding Road RollerUS$ 37,500 - 40,000MOQ: 1 Set
-
LTC203 Double Drum Hydraulic Drive Road RollerUS$ 20,000 - 25,000MOQ: 1 Set
Application of Impact crusher
Impact crusher is used in crush kinds of materials such as fineness below 500mm,and the pressure resistance around 360mpa.It has features of big crushing rate,efficient crushing, easy maintenance and the final production is cubic.It is the deal mining equipment of high road and water conservance.The impact crusher is widely used in high road, water conservance and building linestone mining and so on,with perfect features and good factioning.even in moorstone,limestone and cabble with better suitble features.
Features of Impact Crusher
Impact plate with a special shape,wear- resistant liner plate,specially in hard mining crush,high efficicency and reduction ratio.the final production is cubic shape,required adjustment the output feed fineness,simplifying the process of the crushing.
Technical data of Impact Crusher
| Model | Roller size (mm) | Output size (mm×mm) | Max feed side length (mm) | Pressing power (t/h) | Motor power (kw) | Weight (ex motor) (t) | Overall dimension (L×W×H) (mm) |
| PF-1007 | φ1000×700 | 400×700 | 300 | 37-45 | 55 | 9.5 | 2400×1558×2660 |
| PF-1010 | φ1000×1050 | 400×1080 | 350 | 50-80 | 75 | 12.2 | 2400×2250×2660 |
| PF-1210 | φ1250×1050 | 400×1080 | 350 | 70-120 | 110 | 14.1 | 2690×2338×2890 |
| PF-1214 | φ1250×1400 | 400×1080 | 350 | 80-180 | 132 | 18.6 | 2690×2688×2890 |
| PF-1315 | φ1300×1500 | 860×1520 | 500 | 150-220 | 200 | 24 | 2860×2800×3050 |
| PF-1316 | φ1320×1600 | 1690×860 | 500 | 170-280 | 200 | 25.5 | 3096×2850×3050 |
