LTC203 Double Drum Hydraulic Drive Road Roller

FOB Price

US$ 20,000 - 25,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Double Drum Roller
Static Linear Pressure	120N/cm	Travel Speed	0-8 km/h
Grade Ability	30%	Place of Origin	Henan, China
Brand Name	OEM	Model Number	LTC203
Power(W)	23KW	Dimension(LWH)	2760x1400x2430mm
Weight	3000	Certification	QS,CE
After-sales Service Provided	Engineers available to service machinery overseas

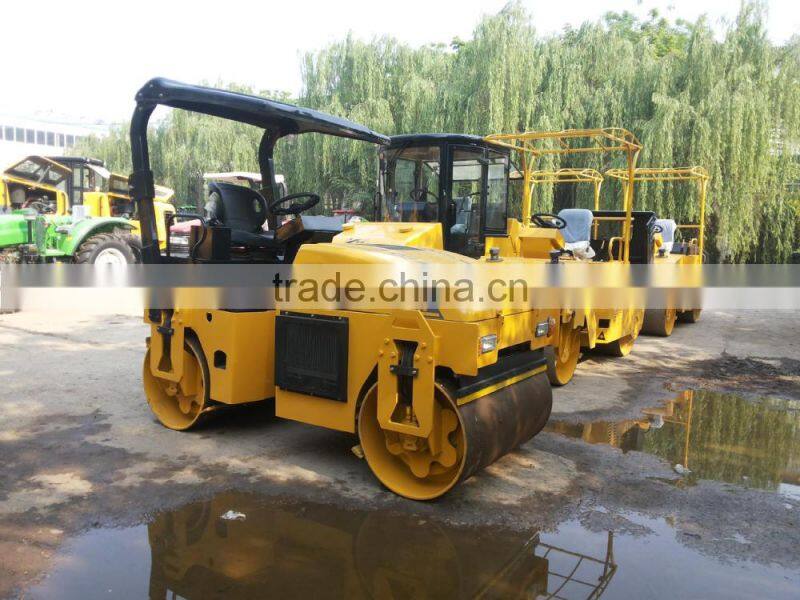

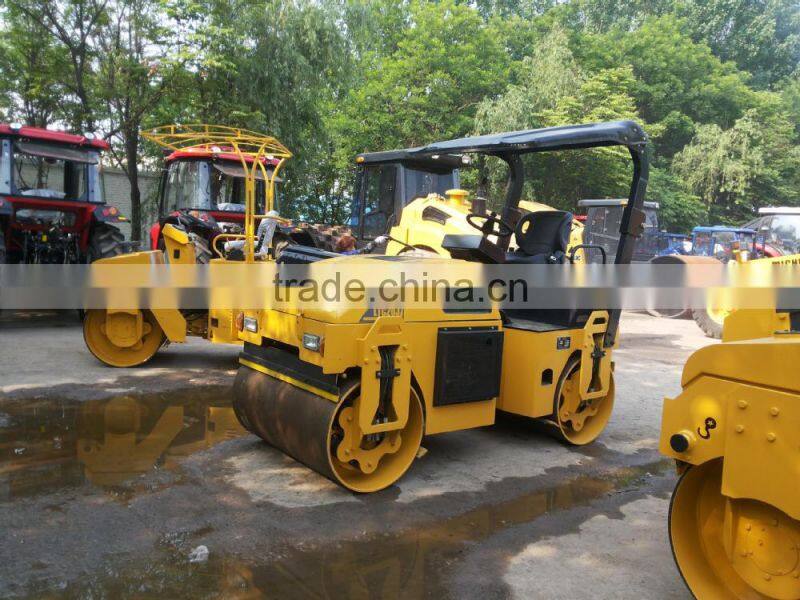

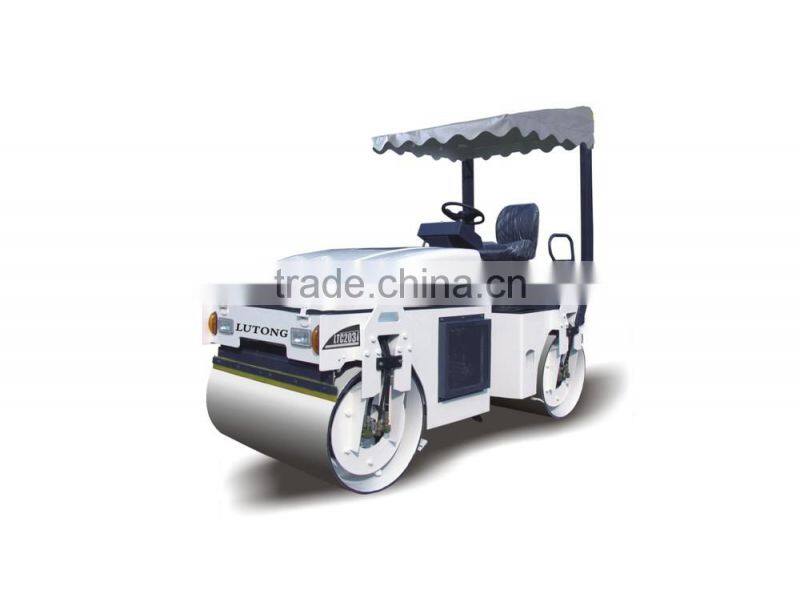

LTC203 double drum hydraulic drive road roller

Product Description

Standard configuration

1.Hydraulic full-wheel drive ,full-wheel vibrating,articulated steering,CVT

2.Engine:adopt changchaiZN390Q engine;

3.Driving hydraulic element:the products of SAUER are adopted;

4.Vibrating system: adopt joint venture brand's gear pump,motor;

5.Both front and rear wheels have scrapign and water spray unit;

6.With a useful Anti-roll awning.

Main Technical Parameters

MODEL	LTC203
Operating mass	3000
Static linear load	120
Vibration frequency	0.5
centrifugal force	2x30
Vibration frequency	50
Travel speed	0-8
Grade ability	30
Steering angle	±30
Overall dimension	2760x1400x2430
Drum diameter	700
Drum width	1250
Wheelbase	2100
Diesel power	23
rated speed	2400
diameter X travel	90x95
Diesel model	ZN390Q
discharge volume	408
electrical system	12V
fuel consumption	250
fuel oil capacity	60
hydraulic oil capacity	80
water tank capacity	87
water radiator capacity	15
hydraulic radiator capacity	5

Main Featuers

1.Hydraulic double wheels drive,hydraulic double wheels vibrating and steering,with reliable performance and optimun function/price ratio.
2.Both front and rear wheels have scraping and water spray unit;
3.Adopt N390 diesel engine,very convenient for use and maintenance;
4.Compact integral structure,small volume,capable of used for compaction on narrow site.

Packaging & Shipping

Fixed it in the container with the steel wire rope and the fasten tie

Our Services

Engineers available to service machinery oversales
