Home > Products > Mining machinery > LTC6 Double Drum Mechanical Driving Hydraulic Vibrating Articulated Steering Road Roller

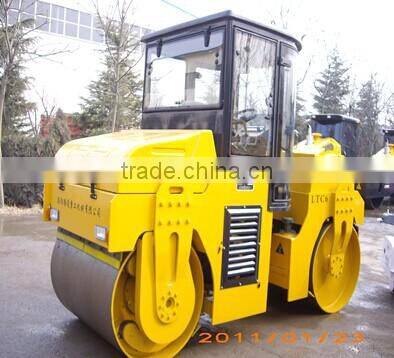

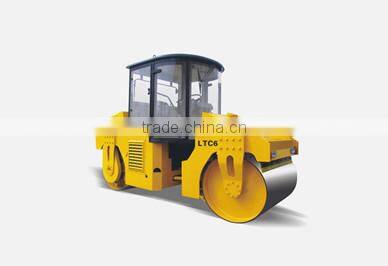

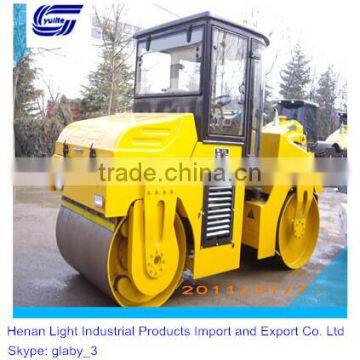

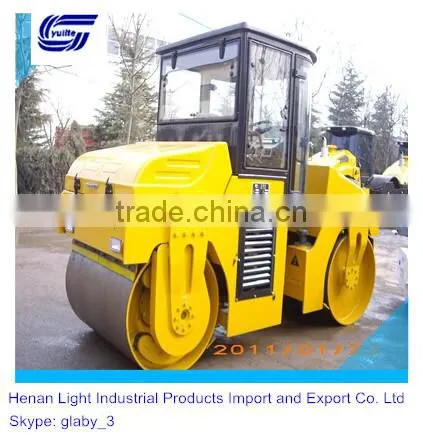

LTC6 Double Drum Mechanical Driving Hydraulic Vibrating Articulated Steering Road Roller

FOB Price

US$ 22,580 - 23,000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Double Drum Roller
Grade Ability	20%	Place of Origin	Henan, China
Brand Name	OEM	Model Number	LTC6
Dimension(LWH)	3690x1600x2700MM	Weight	6T
Certification	QS, CE	After-sales Service Provided	Engineers available to service machinery overseas

LTC6 double drum mechanical driving hydraulic vibrating articulated steering road roller

Product Description

Standard configuration
Model	Engine	other
LTC6	498BG	1.Mechanical driving,hydraulic vibrating,articulated steering;
		2.Front and rear wheel has scraper and electrical sprinkler;
		3.Hydraulic power assisted clutch and shoe type brake;
		4.Ordinary cab.

Main Technical Parameters
MODEL		LTC6
iw	kg	6000
Static linear load	N/cm	232.4
Drum diameter	mm	950
Rolling width	mm	1320
Centrifugal force	kN	55
Centrifugal movement	KN.m
Oscillation frequency	Hz	46
Oriental vibration amplitude	mm	0.62
Oscillation amplitude
Travel speed 1st gear2ndgear	km/h	2.5/7.5
Grade ability	%	>20
Diesel model		498BG
Diesel speed	r/min	2200
Diesel power	kw	42
fuel consumption	g/kw.h	245
Overall dimension	mm	3690x1600x2700
fuel oil capacity	L	65
hydraulic oil capacity	L	90
water tank capacity	L	435
water radiator capacity	L	18
hydraulic radiator capacity	L	5
eletrical system	V	12

Main Features
1.Hydraulic vibration ,great centrifugal force and high compactness.
2.This roller has articulated frame,hydraulic steering,small turning raming radius and flexible.
3.Anricorrosive spray water system and fool capacity water tank and electric pressurized sprinkler.
4.Shock-proof sock absorber for long life and operate comfortable.
5.Close performance is extremely fine and work close building.
6.Secure hydraulic brake.

Payment Terms:

By TT. 30% deposit should be paid after signing contract, and 70% should be paid before goods delivery from the factory.

Delivery Time:Within 35days after receiving deposit.

Packaging & Shipping

Fixed it in the container with the steel wire rope and the fasten tie

Our Services

Engineers available to service machinery oversales

Guarantee Time: One year or 1500 working hours which comes first after the date of B/L.

Shipping by/in: two unit2*40HQ.
