Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Compactor > LTJ2125 Double Drum Bridge Type Driving Hydraulic Static Grinding Road Roller

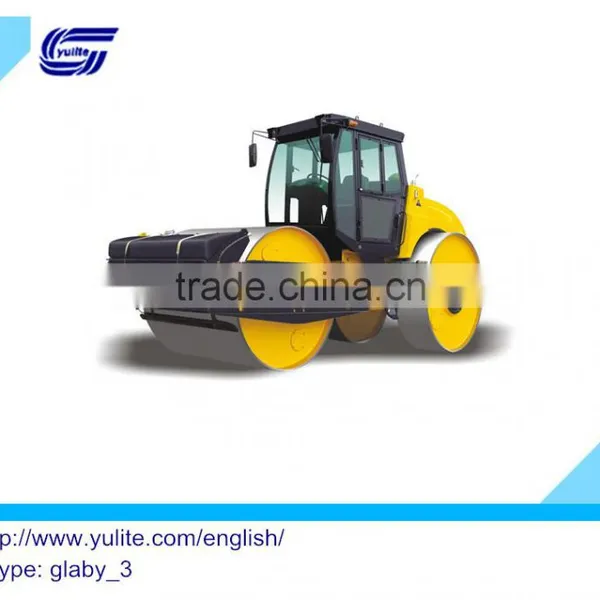

LTJ2125 Double Drum Bridge Type Driving Hydraulic Static Grinding Road Roller

US$ 37,500 - 40,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Double Drum Roller

Grade Ability:

30%

Contact Supplier Request Quote Chat Now

Henan Light Industrial Products Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Double Drum Roller

Grade Ability 30%

Brand Name OEM

Model Number LTJ2125

Power(W) 88 KW

Dimension(L*W*H) 5700*2300*3000 mm

Weight 21000KG

Certification QS, CE

After-sales Service Provided Engineers available to service machinery overseas

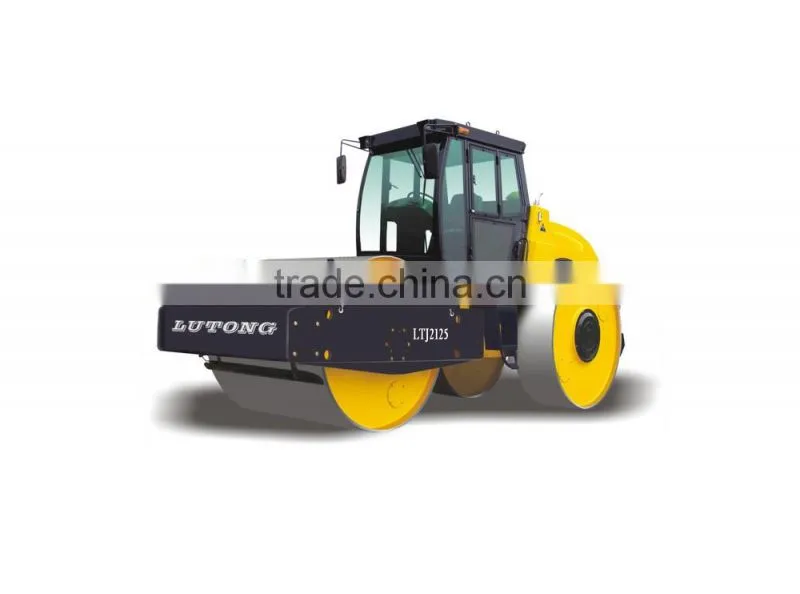

LTJ2125 double drum bridge type driving hydraulic static grinding road roller

Product Description

Standard configuration

1.Static grinding,articulated short the body structure,cab mid-engine,working in a great view;
2.Hydraulic steering,low gravity toward the steering wheel deft and flexible;
3.Bridge type driving,hydraulic booster embedded disk brake,brake good,the two sets of brake system, safe and reliable;
4.Cab adopt glass that against ultraviolet ray;
5.Equipped with large capacity and dynamic sprinkler system

Main Technical Parameters

MODEL		LTJ2125	MODEL		LTJ2125
Operating mass			Overall length	mm	5700
Without ballast	kg	21000	Overall width	mm	2300
With ballast		25000	Overall height	mm	3000
Front linear load			Front wheel size	mm
Without ballast	N/cm	575	Width		1680
With ballast		650	Diameter		1500
Rear linear load		1200	Rear wheel size	mm
Without ballast	N/cm	1358	Width		530
With ballast			Diameter		1700
Travel speed			Wheelbase	mm	2945
1st gear	Km/h	2.0	Ground clearance	mm	370
2nd gear		4.0	Diesel model		YC6B120
3rd gear		9.6	Diesel power	Kw	88
Grade ability	%	30	Diesel speed	r/min	2000
Turning radius	mm		Fuel tank capacity	L	200
Inside		5180	Elecrical voltage	V	24
Outside		7500	Hydraulic tank capacity	L	40
Steering angle		±35

Main Features

1.Steady quality,serial products coverwide applications.
2.Electric power sprinkler device.
3.Low gravity center,good stability.
4.Spacious and comfortable cab,with broad visual view.
5.Central articulated hydraulic steering for flexible turning and concenient operation.
