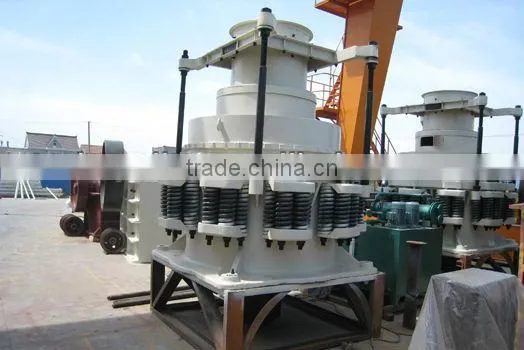

Cone Cruser With Big Capacity

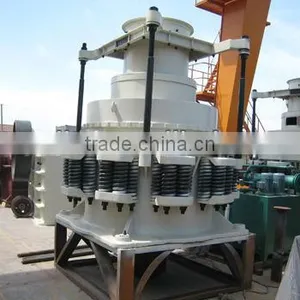

Cone Cruser With Big Capacity thumbnail-1
Cone Cruser With Big Capacity photo-1
US$ 10,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cone Crusher
Application:
stone crushing,mining
Contact Supplier Request Quote Chat Now
Henan Light Industrial Products Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Cone Crusher
Application stone crushing,mining
Motor Type AC Motor
Power(W) 55~280
Capacity(t/h) 30~500
Place of Origin Henan, China
Brand Name YULITE
Model Number 3 ft
Dimension(L*W*H) as per model
Weight 10~220 t
Certification ISO9001
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Application of cone crusher









Cone Crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. Compared with Jaw Crusher, Spring Cone Crusher is of stable structure, high efficiency, easy adjustment, and economical using etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the Cone Crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make sure reliable performance. This type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.





Working Principle of  Cone Crusher



Cone Crusher crushes   materials by the working surface between the movable cone and fixed cone. So it   is more advanced and efficiency than Jaw Crusher. The movable cone is supported   by spherical bearing and fixed on an hanging erect shaft which is set in the   eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The   movable cone and erect shaft are driven by the eccentric shaft sleeve together.   The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear,   and the wheel of the conveyor belt is driven by motor through v-belts. The lower   part of vertical shaft is installed in the eccentric sleeve. When the eccentric   sleeve rotates, there is a conical surface lined out by the shaft. When the   movable cone comes near the fixed cone, rocks are grinded into pieces, when the   cone leaves, grinded materials is discharged from the discharge hole. The fixed   cone can be ascended or descended by adjusting setting to adjust the width of   discharge hole, consequently the output size is determined.





Techncial data of cone cruser



Model Diameter of Bottom End of Conical Crushing Head  (mm) Max feed size (mm) Adjustable Range of Discharge Opening (mm) Capacity  (t/h) Power (KW) Speed of Eccentric Shaft (r/min) Weight (t) Overall Dimensions (mm)
PYB600 600 75 12-25 20-40 30 356 5 2234x1370x1675
PYD600 600 40 2-13 12-23 30 356 5.5 2234x1370x1675
PYB900 900 115 15-50 50-90 55 333 11.2 2690×1640×2350
PYZ900 900 60 5-20 20-65 55 333 11.2 2690×1640×2350
PYD900 900 50 3-13 15-50 55 333 11.3 2690×1640×2350
PYB1200 1200 145 20-50 110-168 110 300 24.7 2790×1878×2844
PYZ1200 1200 100 8-25 42-135 110 300 25 2790×1878×2844
PYD1200 1200 55 3-15 18-105 110 300 25.3 2790×1878×2844
PYB1750 1750 215 25-50 280-480 160 245 50.3 3910×2894×3809
PYZ1750 1750 185 10-30 115-320 160 245 50.3 3910×2894×3809
PYD1750 1750 85 5-13 75-230 160 245 50.2 3910×2894×3809
PYB2200 2200 300 30-60 490-750 260-280 220 80 4620×3302×4470
PYZ2200 2200 230 10-30 200-580 260-280 220 80 4620×3302×4470
PYD2200 2200 100 5-15 120-340 260-280 220 81.4 4620×3302×4470
