Competitive Price Quad-band Simcom Sim808 Gps Gsm Gprs Module
US$ 8.5 - 11.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
simcom
Model Number:
sim808
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Selling Original Simcom ModuleNegotiableMOQ: 1 Piece -
Hot Selling Original Sim908 Simcom Gsm/gprs Gps ModuleNegotiableMOQ: 1 Piece
-
Hot Offer Quad-band GSM/GPRS Simcom Sim800c-ds Module With LCC PadsUS$ 5 - 6MOQ: 1 Piece
-
Simcom Gsm Gprs Module Sim900b (hot Selling and Original)NegotiableMOQ: 1 Piece
-
Hot Sale Drive IC Quad-Band Simcom Gsm/gprs Gps Module Sim808US$ 8.5 - 11.5MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
simcom
Model Number
sim808
Competitive price quad-band simcom sim808 gps gsm gprs module
What is Descriptions of our Competitive price quad-band simcom sim808 gps gsm gprs module ?
Overview
SIMCOM introduced new GSM + GPS + Bluetooth combo module. Please find attached datasheet & hardware design manual.
SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a SMT package will significantly save both time and costs for customers to develop GPS enabled applications. Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
What is Features of our Competitive price quad-band simcom sim808 gps gsm gprs module ?
Feature
General features
•Quad-band 850/900/1800/1900MHz |
•GPRS multi-slot class 12/10 |
•GPRS mobile station class B |
•Compliant to GSM phase 2/2+ |
– Class 4 (2 W @ 850/900MHz) |
– Class 1 (1 W @ 1800/1900MHz) |
•Bluetooth: compliant with 3.0+EDR |
•Dimensions: 24*24*2.6mm |
•Weight: 3.3g |
Other Information
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
- F. O. B. Price Order: 1450 INR
- Minimum Order Quantity: 1 Pieces
- Port of Dispatch: india
- Delivery Time: 2 to 3 weeks
What is Specifications of our Competitive price quad-band simcom sim808 gps gsm gprs module ?
Specification
| Specification for GPS |
Receiver type -22 tracking /66 acquisition -channel -GPS L1 C/A code Sensitivity -Tracking: -165 dBm -Cold starts : -147 dBm Time-To-First-Fix -Cold starts: 30s (typ.) -Hot starts: 1s (typ.) -Warm starts: 28s (typ.) Accuracy -Horizontal position : <2.5m CEP |
| Specifications for GPRS Data |
•GPRS class 12: max. 85.6 kbps (downlink/uplink) •PBCCH support •Coding schemes CS 1, 2, 3, 4 •PPP-stack •CSD up to 14.4 kbps •USSD |
| Specifications for SMS via GSM/GPRS |
•Point to point MO and MT •SMS cell broadcast •Text and PDU mode |
| Software features |
•0710 MUX protocol •Embedded TCP/UDP protocol •FTP/HTTP •MMS •DTMF •Jamming Detection •Audio Record •TTS (optional) •Embedded AT (optional) |
| Compatibility | •AT cellular command interface |
| Interfaces |
•68 SMT pads including •Analog audio interface •PCM interface(optional) •SPI interface (optional) •RTC backup •Serial interface •USB interface •Interface to external SIM 3V/1.8V •Keypad interface •GPIO •ADC •GSM Antenna pad •Bluetooth Antenna pad •GPS Antenna pad |
| Certifications(Plan) |
•CE •GCF •FCC •ROHS •REACH |

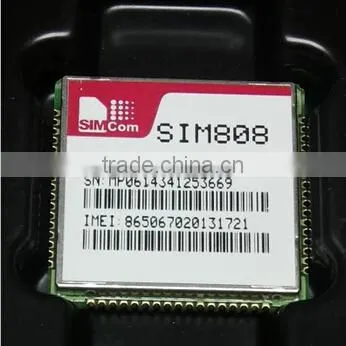

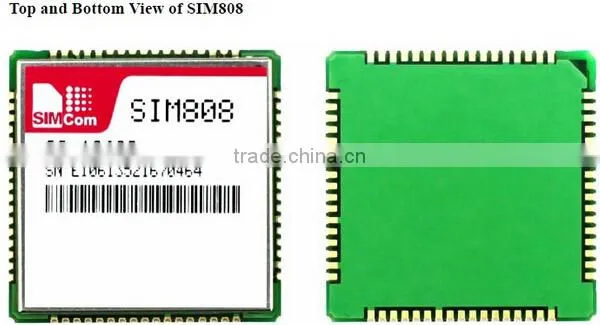

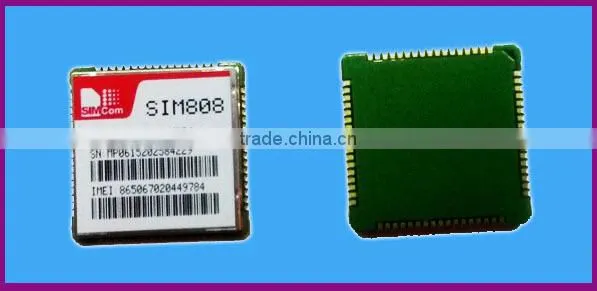

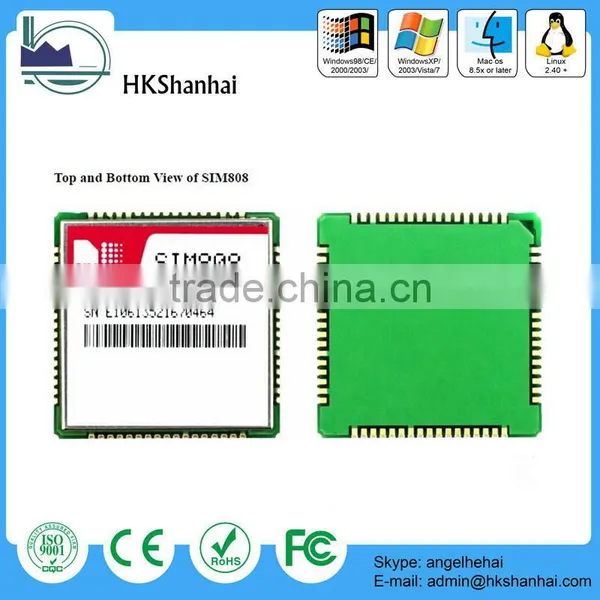

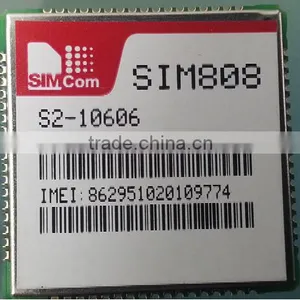

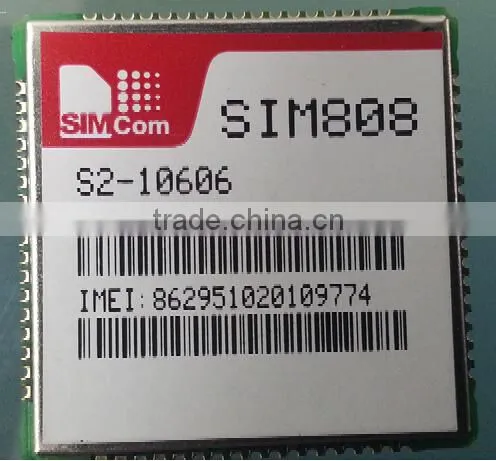

How is the pictures of our Competitive price quad-band simcom sim808 gps gsm gprs module ?
|
|
|
|
|
|
