Description:

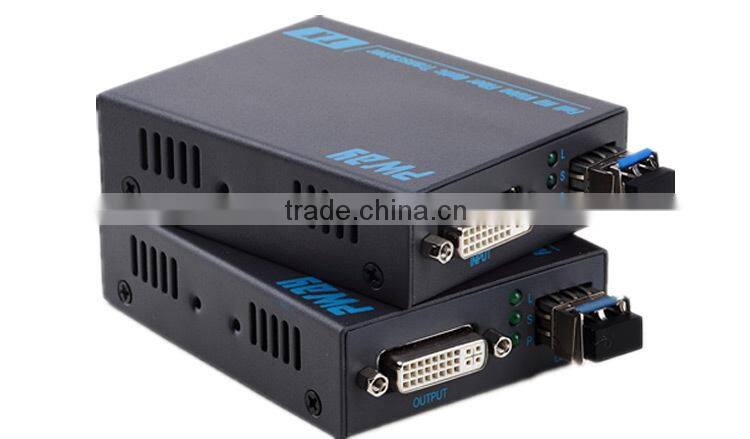

The PW-THF106D Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

• Transmits DVI video signals up to 2km-10km over one fiber optic cable;
• Support video resolution up to 1920*1200@60Hz;
• Support copy EDID, can match many kind display device;
• Compliance with DVI 1.0 and HDCP 1.2 standard;
• High compatibility, can auto-match source and display device;
• Built-in automatic adjustment system, make the image smooth, clear and stable;
• Built-in ESD protection system;
• Simple to install, plug and play.

The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Panel Descriptions:

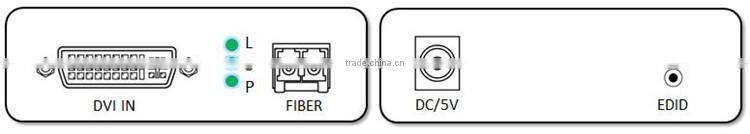

Transmitter:

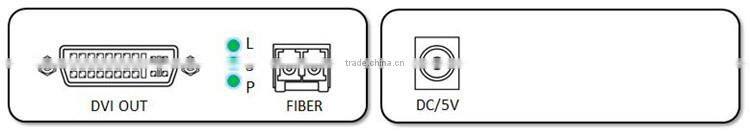

Receiver:

Installation:

1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,

2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3.Connect the HDMI output port of receiver to the display device with HDMI cable,
4.Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

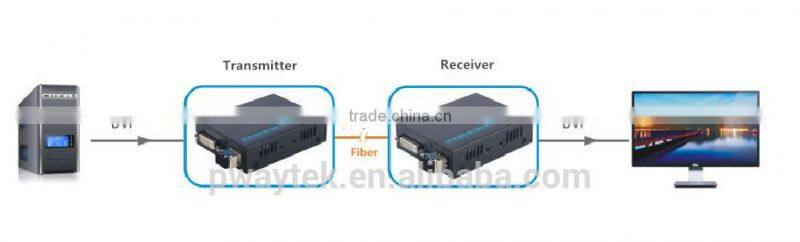

Application Diagrams:

Warranty:

Thank you very much for using our products.

1. The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
2. Free maintain won’t be given under the following circumstance:

• The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration;
• The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage;
• The product malfunction caused by not in accordance with the user manual operation;
• The malfunction and damaged caused by the other barriers(man-made factors or external device);

Any problems in the after-sales service, please contact us directly.
