Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > HDMI to AV+L/R Audio Converter PW-CH2A

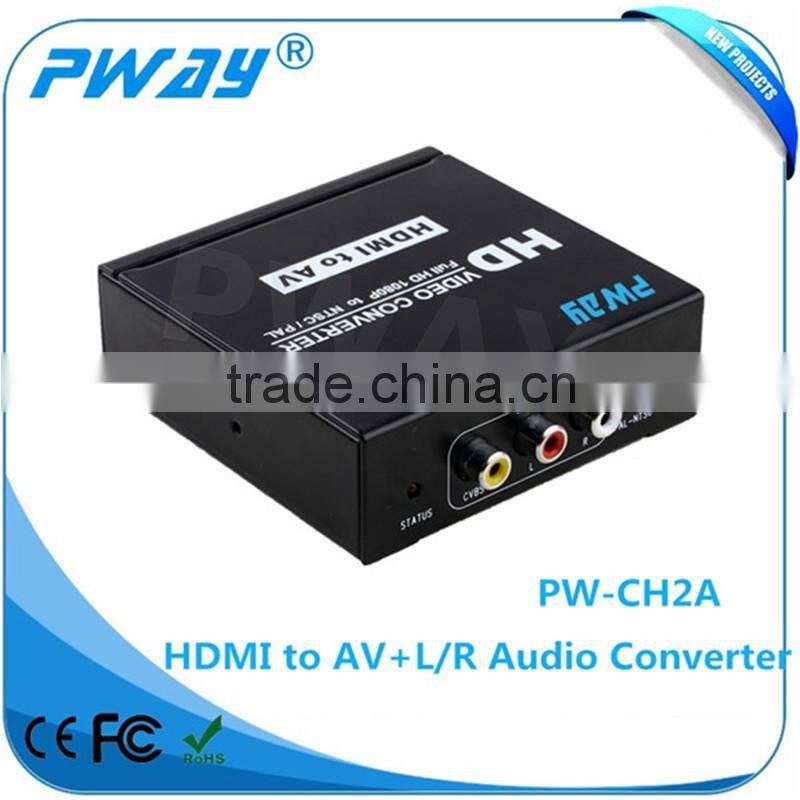

HDMI to AV+L/R Audio Converter PW-CH2A

Name: HDMI to AV+L/R Audio Converter PW-CH2A
Brand: Pway
SKU: 135021723
Availability: InStock

Shenzhen City Pin Wei Technology Limited

HDMI to AV+L/R Audio Converter PW-CH2A thumbnail-1

HDMI to AV+L/R Audio Converter PW-CH2A thumbnail-2

HDMI to AV+L/R Audio Converter PW-CH2A photo-1

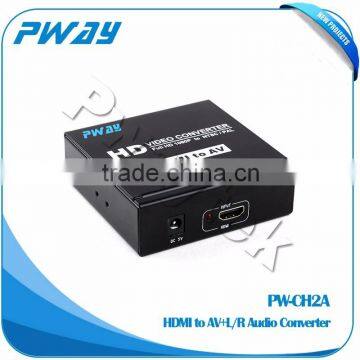

HDMI to AV+L/R Audio Converter PW-CH2A photo-2

US$ 1 - 40 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Pway

Model Number:

PW-CH2A

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Pway

Model Number PW-CH2A

Product Description

Feature

Install in seconds, no need of setting.
Auto detect the input resolution, no need of setting.
Supports convert complete HDMI into analog composite video and R/L audio.
Supports DVI input mode.
Supports highest video resolution up to 1080p.
Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
Supports 8bit per channel (24bit all channel) deep color.
Supports analog composite video output up to NTSC/480i or PAL/576i.
Supports uncompressed R/L Audio output.
Supports HDMI hot-plug.

Signal Inputs/Output
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Input HDMI / DVI	TV: 480i/576i/480p/576p/720p/1080i/1080p PC: 800x600p/1024x768p/1152x864p/1280x720p/ 1280x768p/1280x800p/1280x960p/1280x1024p/ 1360x768p/1366x768p/1440x900p/1440x1050p/ 1600x900p/1600x1050p/1600x1200p/1680x1050p 1920x1080p
Output Video / Resolution	CVBS: NTSC/480i or PAL/ 576i
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	1.65Gpbs/165MHz
Mechanical
Size	90 x 90 x 30 mm
Weight(Net)	615g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 95 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@1A
Power consumption (Max)	5W
Regulatory Approvals
Converter Unit	FCC,CE,
Power Supply	CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	1

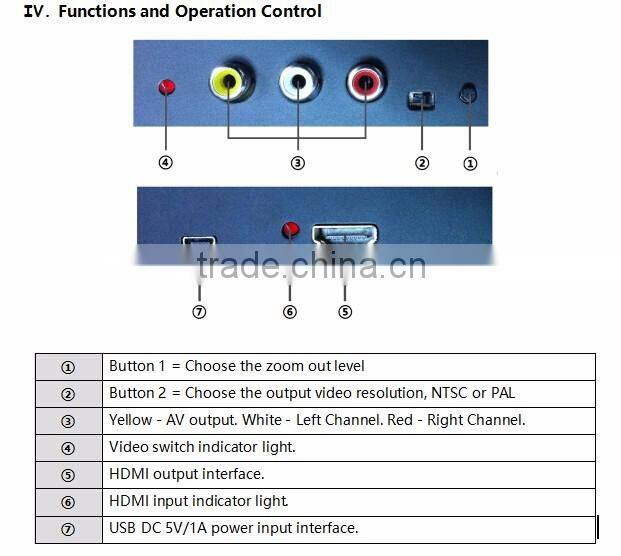

Instructions for use

Application Diagram
