Factory Price Newest Support EDID Copy Function Digital tv Transmitter
Factory price Newest support EDID copy function digital tv transmitter
Product Descriptions:

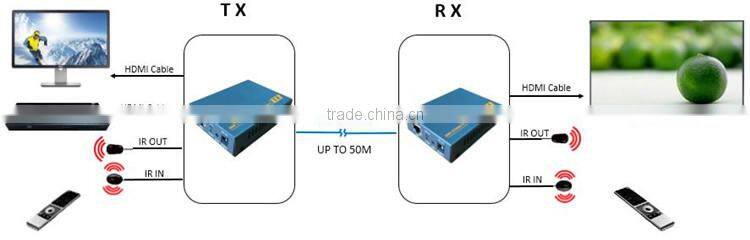

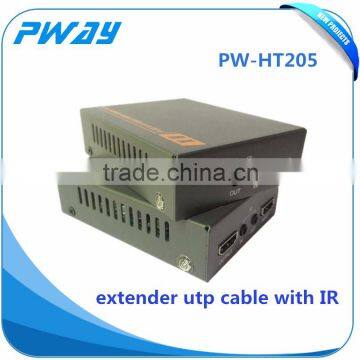

The PW-HT205 extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p and EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

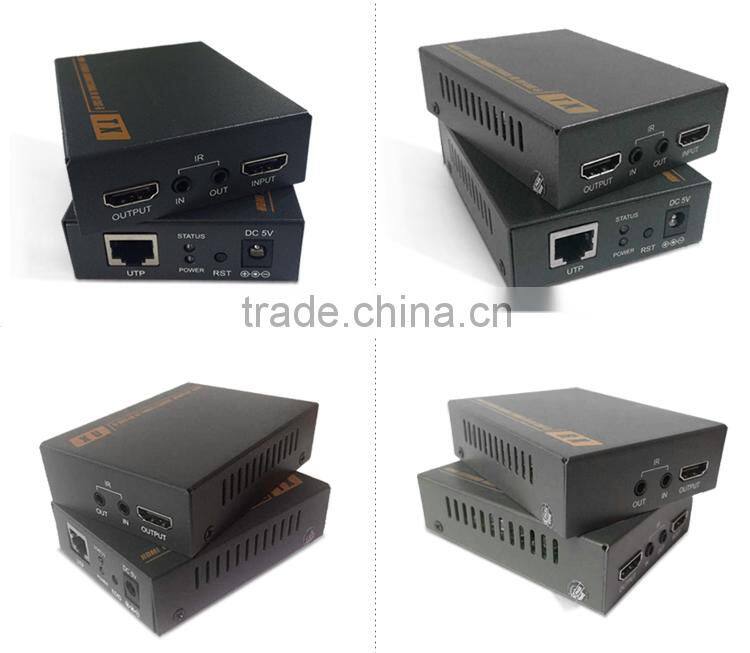

Product Pictures:
Product Features:
- Transmits HDMI video and audio signals up to 45m over a single CAT6 cable;
- Support video resolution up to 1920*1080P@60Hz;
- Support EDID copy function,can match many kinds of display device;
- Support bidirectional 38KHz IR, support 3D;
- Transmitter support one channel local output;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play.
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 65MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | 1920X1080P@60Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| Ethernet | Interface | RJ45 |
| Transmission distance | CAT6 45m | |
| Other | Power supply | The power adapter: DC 5V/1A |
| Power dissipation | MAX 3W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 94.5*73*26mm | |
| The warranty | 1 year free warranty | |

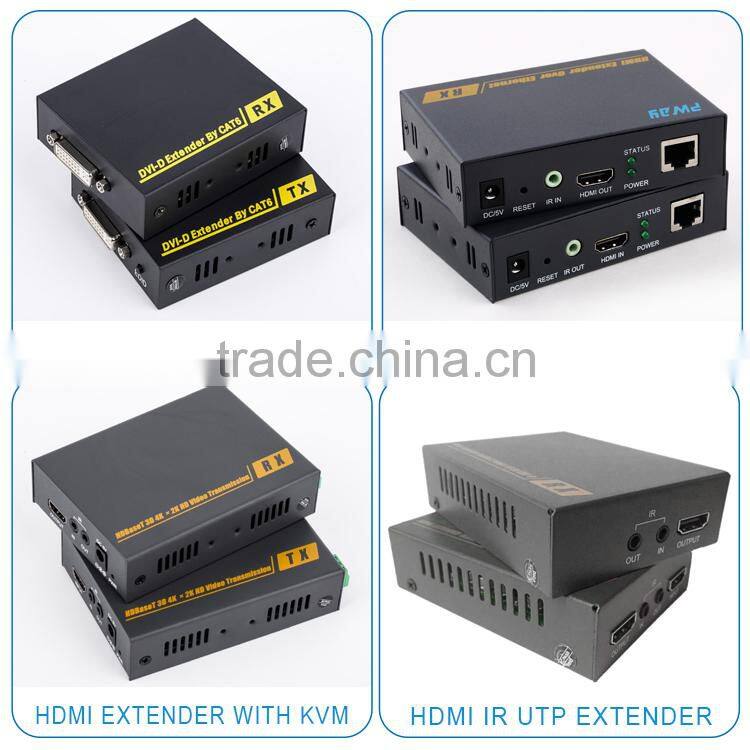

More Product:
