Feature
- Transmits HDMI video and audio signals up to 100m over a single CATx cable;
- Support video resolution up to 1920*1080P@60Hz;
- Transform one channel HDMI input to 4 channel Ethernet signal output;
- Support IR signal transmission;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | 1920X1080P@60Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| IR | Interface | 3.5mm earphone seat |
| Signal direction | Unidirectional | |
| Signal type | Digital | |
| IR frequency | 38kHz | |
| Ethernet | Interface | RJ45 |
| Transmission distance | CAT6---100m | |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 6W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 167*80*28mm | |
| The warranty | 1 year free warranty, life-long maintenance | |

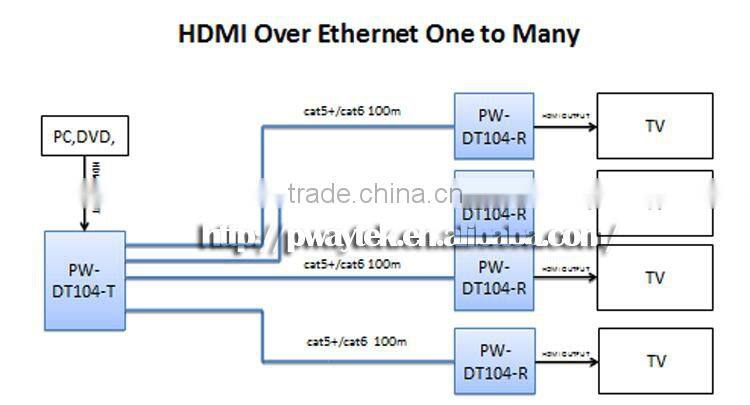

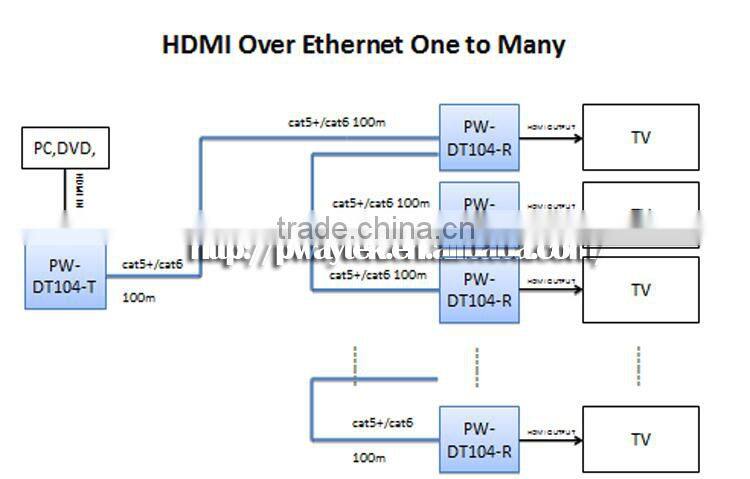

Application Diagram
