CAT6 cable IR control video media converter hdmi ethernet extender 60m
Introductions of ethernet media converter:
The PW-HT208 extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Specification of ethernet media converter:
- Transmits HDMI video and audio signals up to 60m over a single CAT6 cable;
- Support video resolution up to 1920*1080@60Hz, 3D signal;
- Support reverse direction IR signal transmission;
- Support copy EDID function, can auto-match many kind display device;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play.

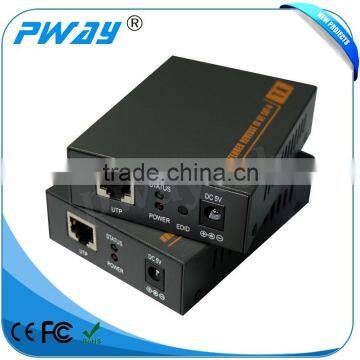

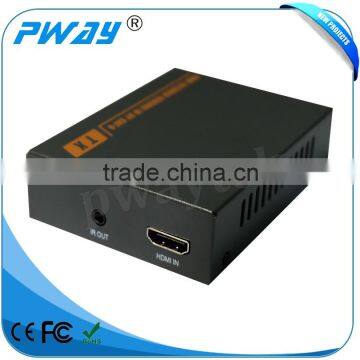

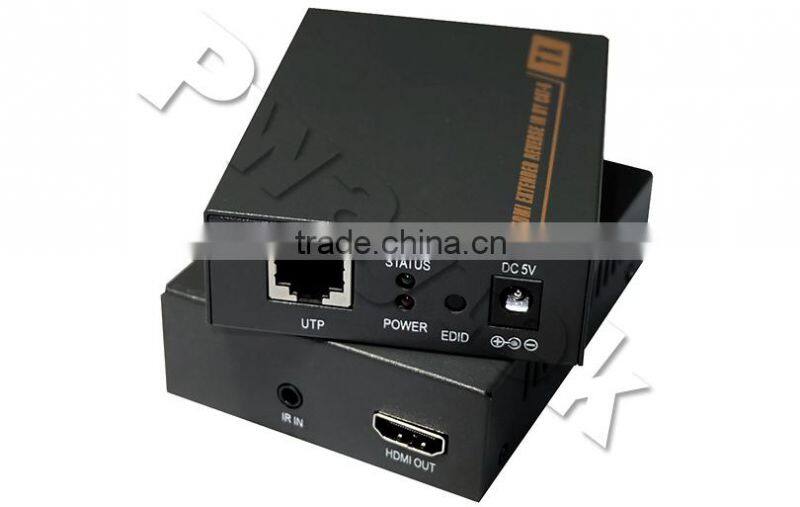

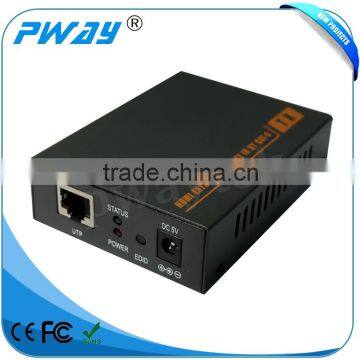

Pictures display of ethernet media converter:
Parameter | Description | |
Video | Standards | HDMI 1.3, HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum Data Rate | 6.75Gbps | |
Resolution | Max: 1920X1080@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
IR | Interface | 3.5mm Earphone Seat |
Signal Direction | Reverse direction | |
Signal Type | Digital | |
IR Frequency | 20k-60kHz | |
UTP | Interface | RJ45 |
Transmission Distance | CAT6 Max: 60m | |
Other | Power Supply | The power adapter: DC 5V/1A |
Power dissipation | Max: 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 94.5*71*26mm | |
The warranty | 1 Year Free Warranty | |
Step 1: Packed in Carton.
Step 2: Small package via courier/Air way, like DHL, FEDEX, UPS, TNT . Others transport by Sea, such as bulk order with heavy and big volume.
