Support IR signal transmission hdmi extender with 40m or cat6e rj45 cable hdmi extender ir
Product Introductions:

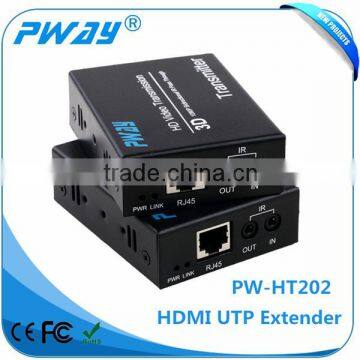

The PW-HT202 extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up
to 1080p and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of
high resolution with high quality by its good stability and powerful security.
Specification of product :

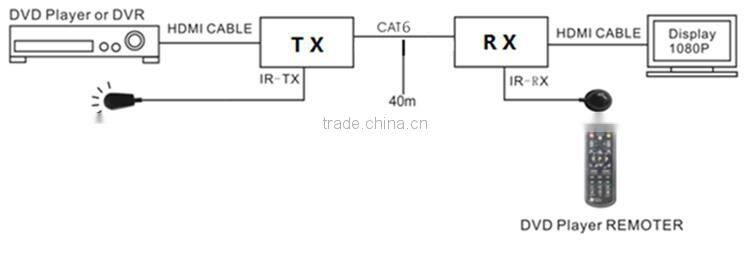

- Transmits HDMI video and audio signals up to 40m over a single CAT6 cable;
- Support video resolution up to 1920*1080P@60Hz, 3D signal;
- Support IR signal transmission;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | 1920X1080P@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
IR | Interface | 3.5mm earphone seat |
Signal direction | Bidirectional | |
Signal type | Digital | |
IR frequency | 20k-60kHz | |
Ethernet | Interface | RJ45 |
Transmission distance | CAT6---40m | |
Other | Power supply | The power adapter: DC 5V/1A |
Power dissipation | MAX 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 105*76*27mm | |
The warranty | 1 year free warranty | |

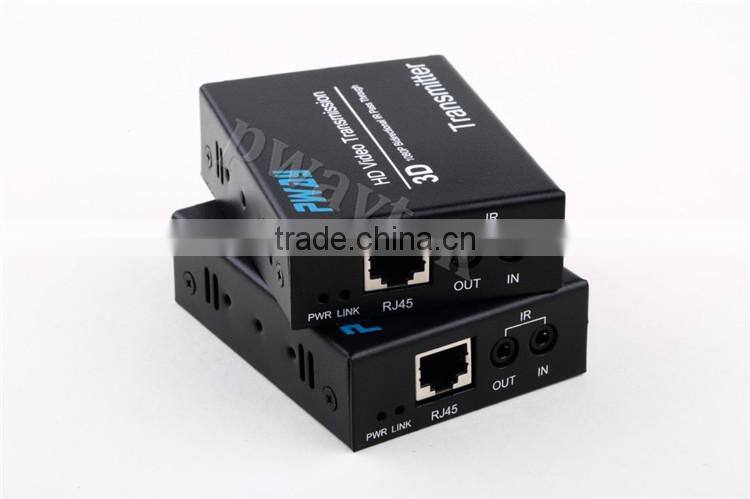

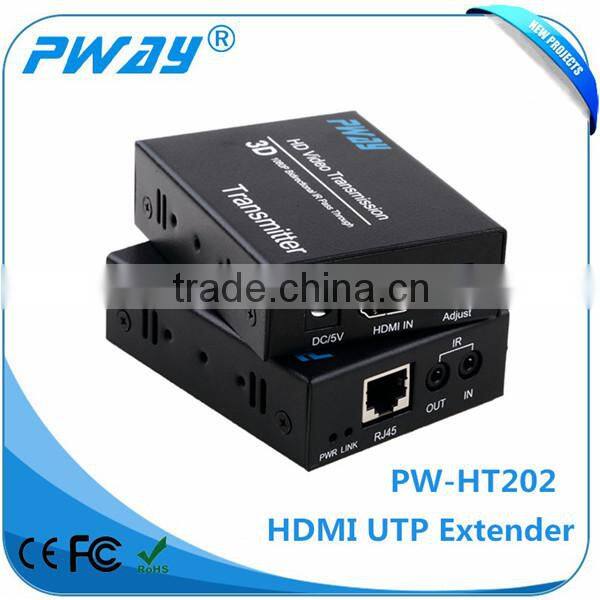

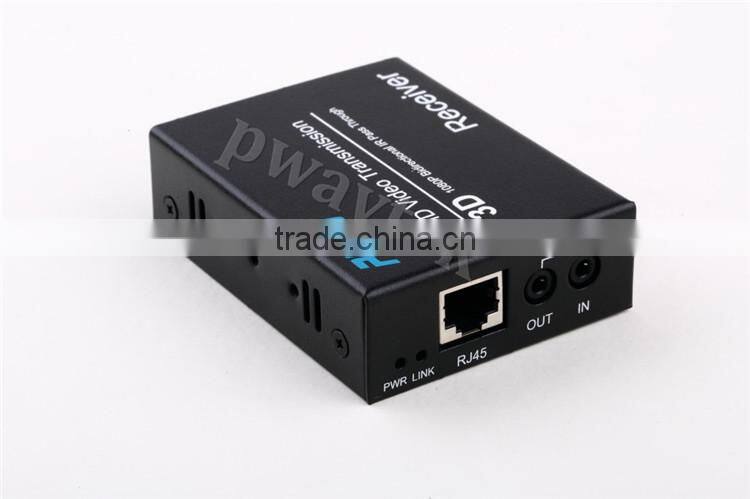

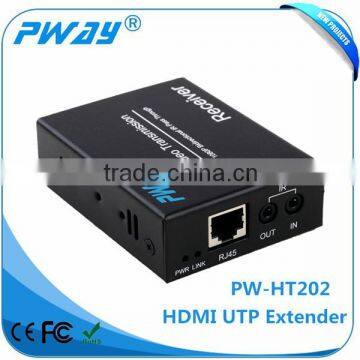

Product Pictures display:
| After-sales service |
| If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time. |
| Customer service |
| Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication. |
| Warranty : |
|

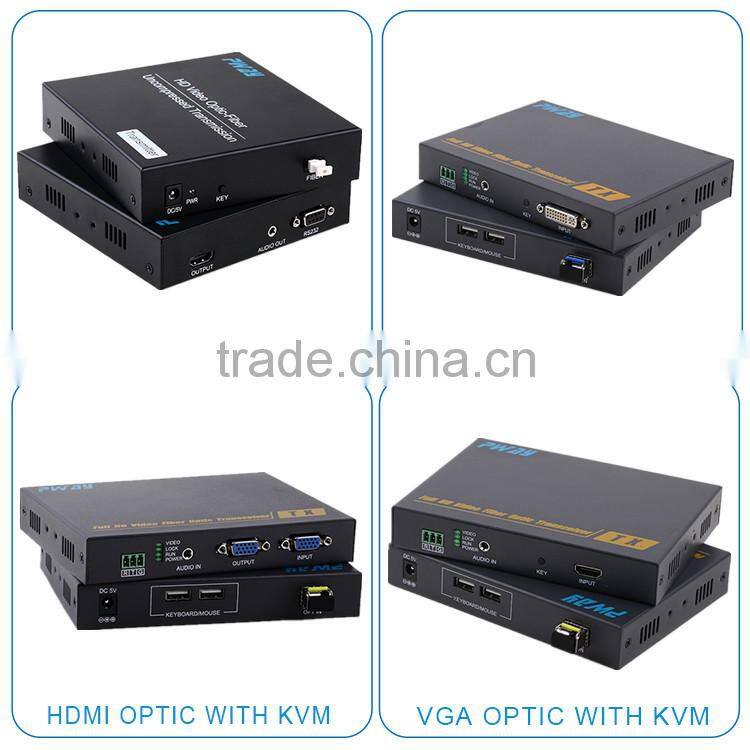

Other products:
