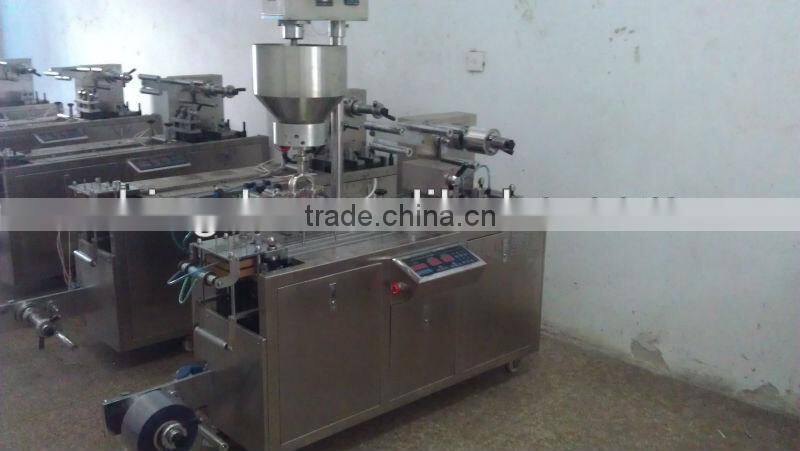

Factory Price Mini Automatic Honey Packing Machine

FOB Price

US$ 5,000 - 10,000 / Set

1 Set(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Food, Commodity
Packaging Type	Other, honey	Packaging Material	Plastic, Paper
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V/380V 50HZ	Power	0.75KW
Place of Origin	Zhejiang, China	Brand Name	JINDE
Model Number	JD-80P	Dimension(LWH)	1600X560X1450mm
Weight	450kg	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

automatic honey packing machine
1. CE, GMP
2. PLC control
3. Liquid packing machine for butter and jam
4. Cheap

automatic honey packing machine

Usuage:

1. This machine is suitable for packing the liquid like chocolate, butter and jam etc.

2. This machine can be linked to produce with boxing machine and pillow packing machine

Working process:

PVC roll——PVC heating——PVC forming —— Automatic cooling —— Automatic liquid feeding —— PE/ALU foil/paper card sealing —— Printing batch —— Cutting —— Products output

Feature:

1. All materials contact parts are in S.S.316L, The main body of the machine is Fabricated out of SS 304, Meet the GMP standard.

2. With automatic liquid feeder.

3. Board-shape mould, forming with air pressure, being suitable for standard of any former.

4. Compact and simple structure.

Main Technical Parameter

Punch frequency	10-33times /min
Packing efficiency	2400 plate/h
Max forming area and depth	70X100X15mm(Depth can be designed according to customer requirements)
Standards Board	80X57mm(Can be designed according to customer requirements)
Standard adjustable range of stroke	30-80mm(Can be designed according to customer requirements)
Air pressure	0.6-0.8Mpa
Power supply	380V/220V 50Hz 3.8Kw
Main motor power	0.75Kw
PVC	0.15-0.5X80mm
PTP aluminium foil	0.02-0.035X80mm
Dialyzingpaper	50-100gX80mm
Cooling	Tap water or recycled wate
Overall dimension	1600X560X1450mm(LXWXH)
Machine weight	450Kg
Noise indicators	≤75dBA

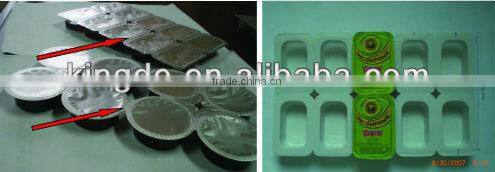

Samples:
