Specifications
paper cup making machineHigh quality,
High efficiency,
Intelligent system,
Save energy
paper cup making machine
JBZ-B12 Automatic SINGLE PE Paper Cup Machine
Product Description
Single PE coated paper cup machine is a automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding , cup-fan-wall sealing, oiling, bottom punching, heating, knuring,curling, cup discharge and cup counter.
Main Parameter:
Model |
JBZ-B12 Automatic SINGLE PE Paper Cup Machine |
Paper Cup Size |
3oz-12oz (mold exchangeable) 50ml~330ml, Or other require size |
Raw Material |
One-side PE(polyethylene) film coated/laminated paper |
Suitable Paper Weight |
135gsm--320 GSM (Recommend 170--280 GSM) |
Rated Productivity |
45-55 pcs/min |
Total Power |
5KW |
Power Source |
220V/380V 50Hz or other required |
N.W |
1500Kg |
Total Weight |
1700Kg |
Package Size(L * W * H) |
2800 * 1350 * 1760 mm(Less occupied than JBZ-A series) |
HS Code |
8441309000 |
Packing |
Seaworthy Wooden Case |
Working Air Source |
0.4Mpa, Air Out-put:0.6 m3/minute |
Compare with JBZ-A |
1, Control Panel on the machines, JBZ-A have independent control box 2, Less occupied than JBZ-A 3, More competitive price than JBZ-A |

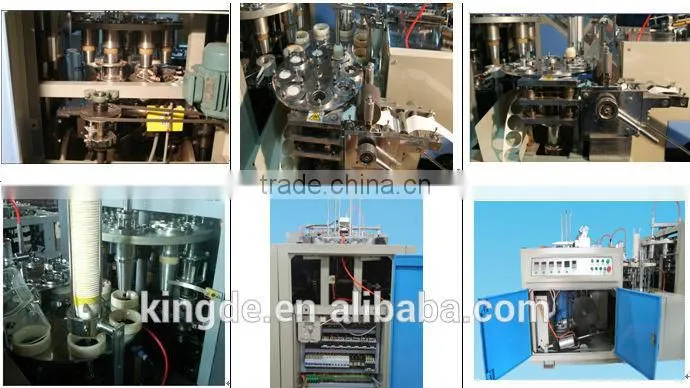

Some parts of our machine

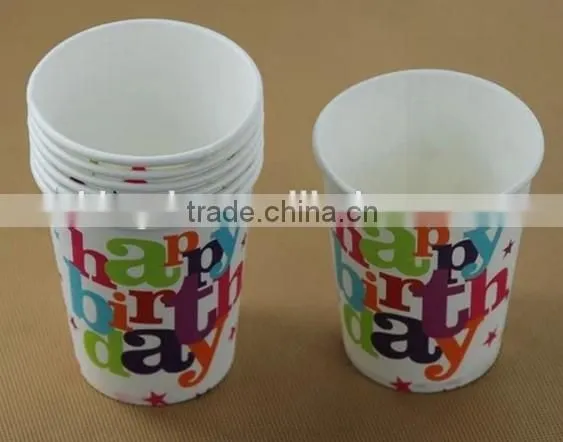

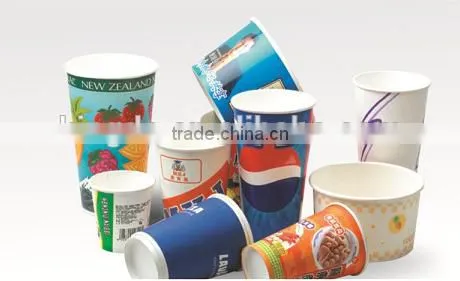

Samples
