Specifications
paper cutting machine1.A4 A3 and A1 etc
2.Rotary ,High capacity
3.Cut 320reams-720reams/hour
4.can be 1 ,2 or 4 roll

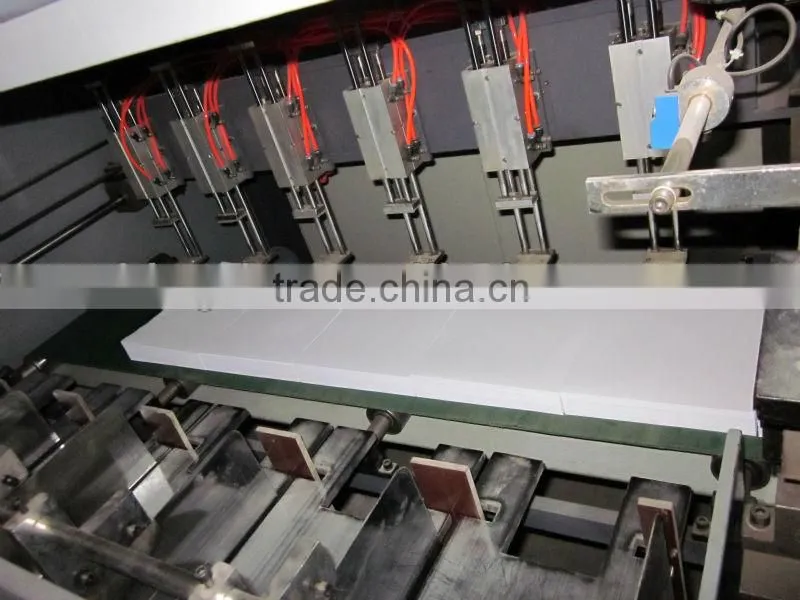

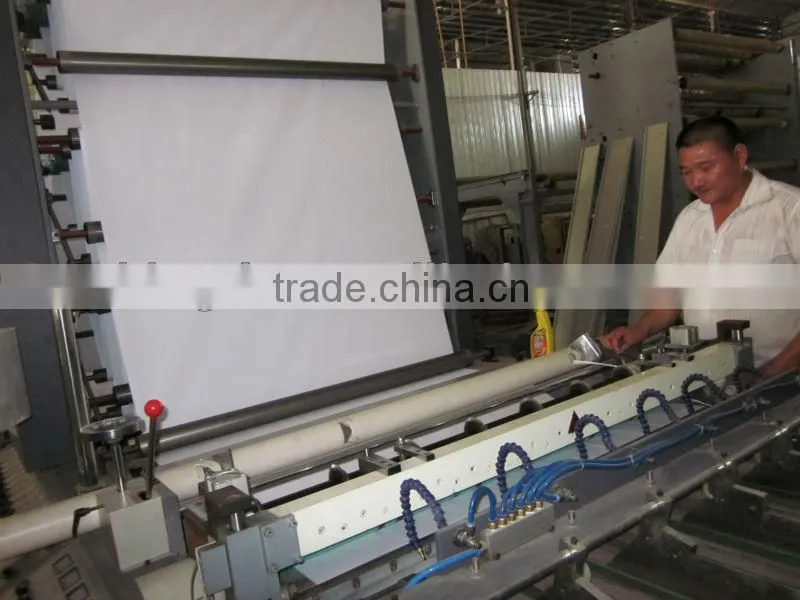

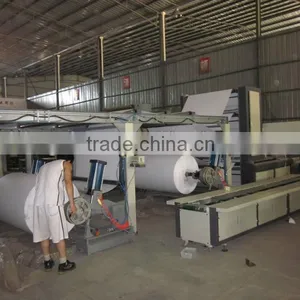

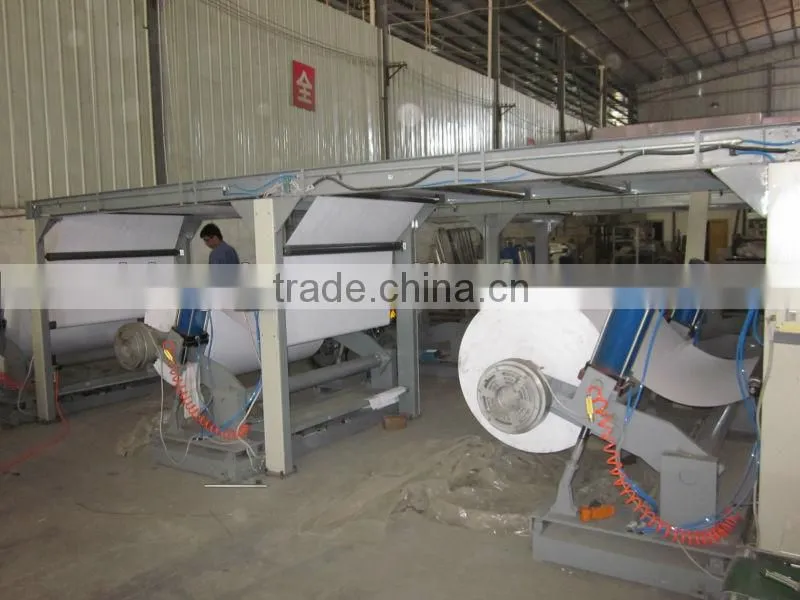

High Speed Fully Automatic Rotary A3/A4 paper cutting machine
Brief Introduction:
This Machine use the paper roll(length=1300mm) as its raw materia, can directly cutting the roll in to A4 copy paper.
Can automatic collecting and trim the A4 paper, and stack them in a ream (a ream=500 pieces of A4 paper).
The productivity of this machine is: 320 reams/hour.
This machine hold four paper rolls. Also be called 4-rolls A4 paper cutting machine.
Main Teachnical Data:
| Model | 1100D(1 or 2 or 4 roll ) | 1400D(1or2 or 4roll |
| Max.width of cutting | 1100mm | 1400mm |
| Max diameter of material | Φ1400mm | Φ1400mm |
| Min.width of cutting | 50mm | 50mm |
| Length of cutting | 20-400mm | 20-400mm |
| Speed | 10-140times/min | 10-140times/min |
| Precision | ±0.2mm | ±0.2mm |
| Total Power | 9.5kw | 11kw |
| Weight | 3500kg | 4000kg |
| Overall dimension(LXWXH) | 8600x1500x2000mm | 8600x1800x2000mm |
Feature:
This A4 paper sheeting machine ( A4 paper sheeter )is suitable for cutting big rolling packaging materials such as paper,paper-plastic,multicolor laminated material,etc.
1. It adopts PLC touch screen control, servo motorfor controlling constant-length cutting.
2.it with slitting knives to slitting then cut to have different sizes of paper like a4,a3,a2,a1 or any other sizes .width and length can be both adjustable
3. It adopts pneumatic,photoelectric sensor for controlling transminssion system,with photo,electric,gas together,it has the functions of easy operation,high precision,good stability,low noise
4. This machine has the functions of the frequency converter timing device,auto-matic counting,stop working by alarm magnetic powder tension control,can be cutted vertically,adopt blower to get rid of waste.
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
