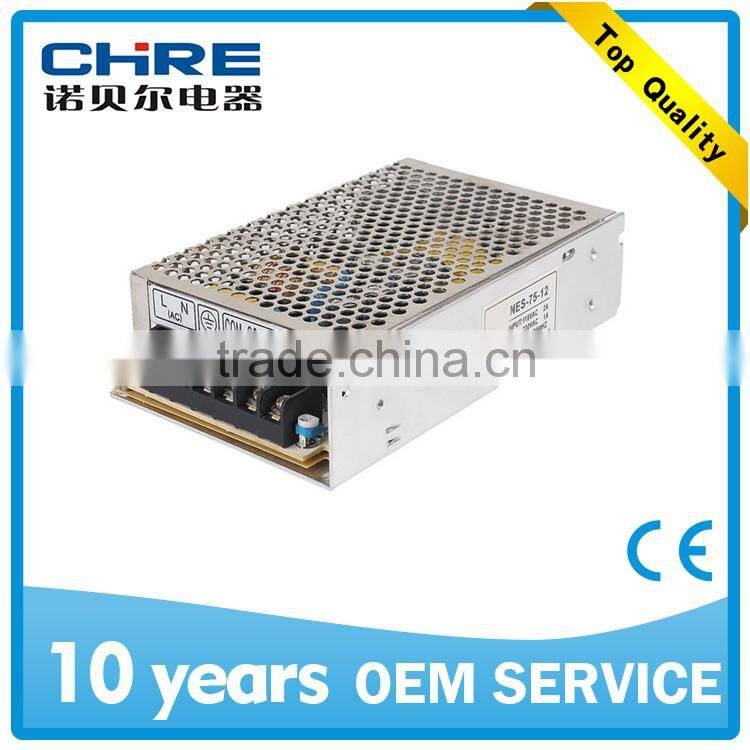

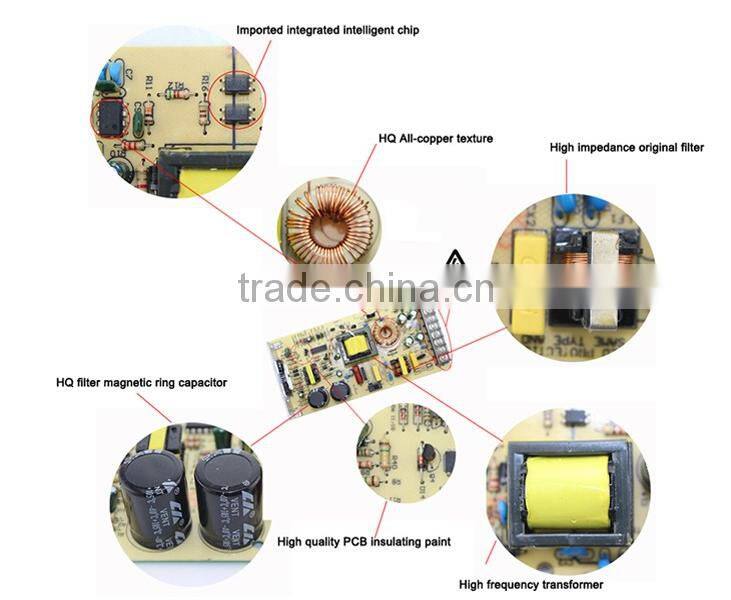

NOBEL CE&CB 75W 12V Single SMPS NES-75-12

MODEL

NES-75-12

OUTPUT

DC VOLTAGE

12V

CURRENT RANGE

0~6.2A

RATED CURRENT

6.2A

RATED POWER

74.4W

RIPPLE & NOISE (max.) Note.2

120mVp-p

VOLTAGE ADJ. RANGE

10.8~13.2V

VOLTAGE TOLERANCE Note.3

±1.0%

LINE REGULATION

±0.5%

LOAD REGULATION

±0.5%

SETUP, RISE TIME Note.5

500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load

HOLD UP TIME (Typ.)

50ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE Note.5

85 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

82%

AC CURRENT (Typ.)

1.5A/115VAC 0.9A/230VAC

INRUSH CURRENT (Typ.)

COLD START 45A

LEAKAGE CURRENT

<2mA / 240VAC

PROTECTION

OVERLOAD

110 ~ 150% rated output power  Protection type:Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

13.8 ~ 16.2V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.

-20 ~ +60°C (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85°C , 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C (0 ~ 45°C )

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY &

EMC

SAFETY STANDARDS

UL60950-1, CB(IEC60950-1),CCC GB4943.1:2011 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C / 70%RH

EMC EMISSION

Compliance to EN55022 (CISPR22) Class B,EN61000-3-2.-3

EMS IMMUNITY

Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A

OTHERS

MTBF

378.2Khrs min. MIL-HDBK-217F (25°C )

DIMENSION

159*97*38mm (L*W*H)

PACKING

0.52Kg; 30pcs/16.6Kg/0.97CUFT
